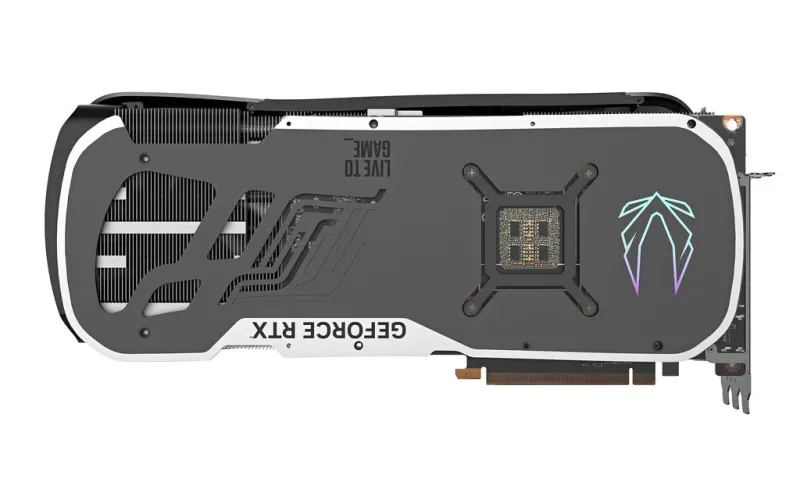

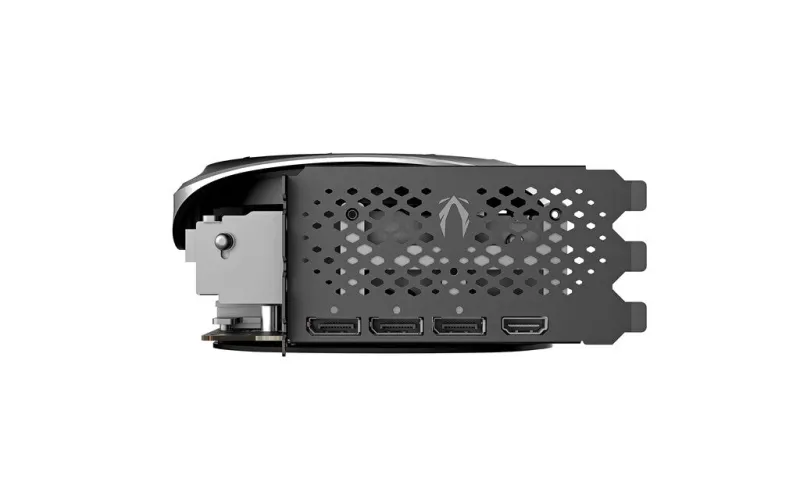

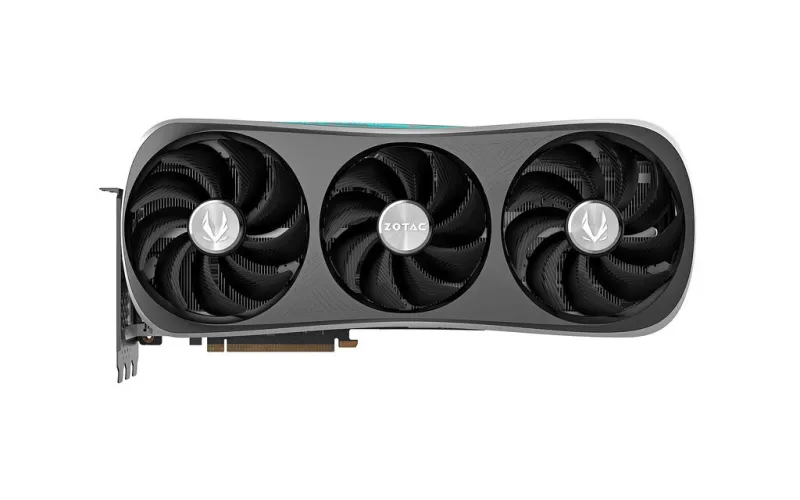

Zotac GAMING GeForce RTX 4090 Trinity NVIDIA 24 GB GDDR6X
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 2X AI performance
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Strong Performance
- IceStorm 3.0 Advanced Cooling
- FREEZE Fan Stop, Active Fan Control, Dual BIOS
- SPECTRA 2.0 RGB Lighting (compatible with external LED strip)
- Metal Backplate
- Bundled with GPU Support Bracket
- All-new FireStorm Utility
Leveraging an all-new aerodynamic inspired design, the ZOTAC GAMING GeForce RTX 4090 Trinity OC utilizes the world’s most advanced gaming GPU powered by the NVIDIA Ada Lovelace architecture. Using cutting-edge cooling technologies derived from the flagship model, the Trinity OC packs the punch to offer gamers the needed blistering FPS in the latest titles.
| Processor |
| Maximum displays per videocard |
4 |
| Processor boost clock speed (OC mode) |
2535 MHz |
| Processor boost clock speed |
2535 MHz |
| Processor frequency |
2230 MHz |
| CUDA cores |
16384 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 4090 |
| Graphics processor family |
NVIDIA |
| Memory |
| Memory bandwidth (max) |
1008 GB/s |
| Data transfer rate |
21 Gbit/s |
| Memory bus |
384 bit |
| Graphics card memory type |
GDDR6X |
| Discrete graphics card memory |
24 GB |
| Ports & interfaces |
| DisplayPort version |
1.4a |
| HDMI version |
2.1 |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express x16 4.0 |
| Performance |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| OpenGL version |
4.6 |
| DirectX version |
12.0 |
| TV tuner integrated |
No |
| Design |
| Product colour |
Black |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Number of slots |
3.5 |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of fans |
3 fan(s) |
| Cooling technology |
Zotac IceStorm 3.0 |
| Cooling type |
Active |
| Power |
| Supplementary power connectors |
4x 8-pin |
| Power consumption (typical) |
450 W |
| Minimum system power supply |
1000 W |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Weight & dimensions |
| Height |
150.1 mm |
| Depth |
71.4 mm |
| Length |
356.1 mm |
| Packaging data |
| Package type |
Box |
| Package height |
440 mm |
| Package depth |
120 mm |
| Package width |
282 mm |
| Packaging content |
| Manual |
Yes |
