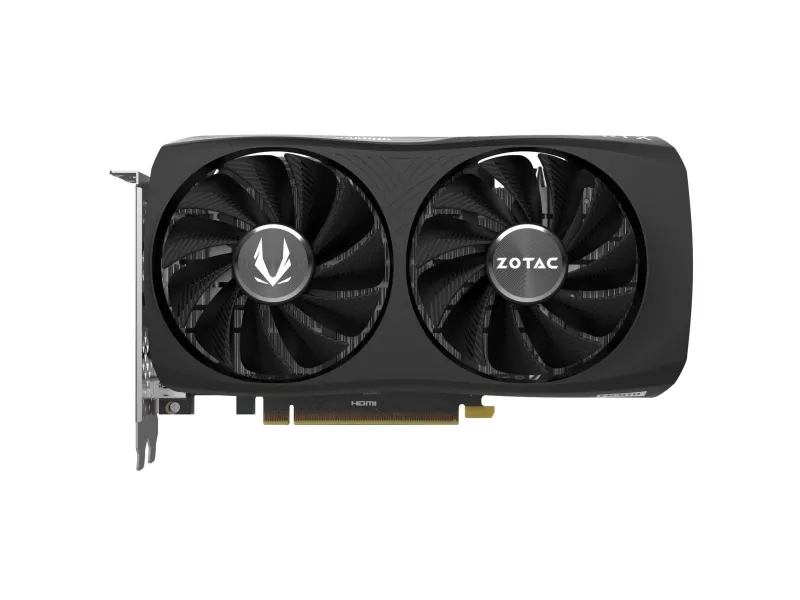

Zotac GAMING GeForce RTX 4060 Twin Edge NVIDIA 8 GB GDDR6
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- Compact design with 2 Slot footprint

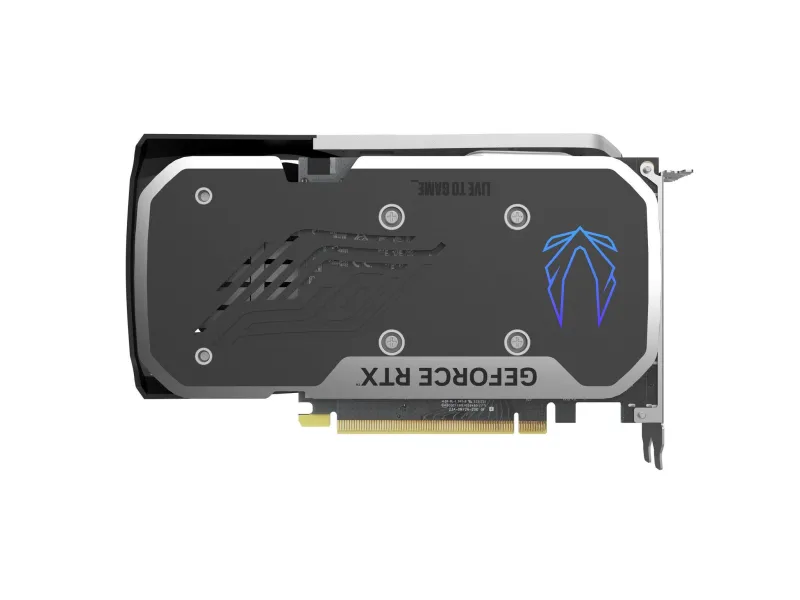

- Metal Backplate
- Freeze Fan Stop
- 221.4 mm / 8.7 in length
- 8-pin PCIe power connector
- All-new FireStorm Utility
The ZOTAC GAMING GeForce RTX 4060 8GB Twin Edge is a compact and capable graphics card, featuring the NVIDIA Ada Lovelace architecture and an aerodynamic-inspired design. With a reduced 2 slot size, it’s an excellent choice for those who want to build a SFF gaming PC capable of smooth framerate and 1080p performance in the latest title releases.
| Processor |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| Processor boost clock speed |
2460 MHz |
| CUDA cores |
3072 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 4060 |
| Graphics processor family |
NVIDIA |
| Memory |
| Data transfer rate |
17 Gbit/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |

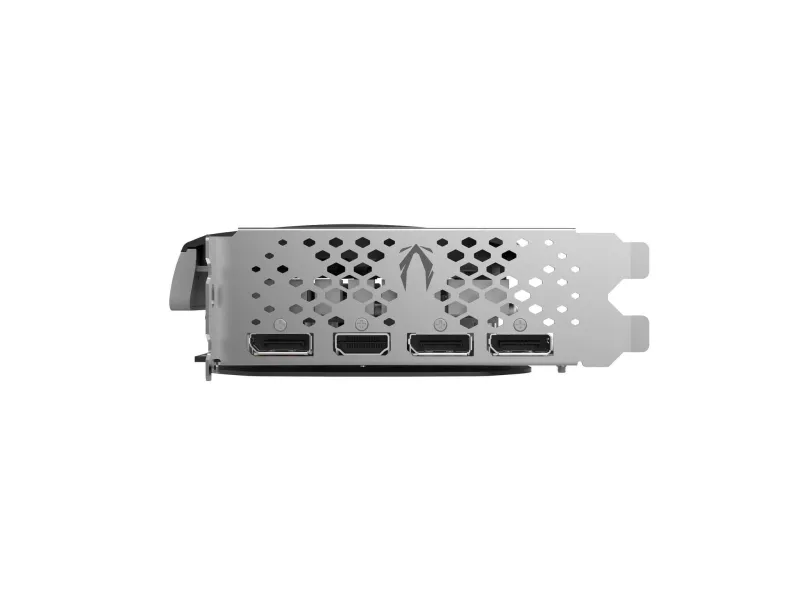

| Ports & interfaces |
| DisplayPort version |
1.4a |
| HDMI version |
2.1a |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express x8 4.0 |
| Performance |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP version |
2.3 |
| HDCP |
Yes |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
| Product colour |
Black |
| Number of slots |
2 |
| Number of fans |
2 fan(s) |
| Cooling type |
Active |
| Power |
| Supplementary power connectors |
1x 8-pin |
| Power consumption (max) |
115 W |
| Minimum system power supply |
500 W |
| System requirements |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Weight & dimensions |
| Height |
122.7 mm |
| Depth |
43.1 mm |
| Length |
221.4 mm |
| Packaging data |
| Package type |
Box |
| Package height |
283 mm |
| Package depth |
83 mm |
| Package width |
218 mm |
| Packaging content |
| Manual |
Yes |
