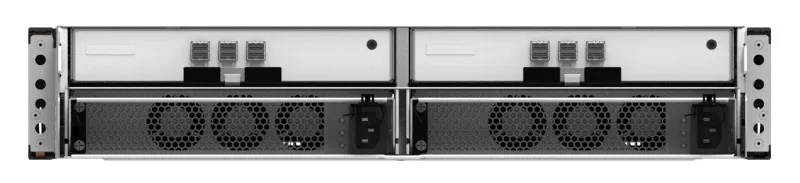

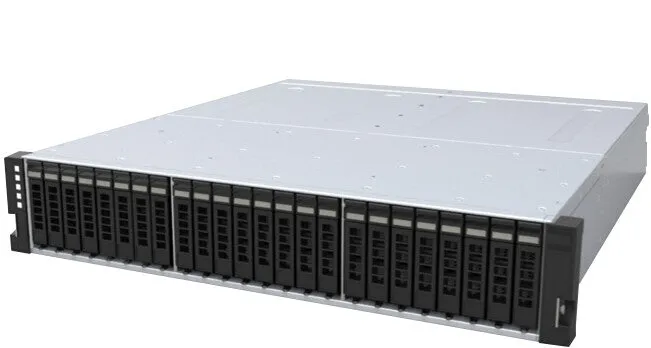

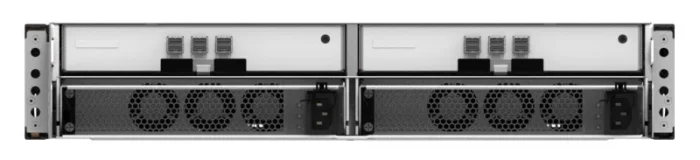

Western Digital 1ES0110 disk array 92.16 TB Rack (2U) Silver
- Small & Medium Business
- Rack (2U) Silver
- SSD Storage drives installed 92.16 TB
- 600 W
The 2U24 Flash Storage Platform is a key element of next generation Software-Defined Storage (SDS) systems. It offers performance advantages as well as flexibility to improve compute-to-capacity ratio by decoupling available storage from CPU resources.
Flash Performance
Depending on the type of SSDs and the number of drives installed, the 2U24 Platform can be configured to deliver the performance you need.
Designed for Enterprise and the Cloud
The 2U24 Flash Storage Platform addresses the demanding storage needs of large enterprises and Cloud service providers. With performance of up to 4.7M IOPS, 23 GB/s and less than 1ms latency, the Platform is the ideal solution for accelerating enterprise workloads such as Database, Virtualization and Scale-Out configurations. The flash platform delivers up to 184TB storage capacity, can be connected to up to six hosts via the 12Gb/s SAS3 interface, and offers enterprise-specific features including:
– Enterprise-class High Availability: hot swappable SSDs, IO Modules, and PSUs
– Fully upgradeable: upgradeable firmware enables drive technology and capacity updates without impacting applications
| Storage | |
|---|---|
| Data transfer rate | 12 Gbit/s |
| Storage drive size | 2.5″ |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive capacity | 3.84 TB |
| Maximum supported storage capacity | 183.32 TB |
| Number of storage drives supported | 24 |
| Supported storage drive types | SSD |
| Total installed storage capacity | 92.16 TB |
| Number of storage drives installed | 24 |
| Installed storage drive type | SSD |
| Storage drives installed | Yes |
| Ports & interfaces | |
|---|---|
| Mini-SAS host port | Yes |
| Design | |
|---|---|
| Redundant fans support | Yes |
| Product colour | Silver |
| Chassis type | Rack (2U) |
| Device class | Small & Medium Business |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 90-264 V |
| Power supply unit (PSU) capacity | 600 W |
| Weight & dimensions | |
|---|---|
| Weight | 23.7 kg |
| Height | 87.4 mm |
| Depth | 536 mm |
| Width | 446 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | -40 – 60% |
| Operating temperature (T-T) | 5 – 40 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717020 |
