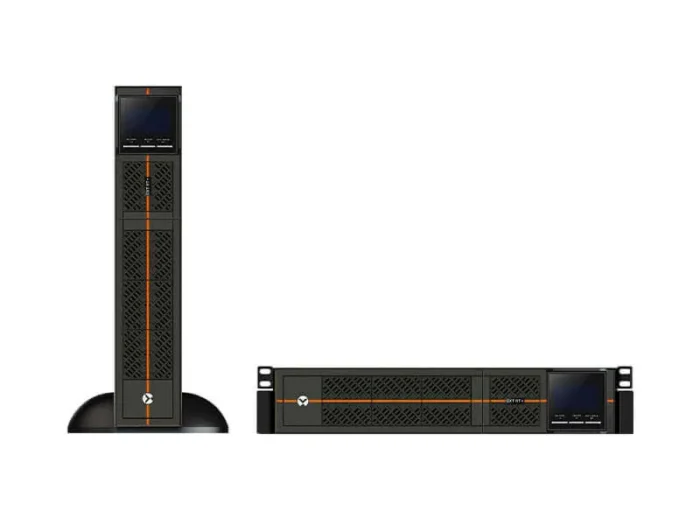

Vertiv Liebert GXTRT-3000IRT2UXL uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 7 AC outlet(s)
- Has high output power factor (0.9) which means more usable power that allows more connected loads
- This compact design UPS is ideal for space-constrained or edge of network deployments
- Reliable, easy to manage power protection with automatic bypass feature
- High efficiency ECO mode of up to 95% helps to achieve energy savings and a lower TCO

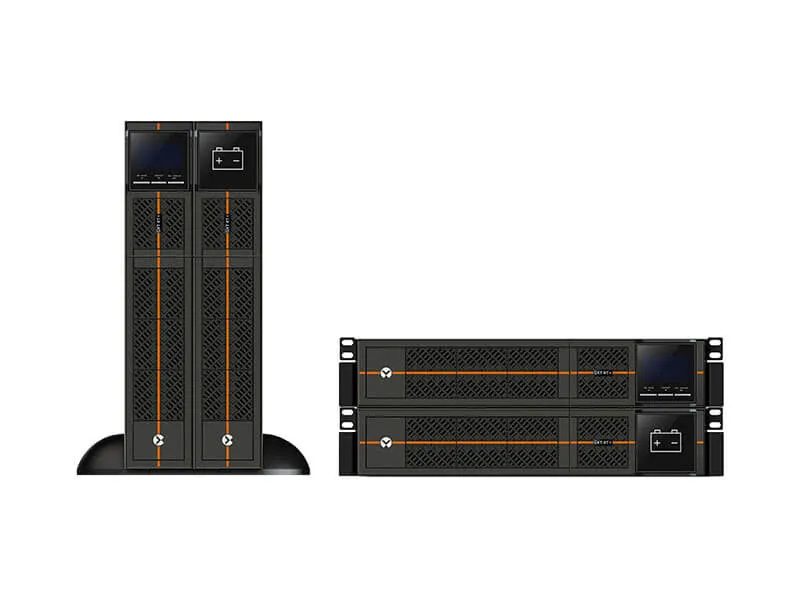

- Connected modules allows scalable runtime during failure of main utility power
The Vertiv Liebert GXT RT+ Uninterruptible Power Supply (UPS) (GXTRT-3000IRT2UXL) is an online double conversion solution which delivers the high-performance protection you need. With a 3kVA power capacity, this UPS offers power protection in an affordable, efficient system with deployment and operation flexibility. The high 0.9 power factor of this single-phase UPS enables continuous, reliable power to more connected devices from a wide range of input voltages while being energy efficient and delivering maximum value. It also offers an optional tower or rack mount to meet varying installation requirements. The automatic bypass, allows the load to transfer to the mains, in case of an overload or internal fault, ensuring safe power protection to equipment, deployed at the edge/networks or in space-constrained facilities. The high efficiency ECO mode of up to 95% helps to achieve energy savings and a lower TCO.
| Features |
| Audible alarm(s) |
Yes |
| Power protection features |
Overload |
| Noise level |
55 dB |
| Emergency Power Off (EPO) |
No |
| Output power factor |
0.9 |
| Input power factor |
0.9 |
| Power factor |
0.9 |
| Efficiency (On-line mode) |
90% |
| Efficiency |
90% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output voltage regulation |
1% |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Input frequency |
40 – 70 Hz |
| Input operation voltage (max) |
288 V |
| Input operation voltage (min) |
179 V |
| Waveform |
Pure sine |
| Output power |
2700 W |
| Output power capacity |
3 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| USB port |
Yes |

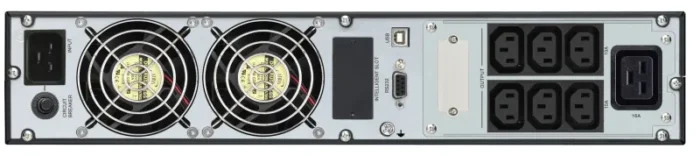

| AC outlets quantity |
7 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Hot-swap battery |
Yes |
| Typical backup time at half load |
11 min |
| Typical backup time at full load |
3.3 min |
| Number of batteries supported |
6 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Rack capacity |
2U |
| Product colour |
Black |
| Form factor |
Rackmount |
| Operational conditions |
| Operating altitude |
0 – 2000 m |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 95% |
| Storage temperature (T-T) |
-20 – 50 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| General |
| Product family |
Liebert |
| Safety regulation & standards |
| Safety |
CE |
| Certificates |
| Certification |
CE Mark; IEC/EN 62040-1: 2014, IEC/EN 62040-2:2006+AC:2006 Class A, EN 61000-4-5: 2005 Class 2 L-N, Class 3 L-G, ISTA 2A |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
27.6 kg |
| Height |
88 mm |
| Depth |
632 mm |
| Width |
438 mm |
| Packaging data |
| Package weight |
31.2 kg |
| Package height |
600 mm |
| Package depth |
240 mm |
| Package width |
760 mm |
| Logistics data |
| Harmonized System (HS) code |
85078000 |
