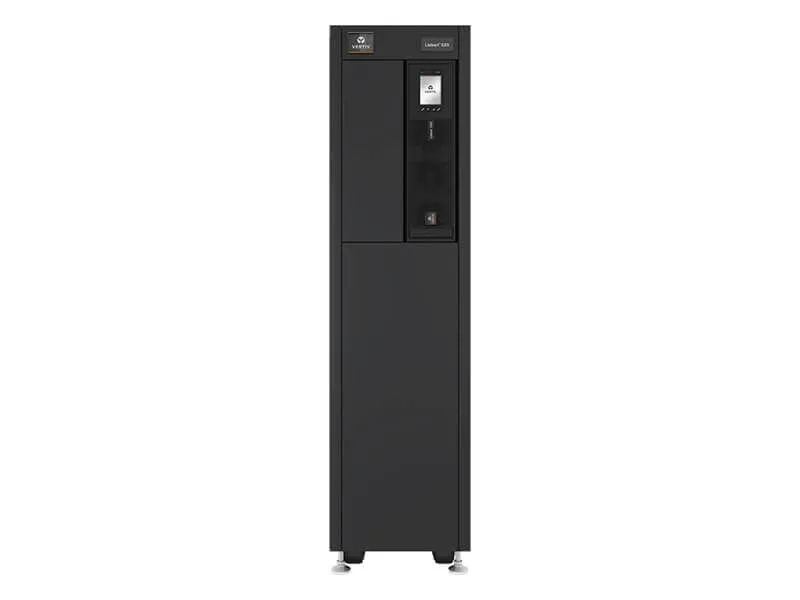

Vertiv Liebert EXS uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W
- Output power factor up to 1
- Double conversion efficiency up to 96.2%
- ECO mode efficiency up to 99%
- Input current total harmonic distortion correction (THDi) < 3%
- Battery charger up to 13 A
- Integrated manual bypass
- Integrated input and output breakers/switches
- Integrated parallel load bus and synchronisation port (LBS)
Optimised and Integrated Three-Phase UPS Solution with High Efficiency Power Protection.
Liebert® EXS combines compact design and improved performances. It is able to provide the utmost active power possible in a compact footprint. In fact, its improved design reduces its footprint to a minimum and enhances its double conversion efficiency up to 96.2%, providing continuous power protection with optimised internal runtime in a standalone solution.
| Features | |
|---|---|
| Input current Total Harmonic Distortion (THD) | 3% |
| ECO mode | Yes |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Power factor | 1 |
| Efficiency (ECO mode) | 99% |
| Efficiency | 96.2% |
| Number of input phases | 1 |
| Output power | 10000 W |
| Output power capacity | 10 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| Battery | |
|---|---|
| Charging current | 13 A |
| Typical backup time at full load | 11 min |
| Number of battery cells | 32 |
| Battery capacity | 9 Ah |
| Design | |
|---|---|
| Product colour | Black |
| Form factor | Rackmount/Tower |
| General | |
|---|---|
| Product family | Liebert |
| Weight & dimensions | |
|---|---|
| Weight | 185 kg |
| Height | 1300 mm |
| Depth | 650 mm |
| Width | 335 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
