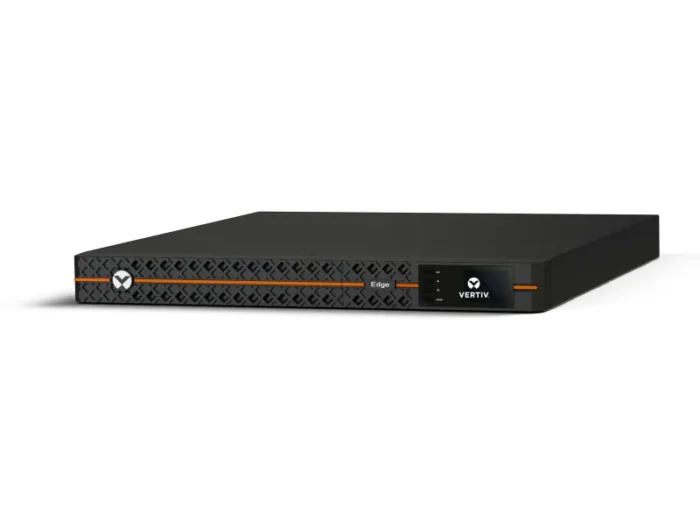

Vertiv Liebert Edge Uninterruptible Power Supply (UPS) – 1500VA 1350W 230V 1U Line Interactive AVR Rack Mount | 0.9 PF
- 1500VA UPS with advanced AVR for a more stable output voltage regulation
- This line interactive UPS has 0.9 output power factor ensuring more active power to protect larger loads

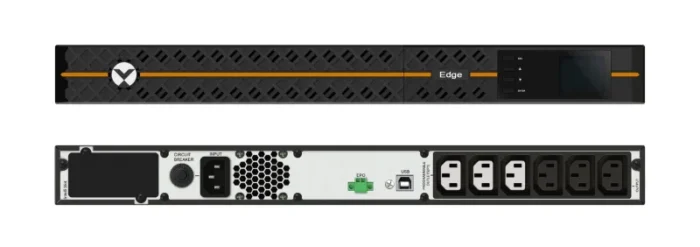

- Get similar features as a 2U battery backup in a compact 1U rack space

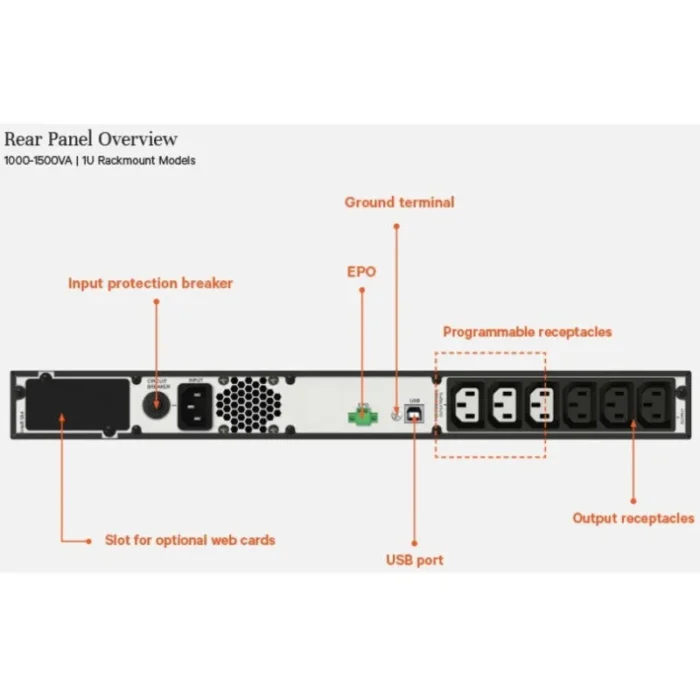

- Add a communication card to this single phase UPS to manage devices remotely
- Get 6 total outlets with 3 programmable outlets to prioritize critical loads and achieve longer runtime
The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With compact 1U rack format, this 1500VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS’s shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen.
| Features |
| Efficiency |
97% |
| Surge energy rating |
624 J |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
45/65 Hz |
| Input operation voltage (max) |
278 V |
| Input operation voltage (min) |
166 V |
| Waveform |
Pure sine |
| Output power |
1350 W |
| Output power capacity |
1.5 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| USB port |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Battery recharge time |
3 h |
| Design |
| Display type |
LCD |
| Rack capacity |
1U |
| Product colour |
Black |
| Form factor |
Rackmount |
| Operational conditions |
| Operating altitude |
0 – 3000 m |
| Operating relative humidity (H-H) |
20 – 90% |
| Storage temperature (T-T) |
-25 – 55 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| General |
| Product family |
Liebert |
| Safety regulation & standards |
| Safety |
IEC/EN62040-1 |
| Certificates |
| Certification |
CE, CB Report, EAC, RCM, UKCA |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
23 kg |
| Height |
43 mm |
| Depth |
600 mm |
| Width |
438 mm |
| Packaging data |
| Package weight |
30 kg |
| Package height |
200 mm |
| Package depth |
780 mm |
| Package width |
570 mm |
| Logistics data |
| Country of origin |
China |
| Harmonized System (HS) code |
85078000 |
