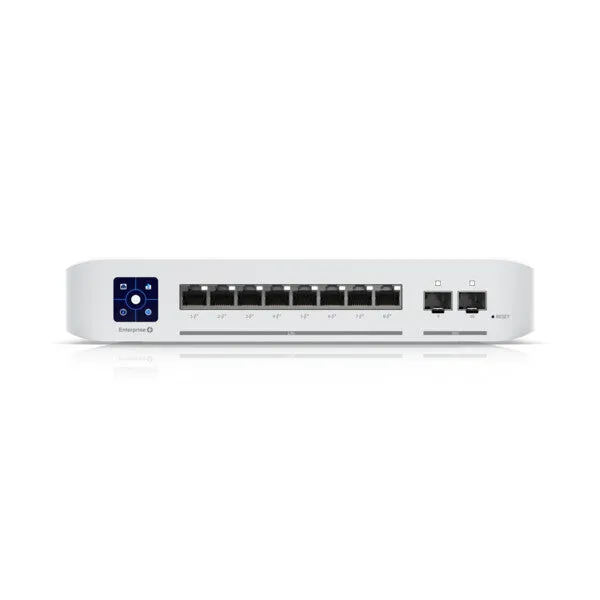

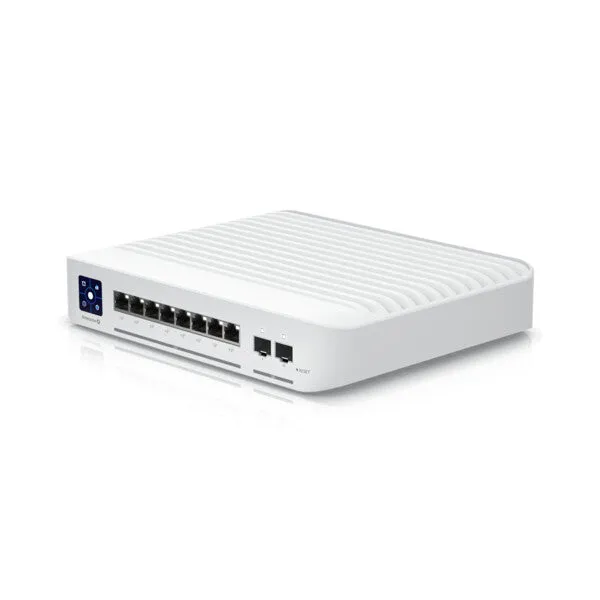

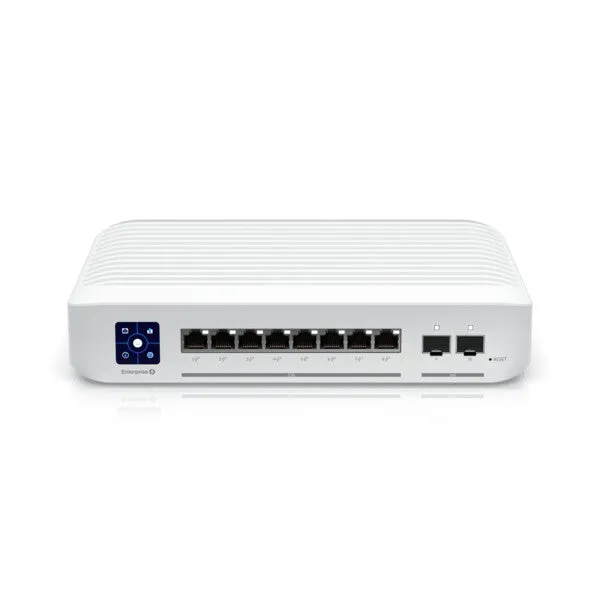

Ubiquiti UniFi Enterprise 8 PoE Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Stainless steel
- (1) 1.3″ LCM color touchscreen with AR switch management
- (8) 2.5GbE, 802.3at PoE+ RJ45 ports
- (2) 10G SFP+ ports
- 120W total PoE supply
- Wall-mountable (kit included)
Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.
The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
| Management features |
| Web-based management |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Ports & interfaces |
| SFP+ module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| 10G support |
No |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Data transmission |
| Forwarding rate |
59.52 Mpps |
| Switching capacity |
80 Gbit/s |
| Design |
| Wall mountable |
Yes |
| LED indicators |
Activity, Link |
| Housing material |
Polycarbonate (PC) |
| Product colour |
Stainless steel |
| Rack mounting |
Yes |
| Power |
| Input current |
2 A |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
120 W |
| Power over Ethernet (PoE) power per port |
32 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 95% |
| Operating temperature (T-T) |
-5 – 45 °C |
| Weight & dimensions |
| Weight |
2.4 kg |
| Height |
44 mm |
| Depth |
200 mm |
| Width |
248 mm |
| Packaging content |
| Manual |
Yes |
| General |
| Product family |
UniFi |
| Certificates |
| Compliance certificates |
CE |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
