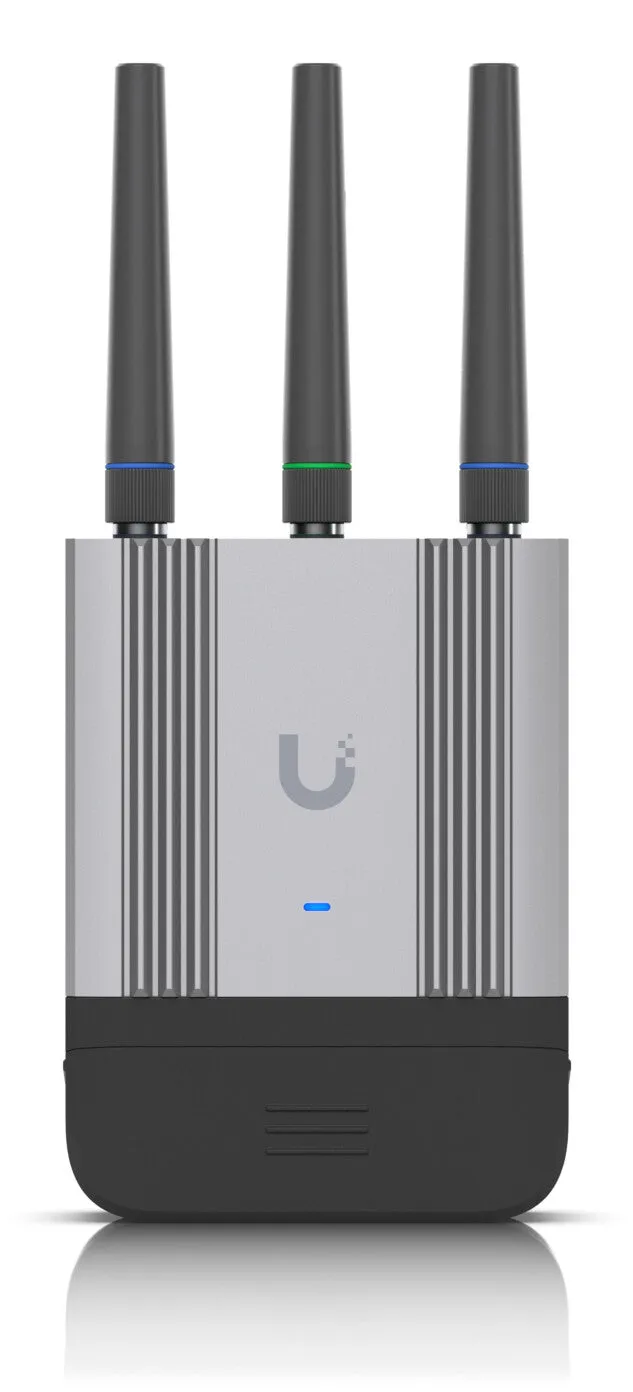

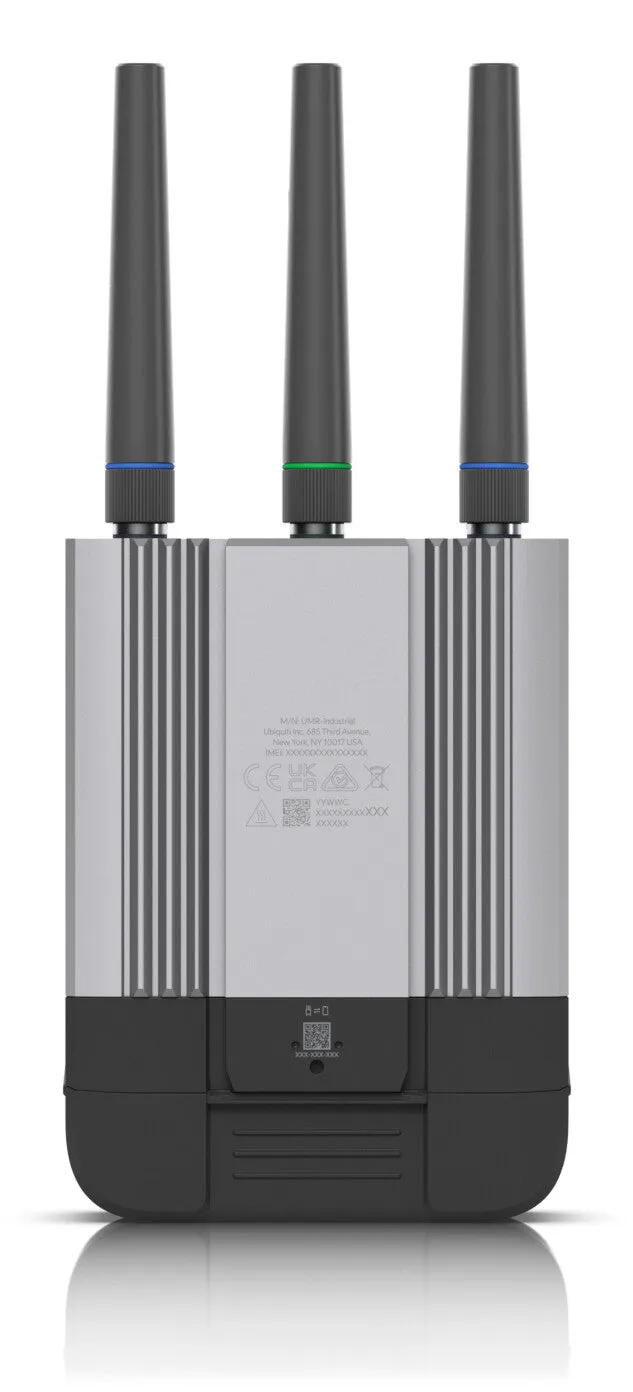

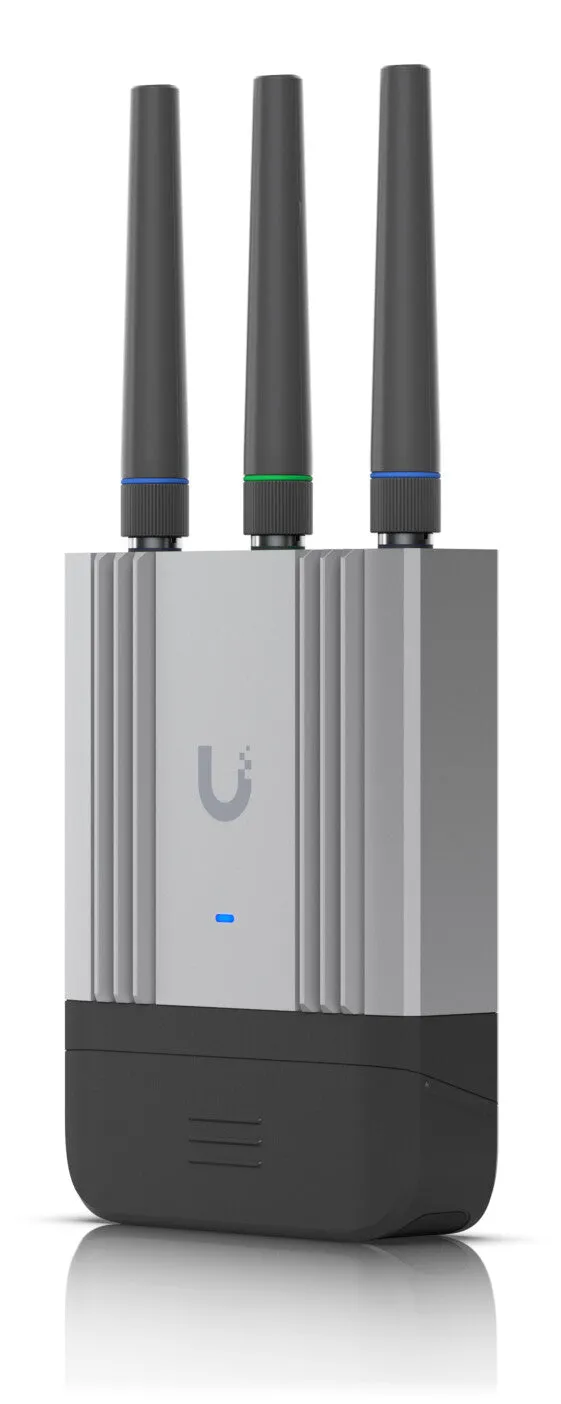

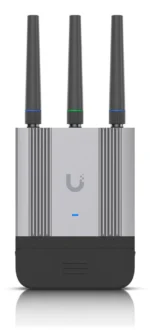

Ubiquiti UMR-Industrial Cellular network router
- Site-to-site VPN and VPN client routing
- (2) GbE ports with (1) PoE output
- Powered using PoE, USB Type-C, or 4-pin DC power socket
- Outdoor GPS location tracking
- Flexible wall, pole, and DIN rail mounting
- Weatherproof (outdoor exposed) with the included cover
- Optional Mobility Cloud subscription
Compact, ruggedized, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.
| Design |
| LED indicators |
Status |
| Reset button |
Yes |
| Suitable for indoor use |
Yes |
| Suitable for outdoor use |
Yes |
| Mounting |
Wall/Pole/DIN-rail mounting |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Product colour |
Black, Grey |
| Device type |
Cellular network router |
| Ethernet LAN features |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Wireless LAN features |
| Wi-Fi frequency |
2.4 GHz |
| WLAN data transfer rates supported |
1,2,5.5,6,9,11,12,18,24,36,48,54,150,300 Mbit/s |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Mobile network |
| Data transfer rate (LTE) (download) |
150 Mbit/s |
| Data transfer rate (LTE) (upload) |
50 Mbit/s |
| SIM card type |
NanoSIM |
| 4G standard |
LTE |
| Data network |
3G, 4G |
| Ports & interfaces |
| USB port |
Yes |
| USB port type |
USB Type-C |
| Ethernet LAN (RJ-45) ports |
2 |
| Certificates |
| Compliance certificates |
CE |
| Performance |
| Detachable antenna(s) |
Yes |
| Antennas quantity |
3 |
| Antenna connector type |
SMA/RP-SMA |
| Antenna type |
External |
| GPS (satellite) |
Yes |
| Built-in processor |
Yes |
| Power |
| Power consumption (typical) |
12.5 W |
| Output voltage |
48 – 54 V |
| Power source type |
DC, PoE, USB |
| Operational conditions |
| Operating temperature (T-T) |
-40 – 70 °C |
| Operating relative humidity (H-H) |
5 – 95% |
| Weight & dimensions |
| Weight |
395 g |
| Height |
217 mm |
| Depth |
32 mm |
| Width |
94 mm |
| Packaging data |
| User guide |
Yes |
