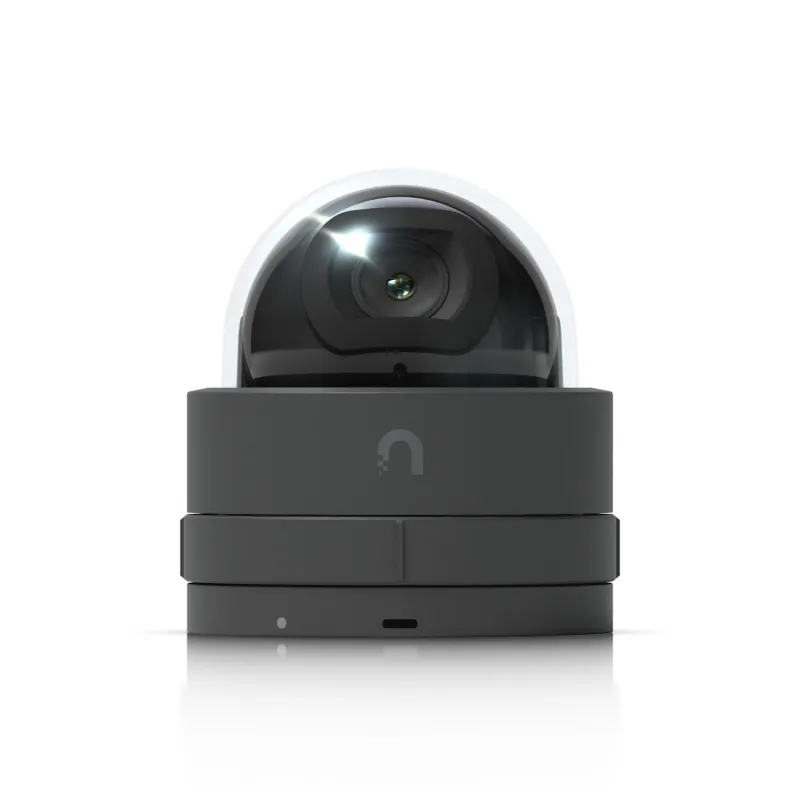

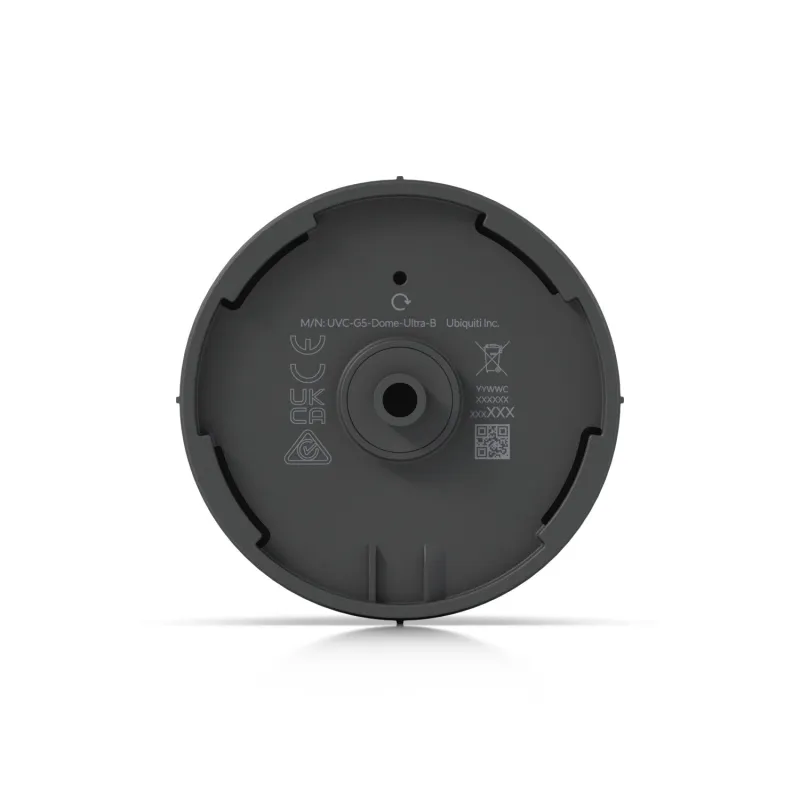

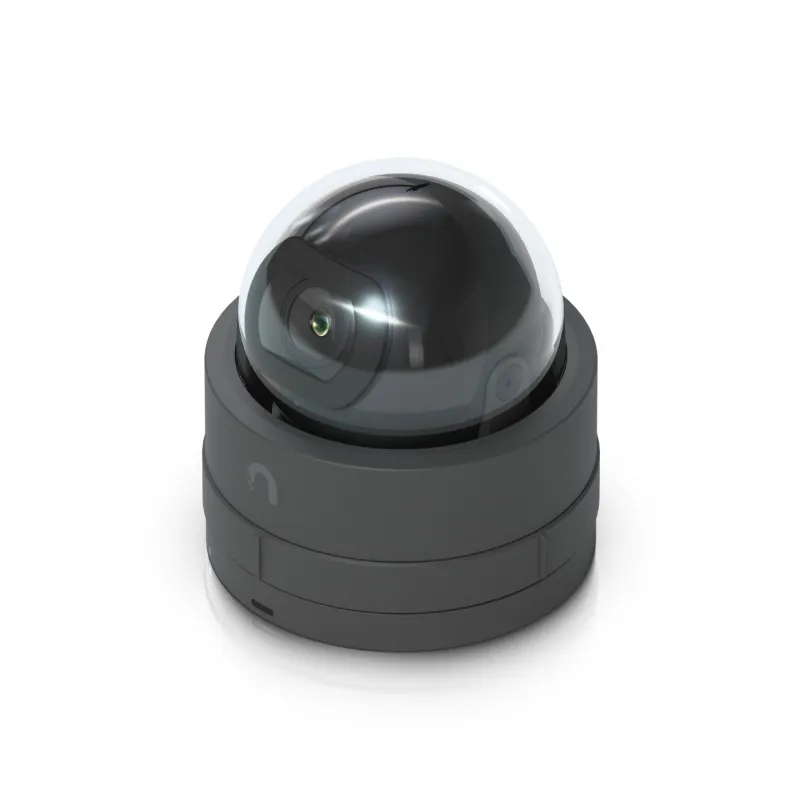

Ubiquiti G5 Dome Ultra IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall
- 2K (4MP) video resolution
- Ultra-wide viewing angle (102.4°)
- 20 m (65 ft) IR night vision
- AI event detections
- Connect and power using PoE
- Optional Flush Mount for in-ceiling installation
Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.
| Performance |
| Processor model |
ARM Cortex-A7 |
| Built-in processor |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Day/night mode |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| IK code |
IK06 |
| Protection features |
Vandal proof |
| Housing material |
Aluminium, Polycarbonate (PC), Stainless steel |
| Product colour |
Black |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Lens viewing angle, diagonal |
120.6° |
| Lens viewing angle, vertical |
54.9° |
| Lens viewing angle, horizontal |
102.4° |
| Image sensor |
| Optical sensor size |
25.4 / 2.4 mm (1 / 2.4″) |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Number of lenses |
1 |
| Night vision |
| LED type |
IR |
| Night vision distance |
20 m |
| Night vision |
Yes |
| Video |
| Text caption overlay |
Yes |
| Privacy masking |
Yes |
| Noise reduction technology |
2D noise reduction, 3D noise reduction |
| Noise reduction |
Yes |
| Frame rate |
30 fps |
| Video formats supported |
H.264 |
| Total megapixels |
4 MP |
| Maximum resolution |
2688 x 1512 pixels |
| Network |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Management features |
| Reset button |
Yes |
| Power |
| Power consumption (typical) |
4.2 W |
| AC input voltage |
37 – 57 V |
| Power source type |
PoE |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
-20 – 40 °C |
| Weight & dimensions |
| Weight |
175 g |
| Diameter |
6.36 cm |
| Height |
68.2 mm |
| Sustainability |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Packaging content |
| Screws included |
Yes |
| Mounting kit |
Yes |
| Cables included |
LAN (RJ-45) |
| Number of cameras |
1 |
