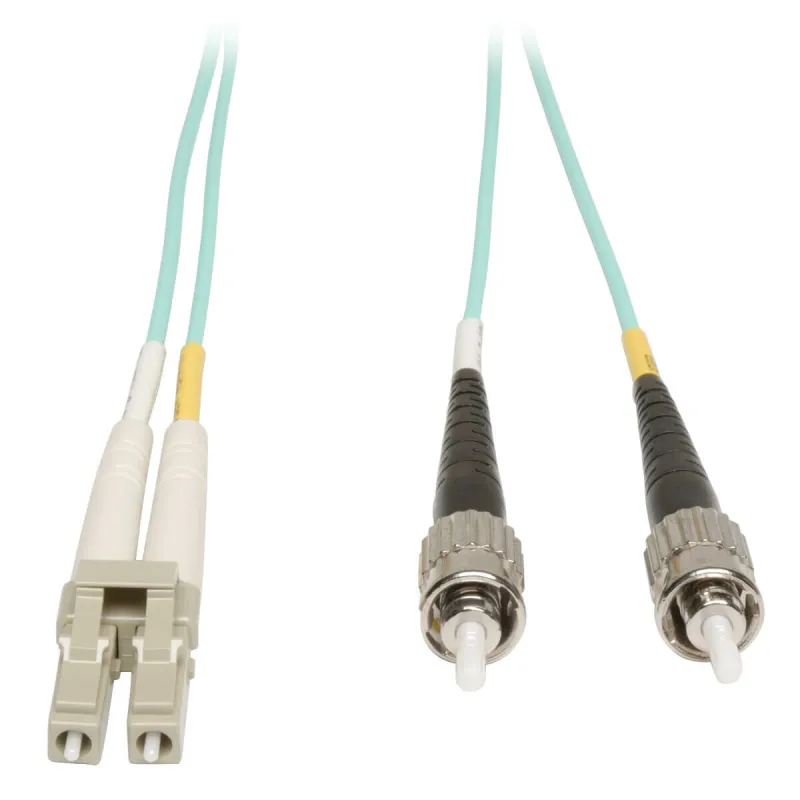

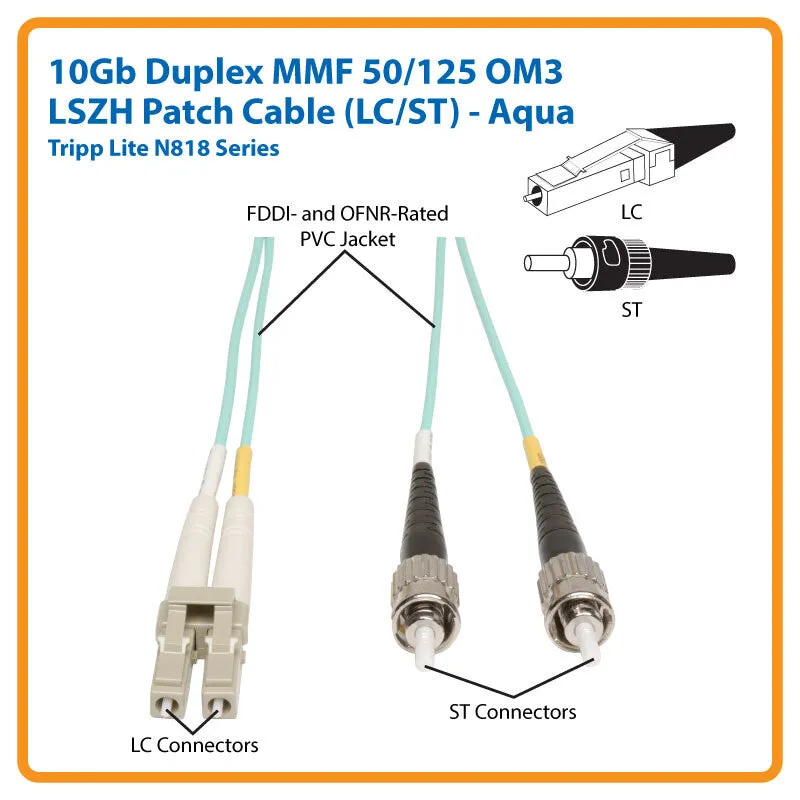

Tripp Lite N818-05M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/ST) – Aqua, 5M (16 ft.)
- Designed for 10-Gig Ethernet applications…OM3 Rated
- Backward compatible with existing 50/125 fiber
- Max 10Gb distance of 300 meters @850nm
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket
5M (16.4-ft.) LC/ST, OM3 Rated
Use with VCSEL and LED laser light sources
High-Speed, High-Bandwidth, Low-Cost
Backward compatible with legacy LAN’s
Ideal for Fibre Channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant
10gb Ethernet speed to 300 meters @850nm
| Features |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Data transfer rate |
100 Gbit/s |
| Fiber mode structure |
Multi-mode |
| Cladding diameter |
125 µm |
| Core diameter |
50 µm |
| Product colour |
Grey, Turquoise |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 2 |
2x ST |
| Connector 1 |
2x LC |
| Fibre optic type |
OM3 |
| Cable length |
5 m |
| Certificates |
| Compliance certificates |
RoHS |
| Packaging data |
| Package weight |
50 g |
| Package height |
228.6 mm |
| Package depth |
12.7 mm |
| Package width |
177.8 mm |
| Logistics data |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case gross weight |
590 g |
| Master (outer) case height |
177.8 mm |
| Master (outer) case length |
101.6 mm |
| Master (outer) case width |
177.8 mm |
| Harmonized System (HS) code |
8544.70.0000 |
| Country of origin |
China |
| Master (outer) case GTIN (EAN/UPC) |
10037332134698 |
