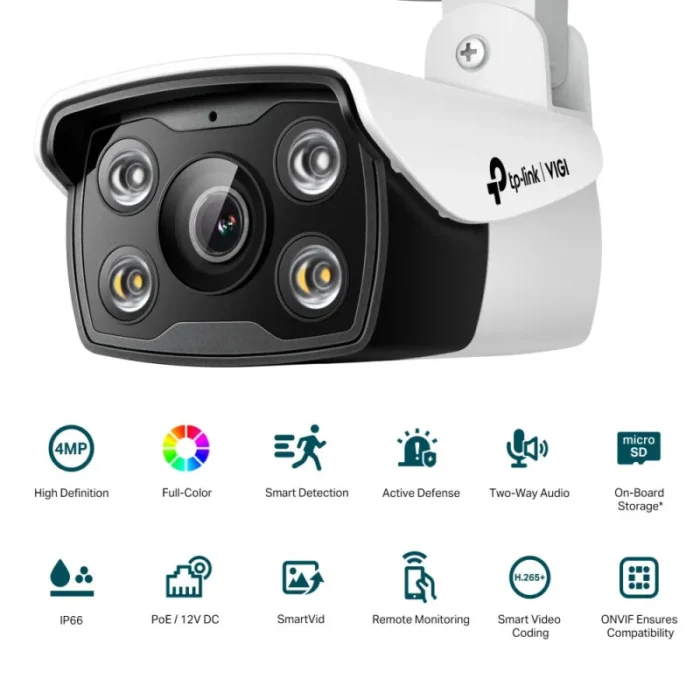

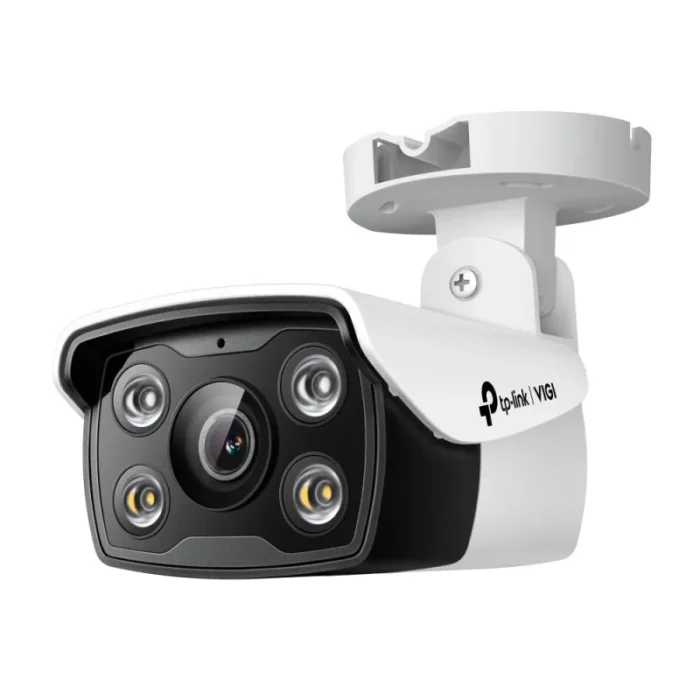

TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera
- 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
- Waterproof: Reliable IP66 for stable outdoor performance
- Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
- PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy
- VIGI App: Manage your security from the palm of your hand with the VIGI app
All The Colors,
All The Time
4MP Outdoor Full-Color Bullet Camera
Outdoor PoE Connection, Simple Wiring
Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI’s Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera.
Motion Detection
Get instant notifications when your camera detects motion.
Area Intrusion
Set customized activity zones around key areas for more focused monitoring.
Line-Crossing
Set a boundary and receive an alert anytime a person crosses it from either or both directions.
Camera Tampering
Receive alerts when someone obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events
Every Event is Under Your Control.
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
Never miss a detail.
SmartVid-Smart Video Enhancement
Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with SD card slot (up to 256 GB).
Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
| Performance | |
|---|---|
| Day/night mode | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| International Protection (IP) code | IP66 |
| Housing material | Plastic |
| LED indicators | Yes |
| Product colour | Black, White |
| Mounting type | Ceiling/Wall/Pole |
| Form factor | Bullet |
| Camera | |
|---|---|
| Number of Privacy masking areas | 4 |
| Camera shutter speed | 1/3 – 1/10000 s |
| Pan range | -90 – 90° |
| Tilt angle range | -90 – 90° |
| Lens viewing angle, diagonal | 93° |
| Lens viewing angle, vertical | 43° |
| Lens viewing angle, horizontal | 79° |
| Minimum illumination | 0.005 lx |
| Panoramic camera | |
|---|---|
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 3 mm (1 / 3″) |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Fixed focal length | 4 mm |
| Identify distance | 8 m |
| Maximum aperture number | 1.6 |
| Recognize distance | 16 m |
| Observe distance | 33 m |
| Detect distance | 80 m |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Infra-red wavelength | 850 nm |
| Number of illumination LEDs | 2 |
| LED type | IR |
| Night vision distance | 30 m |
| Night vision | Yes |
| Video | |
|---|---|
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation |
| Bit rate | 256 Kbps – 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Total megapixels | 4 MP |
| Maximum resolution | 2560 x 1440 pixels |
| Audio | |
|---|---|
| Bit rate range | 64 – 4000 Kbit/s |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Sample rate | 8 kHz |
| Audio output channels | 1 channels |
| Audio input channels | 1 channels |
| Audio system | 2-way |
| Built-in speaker(s) | Yes |
| Network | |
|---|---|
| Live view | Yes |
| Number of simultaneous live view channels | 3 channels |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Maximum memory card size | 256 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Network access storage (NAS) | Yes |
| Password protection | Yes |
| Management features | |
|---|---|
| Reset button | Yes |
| Web browser | Yes |
| Power | |
|---|---|
| DC output voltage | 12 |
| Power consumption (max) | 7 W |
| Power consumption (typical) | 3.4 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -40 – 60 °C |
| Operating temperature (T-T) | -30 – 60 °C |
| General | |
|---|---|
| Product family | VIGI |
| Weight & dimensions | |
|---|---|
| Weight | 195 g |
| Height | 174 mm |
| Depth | 70 mm |
| Width | 78 mm |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 420 g |
| Package height | 103 mm |
| Package depth | 218 mm |
| Package width | 128 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
