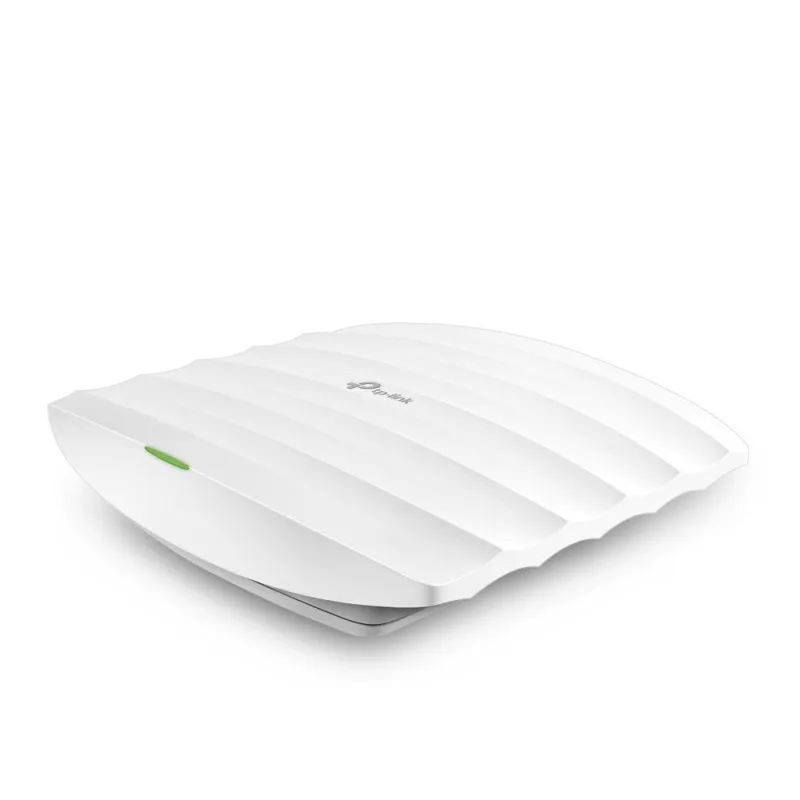

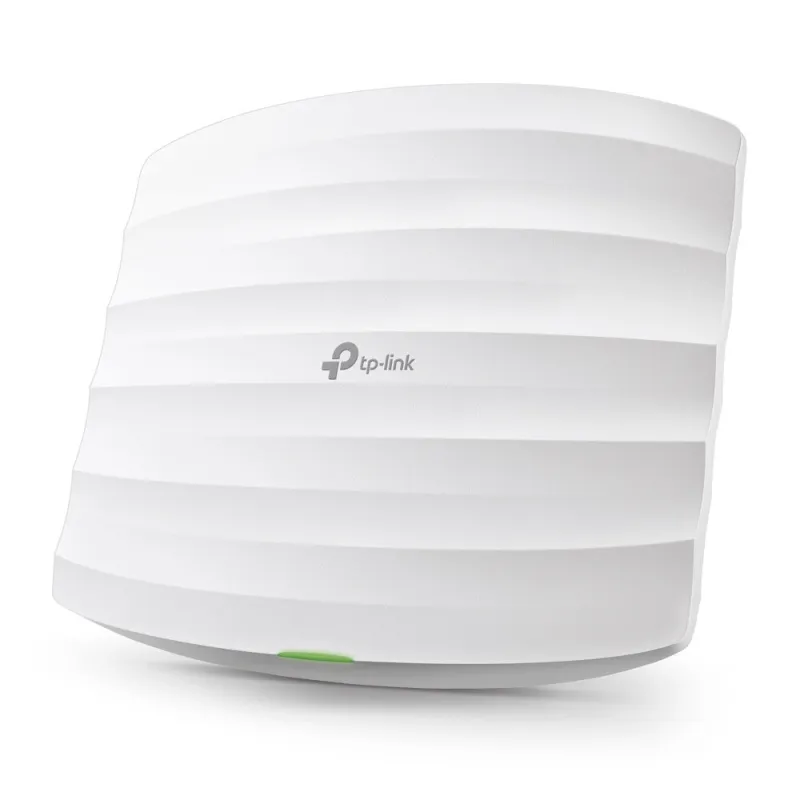

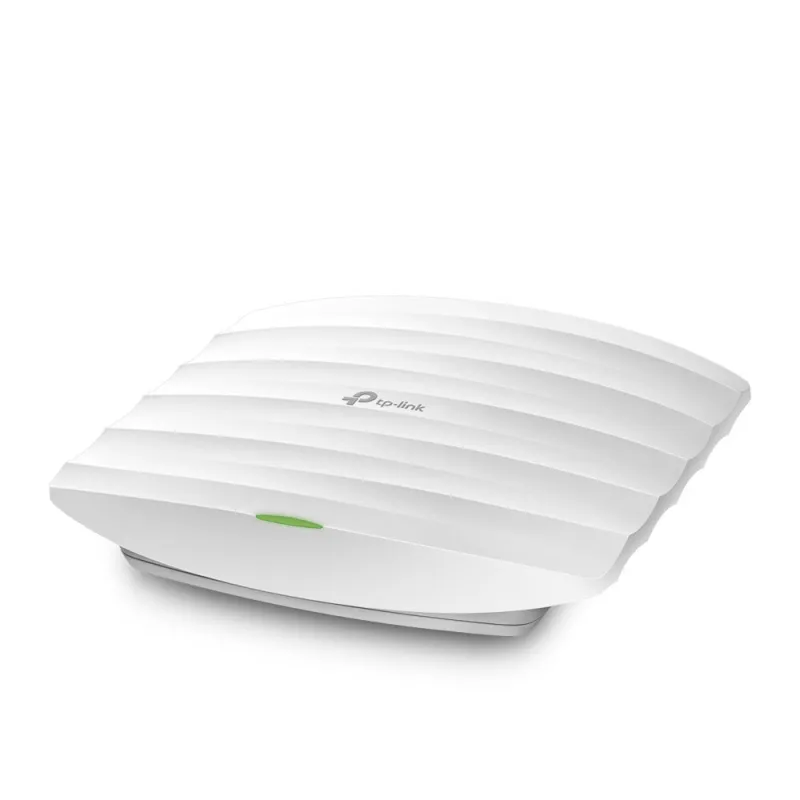

TP-Link Omada AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.†
- High-Density Connectivity: MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
- PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
Advanced Performance in High-Density Environments
AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
AC1750 Dual-Band Speed
1300 Mbps on 5 GHz Band + 450 Mbps on 2.4 GHz Band†
High-Density Connectivity
MU-MIMO + Professional Antennas
Centralised Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Seamless Roaming
Supports 802.11k/v for Signal Auto Transition
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralised cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
| Features | |
|---|---|
| Transmitting power (CE) | 20/23 dBm |
| Transmitting power (FCC) | 24 dBm |
| Quality of Service (QoS) support | Yes |
| Band steering | Yes |
| Wireless isolation | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| Number of users | 500 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Frequency band | 2.4 – 5 GHz |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Maximum data transfer rate | 1300 Mbit/s |
| 5 GHz | Yes |
| 6 GHz | No |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Number of SSID supported | 16 |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| MAC address filtering | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| Management features | |
|---|---|
| Syslog | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| DC voltage range | 12 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE, Passive PoE |
| Design | |
|---|---|
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | White |
| Placement | Ceiling, Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Performance | |
|---|---|
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| General | |
|---|---|
| Product family | Omada |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| Weight & dimensions | |
|---|---|
| Height | 37.1 mm |
| Depth | 181.5 mm |
| Width | 205.5 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
