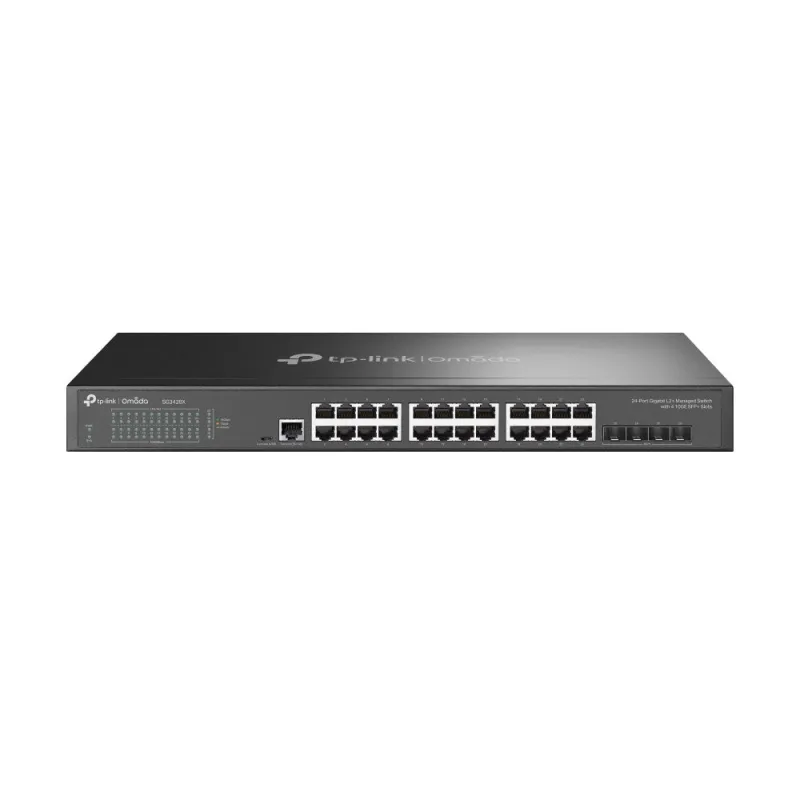

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
- 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
- 24× Gigabit RJ45 ports
- 128 Gbps switching capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Fanless design for silent operation
- Durable metal casing and rackmountable design
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| Management features |
| MIB support |
Yes |
| System event log |
Yes |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2+/L3 |
| Switch type |
Managed |
| Ports & interfaces |
| Power connector |
AC-in jack |
| Console port |
RJ-45/micro-USB |
| SFP+ module slots quantity |
4 |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
| Number of VLANs |
4000 |
| Virtual LAN features |
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| IPv4 routes |
48 |
| IPv6 routes |
48 |
| Active link detection |
Yes |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Spanning tree protocol |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Policy-based routing |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
12 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Number of static routes |
48 |
| Static route |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
95.23 Mpps |
| Switching capacity |
128 Gbit/s |
| MAC address table |
16000 entries |
| Security |
| Loop protection |
Yes |
| Authentication |
Guest VLAN, MAC-based authentication, Port-based authentication |
| Authentication type |
AAA, RADIUS, TACACS+ |
| SSH/SSL support |
Yes |
| BPDU filtering/protection |
Yes |
| IP-MAC-Port binding |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features |
| Multicast Listener Discovery (MLD) snooping |
Y |
| Multicast support |
Yes |
| Protocols |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Management protocols |
SNMPv1/v2c/v3, SNTP |
| Design |
| Number of fans |
0 fan(s) |
| LED indicators |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
23.6 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
80.52 BTU/h |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 45 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
180 mm |
| Width |
440 mm |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
LAN (RJ-45) |
| General |
| Product family |
Omada |
