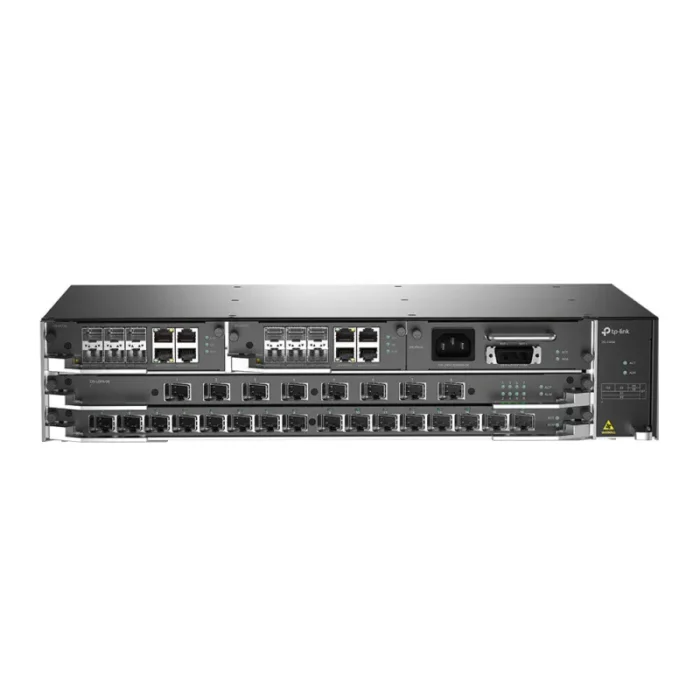

TP-Link DeltaStream Chassis Optical Line Terminal-X2
- 32 PON Ports
- Dual 6× 10GE SFP+ Ports
- Dual Power Supplies
- Centralized Management
- Complete L2 & Advanced L3 Functions
- High Reliability
Connect More, Cover Everything.
DeltaStream Chassis Optical Line Terminal-X2
High Reliability
Dual Main Control Unit，service will be automatically switched over without interruption when there is a fault.
32 PON Ports
2 × Service Boards, support up to 32 × GPON ports or 32 × XGS-PON&GPON Combo ports.
High-Speed Uplink Ports
Offers high-bandwidth connectivity with 6× 10GE SFP+ ports.
Dual Power Supplies
Pluggable AC+ DC power supply.
Centralized Management
Via DeltaStream PON Management System(DPMS), SNMP, CLI, and WEB UI.
Complete L2 & Advanced L3 Functions
Satisfies the need for numerous commercial requirements.
| Features | |
|---|---|
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| IGMP snooping | Yes |
| Multicast support | Yes |
| DHCP relay | Yes |
| Static route | Yes |
| Switch layer | L2/L3 |
| Switching capacity | 200 Gbit/s |
| Ports & interfaces | |
|---|---|
| GPON ports quantity | 32 |
| Ethernet LAN (RJ-45) ports | 8 |
| Networking standards | IEEE 802.1p |
| Power | |
|---|---|
| DC voltage range | -38.4 – -57.6 V |
| AC input voltage | 100 – 240 V |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Weight & dimensions | |
|---|---|
| Height | 88 mm |
| Depth | 271.3 mm |
| Width | 446 mm |
