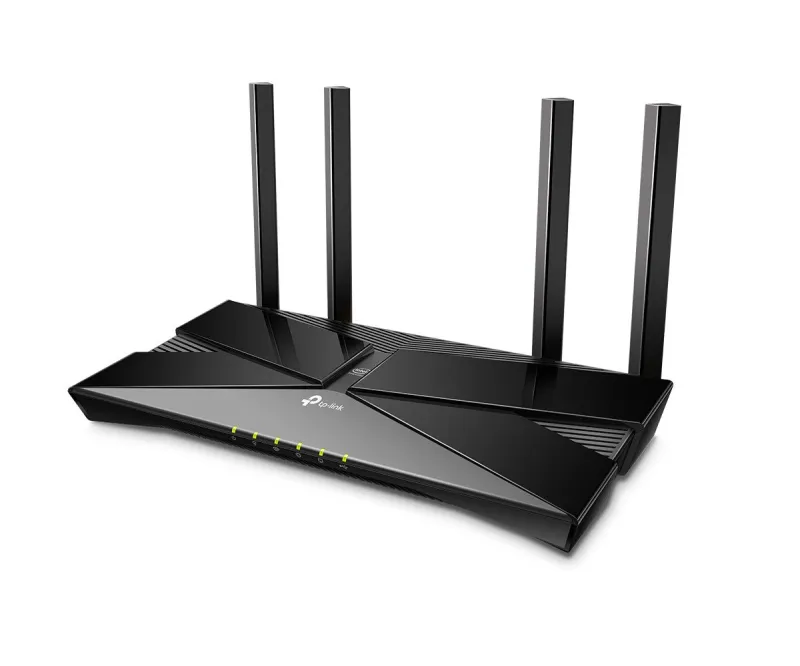

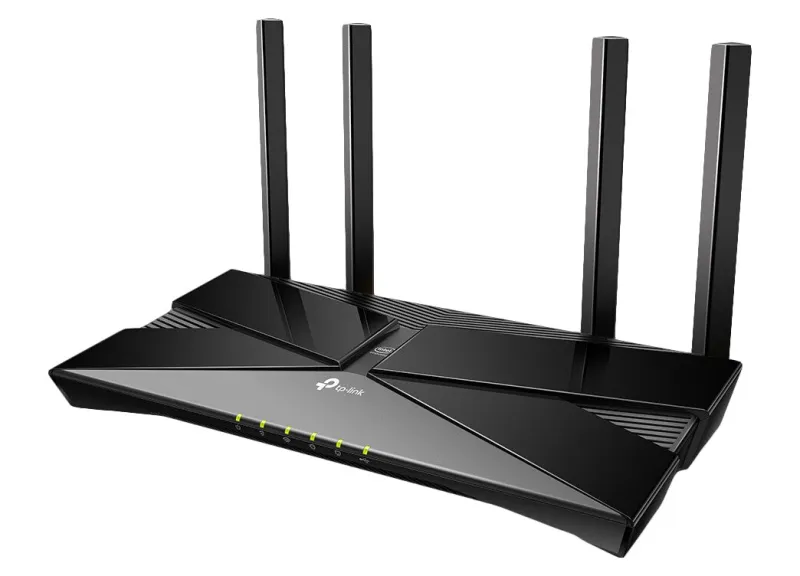

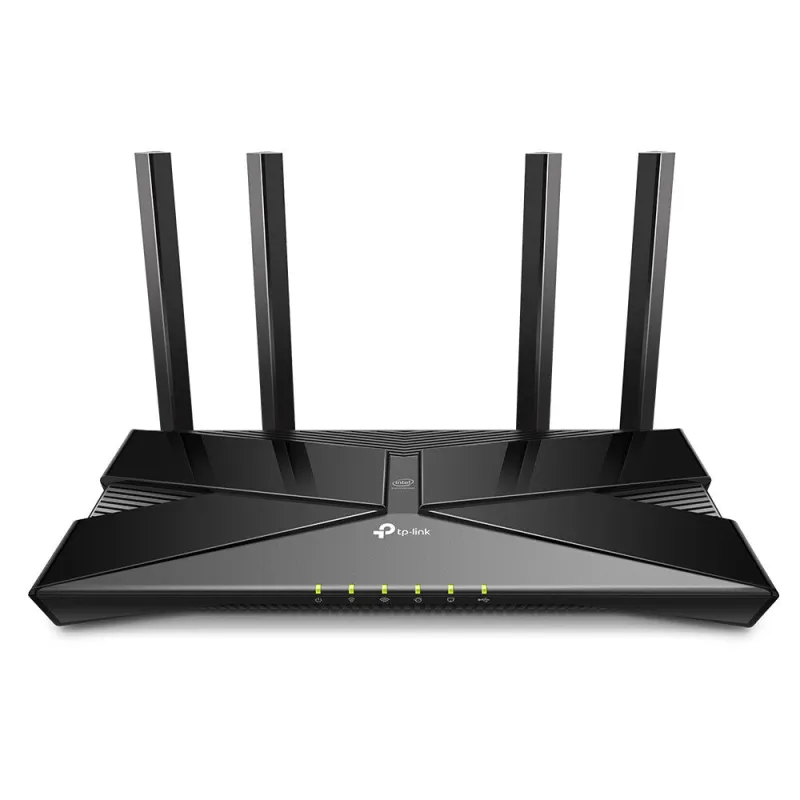

TP-Link Archer AX50 AX3000 Dual Band Gigabit Wi-Fi 6 Router
- Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads
- Connect More Devices—OFDMA technology increase capacity by 4 times to enable simultaneous transmission to more devices
- Ultra-Low Latency—Up to 75% reduction in latency enables more responsive gaming and video chatting
- Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home
- Enhanced Security—More secure and trusted Wi-Fi with TP-Link HomeCare™
- Reliable Connections—Intel® Home Wi-Fi Chipset greatly increases processing speed to deliver superior Wi-Fi 6 Gig performance
- Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power
- Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa
The Next Generation of Wi-Fi is Upon Us
Wi-Fi 6 (802.11ax) could turn out to be the most significant advancement in Wi-Fi development, delivering a huge boost in speed and total capacity. Mainstream adoption of Wi-Fi 6 is inching ever closer with more and more AX clients available. It’s the right time to upgrade your router to the newest generation of Wi-Fi!
Blazingly Fast Gig+ Speed Can’t Wait
There is no reason to hold off on buying a Wi-Fi 6 router when you can already take full advantage of the speed it delivers. Featuring a 160 MHz bandwidth and 1024-QAM, Archer AX50 delivers true gigabit speeds of up to 3 Gbps. Enjoy faster streaming and gaming like never before. Powered by Intel® Home Wi-Fi WAV654 chipset for a full-featured Wi-Fi 6 AX3000 router, to pair perfectly with new Intel® Wi-Fi 6 Gig+ PCs and laptops, allowing numerous bandwidth-intensive tasks to run smoothly at the same time.
Reliable Connections for up to 256 Devices
In answer to ever growing demands on home Wi-Fi, Archer AX50 future-proofs your home networks by providing 4× greater capacity to connect more devices. Advanced technologies like OFDMA quadruple the connection capacity in high-density scenarios compared to standard 802.11ac routers. Keep pace with the latest technology and future developments.
Lower Latency, Greater Experience.
Taking a giant leap forward in wireless connectivity, Wi-Fi 6 brings stable and responsive Wi-Fi connections to tomorrow’s hyperconnected homes. Enjoy more responsive gaming and seamless video conferencing even when multiple compatible device are connected and transmitting data at the same time.
More Secure, and More Trusted Wi-Fi
Create a customized Wi-Fi network with enhanced security using TP-Link HomeCare™. Whether protecting your sensitive data or limiting the access of kids and guests, HomeCare™ gives you the tools you need to fully manage your network.
Expanded Coverage Throughout Your Home
Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home. Cutting-edge Wi-Fi 6 technologies, such as BSS Color, ensure smooth and stable connections by eliminating signal interference from your neighbors.
Reduce Devices’
Power Consumption
While Wi-Fi 6 clients are starting to hit the market in meaningful numbers, the newest AX technology—Target Wake Time—helps your devices to communicate more while consuming less power. Mobile and IoT devices that support TWT negotiate when and how often they will wake up to send or receive data, increasing sleep time and substantially prolonging battery life.
Easy Management with Tether
Set up your router in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings, including parental controls and media sharing, from any Android or iOS device.
Ready for Today and Tomorrow’s Smart Home
With the growing number of devices in today’s home, everyone deserves a smarter and easier way to bring all your products together. Utilize Amazon Alexa to control everything via voice commands to enjoy truly intelligent life.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 3000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network | |
|---|---|
| Receiver sensitivity | 5 GHz:11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS11:-55dBm11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm11ax HE160_MCS0:-85dBm, 11ax HE160_MCS11:-55dBm2.4 GHz:11g 6Mbps:-97dBm, 11a 54Mbps:-79dBm11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| 3G | No |
| 4G | No |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Memory card slot(s) | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Security | |
|---|---|
| DMZ support | Yes |
| Guest access | Yes |
| Firewall security | DoS, SPI |
| Firewall | Yes |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | LAN, Power, Status, WAN |
| Product colour | Black |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| Antenna | |
|---|---|
| Transmit power | CE: |
| Antennas quantity | 4 |
| Antenna design | External |
| Features | |
|---|---|
| Intel inside | Yes |
| Power | |
|---|---|
| Output current | 2 A |
| Output voltage | 12 V |
| Power source type | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| System requirements | |
|---|---|
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Weight & dimensions | |
|---|---|
| Width | 260 mm |
| Depth | 135 mm |
| Height | 38.6 mm |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
| Package weight | 870 g |
| Package height | 73 mm |
| Package depth | 240 mm |
| Package width | 330 mm |
