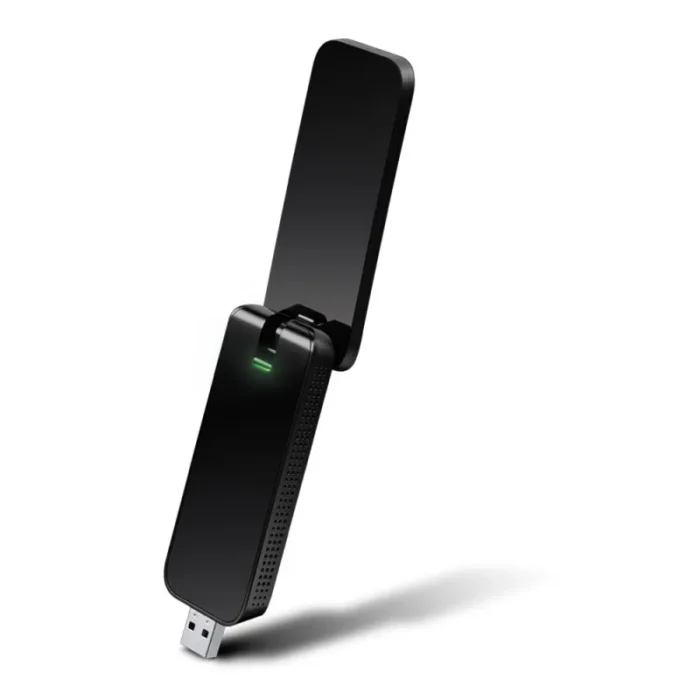

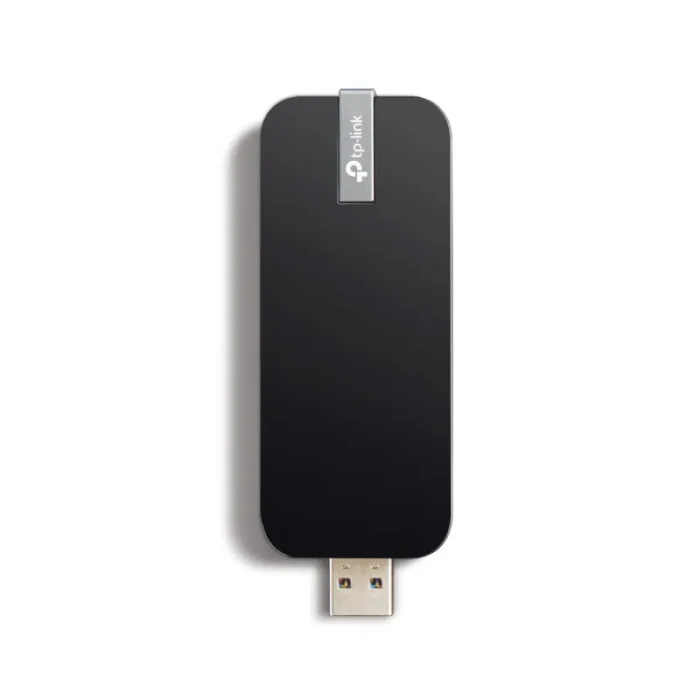

TP-Link AC1300 Wireless Dual Band USB WiFi Adapter
- Ultra-fast Wi-Fi – 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard
- Dual Band Wireless – 2.4GHz and 5GHz bands for flexible connectivity
- High gain antennas – Improved range, signal quality and transmission performance
- MU-MIMO –Delivers highly efficient wireless connection
- Super Speed USB 3.0 Port – Up to 10x faster transfer speeds than USB 2.0
- WPS Button – Easy wireless security encryption at the push of the WPS button
Higher Gain, Superior Coverage, Faster Streaming
AC1300 High Gain Wireless
MU-MIMO USB Adapter
Archer T4U
Dual Band Wi-Fi for Faster Connections
Wireless AC technology means Archer T4U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed Wi-Fi (up to 867Mbps over the 5GHz band and 400Mbps over the 2.4GHz band) means Archer T4U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.
High Gain Antennas for a Targeted Signal
With two high gain antennas, Archer T4U greatly extends Wi-Fi range and coverage compared to typical wireless adapter. A stable Wi-Fi network across your home makes for an ideal surfing experience.
Boosted Throughput with MU-MIMO
Thanks to MU-MIMO technology, Archer T4U can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer T4U ideal for HD streaming, online gaming and large file downloads.
| Ports & interfaces | |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Interface | WLAN |
| Host interface | USB |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| Bandwidth (first) | 2.4 GHz |
| Bandwidth (second) | 5 GHz |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Modulation | 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK |
| WLAN data transfer rates supported | 11,54,300,400,867 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Frequency range | 2.4 – 5 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi | Yes |
| Maximum data transfer rate | 867 Mbit/s |
| Design | |
|---|---|
| Certification | CE, FCC |
| LED indicators | Power |
| WPS push button | Yes |
| Antenna direction type | Omni-directional |
| Antenna | Yes |
| Antenna design | External |
| Product colour | Black |
| Component for | PC/Laptop |
| Internal | No |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64, Windows XP |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 13.9 mm |
| Depth | 30.4 mm |
| Width | 92.4 mm |
| Packaging data | |
|---|---|
| Package height | 42 mm |
| Package depth | 148 mm |
| Package width | 207 mm |
| Drivers included | Yes |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Transmit power range | 20 – 20 dBmW |
| Antennas quantity | 2 |
