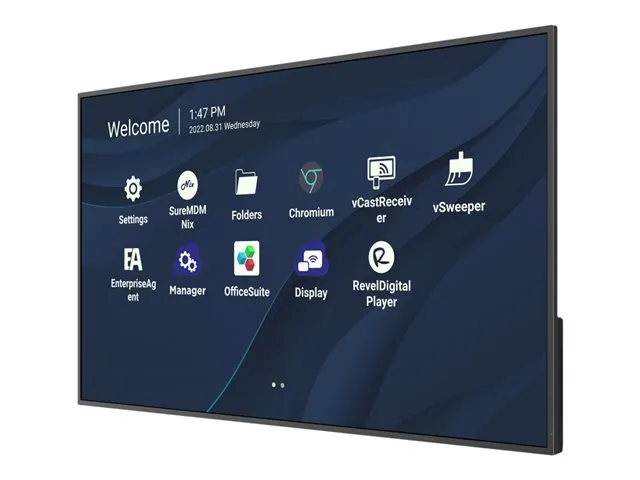

TieDex UK ViewSonic CDE4330 CDE30 Series – 43″ Class (42.5″ viewable) LED-backlit LCD display – 4K – for digital signage
ViewSonic CDE4330 – 43″ Diagonal Class (42.5″ viewable) – CDE30 Series LED-backlit LCD display – digital signage – with built-in SoC media player – 4K UHD (2160p) 3840 x 2160 – Direct LED
Basic Specifications
- Manufacturer’s Part Number
- CDE4330
- EAN
- 0766907017465
- Product Type
- LED-backlit LCD flat panel display with built-in SoC media player
- Product Description
- ViewSonic CDE4330 CDE30 Series – 43″ Class (42.5″ viewable) LED-backlit LCD display – 4K – for digital signage
- HDMI Ports Qty
- 2 ports
- LCD Backlight Technology
- Direct LED
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Power Consumption Operational
- 64 Watt
- Model
- ViewSonic CDE4330
- Speaker System
- 2 speakers
- PC Interface
- Serial RS-232, USB-C
- Dimensions (WxDxH) – without stand
- 96.46 cm x 7.14 cm x 55.25 cm
- Display Format
- 4K UHD (2160p)
- USB
- 3 ports
- Diagonal Class
- 43″
- Video Interface
- HDMI
- Commercial Use
- Digital signage
- Environmental Standards
- ENERGY STAR Qualified
- Voltage
- AC 100-240 V (50/60 Hz)
- Technology
- VA
- TV Tuner
- No tuner
- Weight
- 9.9 kg
- Manufacturer Warranty
- 3-year warranty
- Display Resolution
- 4K Ultra HD (2160p)
- Diagonal Size
- 42.5″
- Input Video Formats
- 480p, 720p, 1080i, 1080p, 480i, 576i, 576p, 4K
- Connectivity
- LAN
- Picture Enhancements
- Blue Light Filter
- Storage Capacity
- 32 GB
- Included Accessories
- Remote control, remote control, batteries, ViewBoard software, screws, RS232 adapter
- Manufacturer Guarantee
- 3 Years
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- Touchscreen
- No
Manufacturer Warranty
- Service & Support
- Limited warranty – repair – 3 years – pick-up and return
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 90% RH
Video Features
- Input Video Formats
- 480p, 720p, 1080i, 1080p, 480i, 576i, 576p, 4K
Remote Control
- Type
- Remote control
- Battery Form Factor
- AAA type
- Battery Included
- Yes
- Battery Included Qty
- 2
- Battery Required Qty
- 2
Audio System
- Speaker System
- 2 speakers
- Output Power / Total
- 16 Watt
- Features
- Audio Return Channel (ARC)
- Speakers
- 2 x main channel speaker – 10 Watt
Stands & Mounts
- Stand
- Optional
- Flat Panel Mount Interface
- 200 x 200 mm
- VESA Compatibility
- Yes
Media Player
- Supported Video Formats
- MPEG-1, MPEG-2, MPEG-4, Xvid, WMV, ASF, AVI, MKV, MOV, VOB, FLV, RM, TS, H.264, RMVB, DAT, TP, TRP, WebM, MPG, MPEG, OGM, 3GP
- Supported Audio Formats
- MP3, WMA, WAV, AC3, AAC, M4A, MP4
- Supported Pictures Formats
- BMP, PNG, JPEG
- USB Port
- Yes
- USB Ports Qty
- 3
- Configuration
- ARM Cortex-A55 Quad-Core – 4 GB – 32 GB
Connections
- Connector Type
- 2 x HDMI input ¦ RS-232 input ¦ HDMI output ¦ USB-C with 65W Power Delivery ¦ SPDIF output ¦ LAN ¦ USB 2.0 ¦ USB 3.0
Display
- LCD Display Technology
- VA
- Colour Support
- 1070000000 colours
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- LCD Backlight Technology
- Direct LED
- Coating
- Anti-glare, 3H Hard, 25% haze
- Image Contrast Ratio
- 1200:1
- Dynamic Contrast Ratio
- 5000:1
- Brightness
- 500 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Response Time
- 6.5 ms
- Backlight Life
- 50,000 hour(s)
- Operation Hours / Days
- 24 / 7
- Features
- Dimming Control (DCR), Open Pluggable Specification slot, Crestron Connected Compatible, Flicker free technology, OPS Slot, WiFi slot, 1.07 billion colours (8-bit+FRC)
General
- Product Type
- LED-backlit LCD flat panel display
- Power Consumption Operational
- 64 Watt
- Diagonal Class
- 43″
- Diagonal Size
- 42.5″
- Commercial Use
- Yes – digital signage
- Combined With
- Built-in SoC media player
- Series
- CDE30 Series
- Operating System
- Android OS 11
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Video Interface
- HDMI
- HDMI Ports Qty
- 2 ports
- PC Interface
- Serial RS-232, USB-C
- Modes
- Portrait mode, landscape mode
- Picture Enhancements
- Blue Light Filter
- Design
- Sleek Design
- Dimensions
- Without stand
- Width
- 96.46 cm
- Depth
- 7.14 cm
- Height
- 55.25 cm
- Weight
- 9.9 kg
Miscellaneous
- Included Accessories
- Remote control, batteries, ViewBoard software, screws, RS232 adapter
- Cables Included
- HDMI cable – 3 m ¦ USB-C cable – 1.8 m
- Compliant Standards
- CB, FCC, RoHS, WEEE, cTUVus, REACH, UkrSEPRO, ERP, EAC, RCM, CE/EMC, HDCP 2.2, Mexico Energy label, TPCH, Mexico NOM, CA65, SCIP, Annex II (EU) 2015/863, ICES 003, Green BOM
Power
- Power Device
- Power supply
- Input Voltage
- AC 100-240 V (50/60 Hz)
- Power Consumption (Off Mode)
- 0.5 Watt
- On / Off Switch
- Yes
Dimensions & Weight (Shipping)
- Width (Shipping)
- 1.056 m
- Depth (Shipping)
- 15.6 cm
- Height (Shipping)
- 67.2 cm
- Weight (Shipping)
- 13.85 kg
Network & Internet Multimedia
- Connectivity
- LAN
- LAN Protocol
- Fast Ethernet
Sustainability Information
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 8.0
