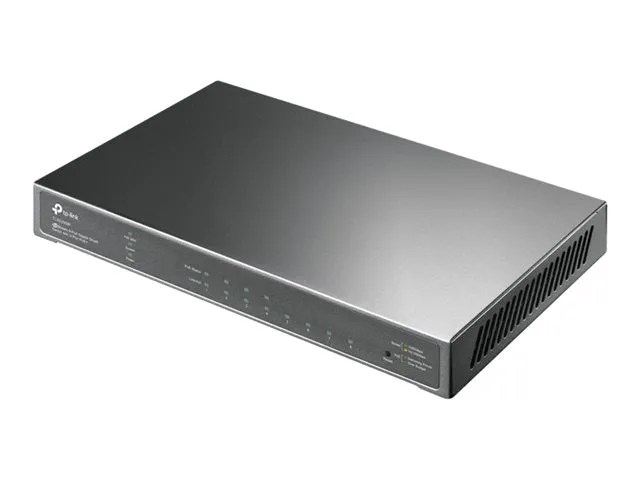

TieDex UK TP-Link JetStream TL-SG2008P – V1 – switch – 8 ports – smart
TP-Link JetStream TL-SG2008P – V1 – switch – smart – 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) – desktop – PoE+ (62 W)
Basic Specifications
- Manufacturer’s Part Number
- TL-SG2008P
- EAN
- 6935364010621
- Product Description
- TP-Link JetStream TL-SG2008P – V1 – switch – 8 ports – smart
- Model
- TP-Link JetStream TL-SG2008P
- Dimensions (WxDxH)
- 20.9 cm x 12.6 cm x 2.6 cm
- Features
- Flow control, auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DHCP snooping, ACL support, QoS, MLD snooping, Cable Diagnostics Function, DLDP support, fanless, LACP support, LLDP support, DHCP relay, Port Security, MIB, GVRP, NDP, port isolation, CoS, SP, 802.1x authentication, cloud managed, DSCP support, Storm Control, IP source guard, ARP inspection, Link Aggregation, scheduler, dual image support, SDN, AAA, LLDP-MED, ZTP, BPDU Filter, WRR, loopback detection, BPDU protection
- Device Type
- Switch – 8 ports – smart
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
- Capacity
- Priority queues: 8 ¦ VLAN groups: 4000
- MAC Address Table Size
- 8K entries
- Subtype
- Gigabit Ethernet
- Performance
- Bandwidth: 16 Gbps ¦ Packet buffer size: 4.1 Mbit
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
- System Requirements
- UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, DHCP, RSTP, RADIUS
- Jumbo Frame Support
- 9KB
- Ports
- 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
- PoE Budget
- 62 W
- Power Over Ethernet (PoE)
- PoE+
General
- Device Type
- Switch – 8 ports – smart
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 62 W
- Performance
- Bandwidth: 16 Gbps ¦ Packet buffer size: 4.1 Mbit
- Capacity
- Priority queues: 8 ¦ VLAN groups: 4000
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, DHCP, RSTP, RADIUS
- Encryption Algorithm
- MD5, SSL, TLS 1.0, SSL 3.0, PEAP, EAP-TLS, EAP-TTLS
- Authentication Method
- Secure Shell (SSH), RADIUS, PAP, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP), EAP-TLS, EAP-TTLS
- Features
- Flow control, auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DHCP snooping, ACL support, QoS, MLD snooping, Cable Diagnostics Function, DLDP support, fanless, LACP support, LLDP support, DHCP relay, Port Security, MIB, GVRP, NDP, port isolation, CoS, SP, 802.1x authentication, cloud managed, DSCP support, Storm Control, IP source guard, ARP inspection, Link Aggregation, scheduler, dual image support, SDN, AAA, LLDP-MED, ZTP, BPDU Filter, WRR, loopback detection, BPDU protection
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
- Status Indicators
- Status
Dimensions & Weight
- Width
- 20.9 cm
- Depth
- 12.6 cm
- Height
- 2.6 cm
Miscellaneous
- Included Accessories
- Rubber feet
- Compliant Standards
- FCC, RoHS
Expansion / Connectivity
- Interfaces
- 4 x 1000Base-T RJ-45 ¦ 4 x 1000Base-T RJ-45 PoE+
Power
- Power Device
- External power adapter
- Power Provided
- DC 53.5 V – 1.31 A
- Power Consumption Operational
- 79.2 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 – 90% (non-condensing)
Software / System Requirements
- OS Required
- UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10
