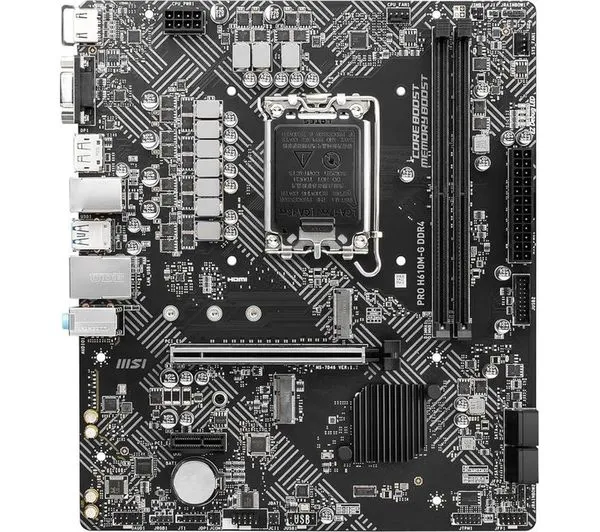

TieDex UK MSI PRO H610M-G DDR4 Motherboard
This MSI motherboard lets you build a powerful PC based on a 14th gen Intel® processor and DDR4 RAM. Fancy a gaming rig or a content creator‘s workstation? Using the PCIe 4.0 expansion slot you can hook up most recent graphics cards for a truly high-end setup. Best thing about a PC is upgradeability. That’s why this motherboard is seriously tough – the MSI Steel Armor reinforcement means you’re up for many years of heavy use.
Good to know
– With the M.2 Thermal Frozr Guards it’s ready to keep cool even a high-performance setup
– Gigabit Ethernet port is great for lightning fast wired internet connection
MSI PRO H610M-G DDR4 Motherboard, Form factor: ATX, Socket: Intel® 1700, Chipset: Intel® H610, Memory: DIMM x 2 / Max RAM: 64 GB, 3 year guarantee
Basic Specifications
- Manufacturer’s Part Number
- 121220
- EAN
- 4719072925024
Overview
- Form factor
- ATX
- Socket
- Intel® LGA1700
- Chipset
- Intel® H610
- Processor models supported
- Intel® Core™ 14th/ 13th/ 12th Gen Processors
- Operating systems supported
- Windows 11 or later
- Memory slots
- 2 x UDIMM (Max RAM: 64 GB)
- Memory standard
- DDR4
- Cooling features
- – Frozr AI cooling
General
- Colour
- Black
- Box contents
- – MSi PRO H610M-G DDR4 Motherboard
– Quick installation guide
– M.2 clip
– SATA cables x 2
– IO shield
– Driver disk
– MSi case badge - Dimensions
- 55 x 202 x 236 mm (H x W x D)
- Weight
- 0.7 kg
- Manufacturer’s guarantee
- 3 years
External connectivity
- Video output
- – HDMI 2.1 x 1
– DisplayPort 1.4 x 1
– VGA x 1 - Audio
- 3.5 mm jack x 1
Internal connectivity
- Expansion slots
- – PCIe 3.0 (x16 slot) x 1
– M.2 with E-key x 1 - Storage slots
- – SATA x 4 (6 GB/s)
– M.2 Gen3 (32Gbps slot) x 1 - Cooling
- – 4-pin CPU fan connector x 1
– 4-pin system fan connector x 1 - Power
- – 24-pin ATX x 1
– 8-pin 12V ATX x 1 - Buttons
- – Power button
- USB
- – USB 3.2 x 4
– USB 2.0 x 6 - Other internal connections
- – Front panel audio connector x 1
– System panel connectors x 2
– Chassis Intrusion connector x 1
– TPM module connector x 1
– Serial port connector x 1
– Clear CMOS jumper x 1
