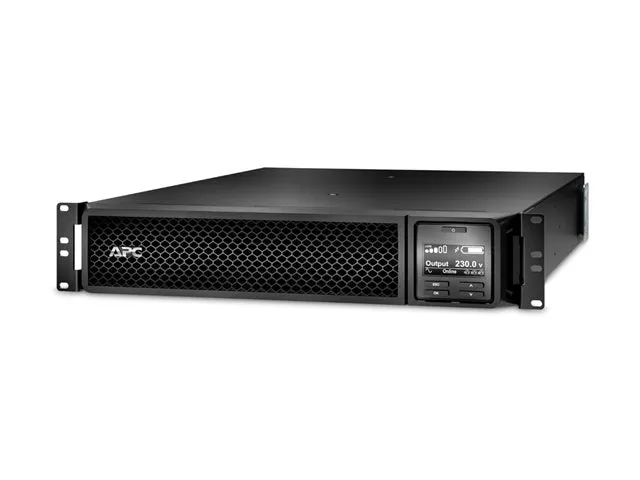

TieDex UK APC Smart-UPS SRT 1000VA RM – UPS – 1000 Watt – 1000 VA – with APC UPS Network Management Card AP9641
APC Smart-UPS SRT 1000VA RM – UPS (rack-mountable) – AC 230 V – 1000 Watt – 1000 VA – RS-232, USB, Ethernet 10/100 – output connectors: 6 – PFC – 2U – black – with APC UPS Network Management Card AP9641
Basic Specifications
- Manufacturer’s Part Number
- SRT1000RMXLI-NC
- EAN
- 0731304340263
- Manufacturer Warranty
- 3-year warranty
- Product Description
- APC Smart-UPS SRT 1000VA RM – UPS – 1000 Watt – 1000 VA – with APC UPS Network Management Card AP9641
- Model
- APC Smart-UPS SRT 1000VA RM
- Colour
- Black
- Weight
- 21 kg
- Input Connectors
- 1 x Europlug (power CEE 7/16), power BS 1363A, power IEC 60320 C14
- Device Type
- UPS – Power Factor Correction (PFC) – rack-mountable
- Product Type
- UPS
- Networking
- RS-232, USB, Ethernet 10/100
- Battery
- Lead Acid
- Dimensions (WxDxH)
- 43.2 cm x 50.5 cm x 8.5 cm
- Bundled with
- APC UPS Network Management Card AP9641
- Environmental Standards
- ENERGY STAR
- Power Capacity
- 1000 Watt / 1000 VA
- Output Voltage
- AC 220/230/240 V ± 2%
- Output connectors
- 6 x power IEC 60320 C13
- Run Time (Up To)
- 8.5 min at full load
- Input Voltage
- AC 230 V
- Rack Size
- 2U
General
- Device Type
- UPS – Power Factor Correction (PFC) – rack-mountable
- Height (Rack Units)
- 2U
- Colour
- Black
- Bundled with
- APC UPS Network Management Card AP9641
Networking
- Remote Management Interface
- RS-232, USB, Ethernet 10/100
Expansion / Connectivity
- Interfaces
- 1 x management (RS-232) – RJ-45 ¦ 1 x EPO (emergency power off) ¦ 1 x management (USB) ¦ 1 x management (Fast Ethernet) – RJ-45
- Expansion Slots
- 1 (total) / 0 (free) x SmartSlot
Dimensions & Weight (Shipping)
- Shipping Width
- 59.4 cm
- Shipping Depth
- 74.9 cm
- Shipping Height
- 24.6 cm
- Shipping Weight
- 29.6 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 – 95% (non-condensing)
- Sound Emission
- 50 dBA
Dimensions & Weight
- Width
- 43.2 cm
- Depth
- 50.5 cm
- Height
- 8.5 cm
- Weight
- 21 kg
Miscellaneous
- Cables Included
- Power cable 1.83 m ¦ USB cable – external
- Rack Mounting Kit
- Included
- Features
- LCD display, Eco-Mode, audible alarm, automatic self-test, cold-start function, reset breaker, LED indicators, internal bypass, hot-swappable batteries, firmware upgradable
- Compliant Standards
- REACH, RoHS, EAC, IP20
Software / System Requirements
- Software Included
- APC PowerChute Business Edition
Battery
- Technology
- Lead Acid
- Run Time (Up To)
- 8.5 min at full load ¦ 21.1 min at half load ¦ 9.8 min at 900 Watts ¦ 13.8 min at 700 Watts ¦ 59.6 min at 200 Watts
- Recharge Time
- 3 hours
- Features
- Maintenance free, sealed, leak-proof
Manufacturer Warranty
- Service & Support
- Limited warranty – 3 years ¦ Limited warranty – batteries – 2 years
Environmental Standards
- ENERGY STAR
- Yes
Power Device
- UPS Technology
- On-line
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 50 – 150 / 80 – 150 V
- Frequency Provided
- 50/60 Hz ± 3Hz
- Frequency Required
- 40 – 70 Hz
- Input Connectors
- 1 x Europlug (power CEE 7/16), power BS 1363A, power IEC 60320 C14
- Power Output Connectors Details
- 6 x power IEC 60320 C13
- Output Voltage
- AC 220/230/240 V ± 2% – 50/60 Hz
- Power Capacity
- 1000 Watt / 1000 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 432 Joules
- Circuit Protection
- Circuit breaker
Sustainability Information
- ENERGY STAR
- Yes
