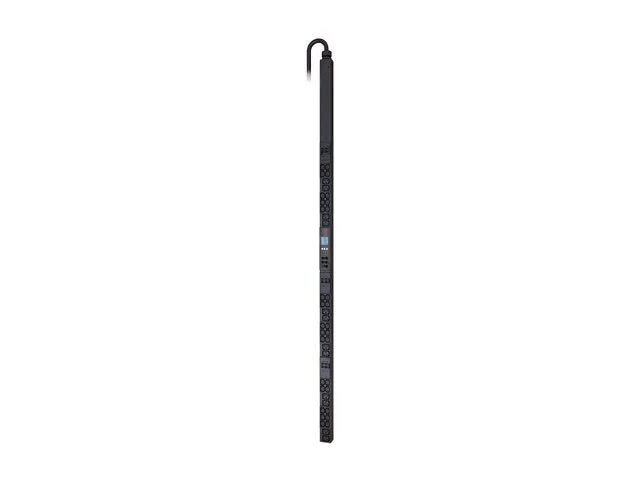

TieDex UK APC Metered Rack PDU – power distribution unit
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers.
APC Metered Rack PDU – Power distribution unit (rack-mountable) – AC 400 V – 3-phase – Ethernet, RS-232, USB – input: IEC 60309 32A – output connectors: 42 – 0U – black – for P/N: AR3103SP, AR3106SP, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT5KRMXLW-TW
Basic Specifications
- Manufacturer’s Part Number
- AP8886
- EAN
- 0731304289937
- Designed For
- P/N: AR3103SP, AR3106SP, AR3357X674, SMC1000I-2UC, SMC1000IC, SMX1000US, SMX1500RMNCUS, SMX1500RMUS, SMX2000LVNCUS, SMX2000LVUS, SMX2200RMLVUS, SMX3000HVTUS, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750US, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT5KRMXLTUS, SRT5KRMXLW-TW
- Manufacturer Warranty
- 2-year warranty
- Product Description
- APC Metered Rack PDU – power distribution unit
- Colour
- Black
- Weight
- 8.72 kg
- Input Connectors
- 1 x power IEC 60309 32A
- Device Type
- Power distribution unit – rack-mountable
- Product Type
- Power distribution strip
- Networking
- Ethernet, RS-232, USB
- Dimensions (WxDxH)
- 5.6 cm x 5.1 cm x 182.9 cm
- Remote Management Protocol
- SNMP, Telnet, HTTP, SSH
- Output Voltage
- 230 V
- Output connectors
- 30 x power IEC 60320 C13 ¦ 12 x power IEC 60320 C19
- Input Voltage
- AC 400 V
- Rack Size
- 0U
- Input Wiring
- 3-phase
- Output Connector(s)
- 30 x power IEC 320 EN 60320 C13 ¦ 12 x power IEC 320 EN 60320 C19
- Input Connector(s)
- 1 x power IEC 309 EN 60309 32A
- Output Connectors
- 42
General
- Device Type
- Power distribution unit – rack-mountable
- Height (Rack Units)
- 0U
- Colour
- Black
Compatibility Information
- Designed For
- P/N: AP5607, AP7950B, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3103SP, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, NBES0302, NBPD0160A, NBPD0171, NBPD0172, NBPD0180, NBWL0355A, NBWL0356A, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT1500RM1U, SMT1500RM2U, SMT1500RMI1U, SMT2200RM2UC, SMT3000I2U-BR, SMT3000RM2UC, SMT3000RMT2U, SMX1000US, SMX1500RMNCUS, SMX1500RMUS, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX2200RMLVUS, SMX3000HV, SMX3000HV-BR, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LV2U-BR, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMHV2U, SMX3000RMHV2UNC, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750-NMC, SMX750US, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10KRMXLI, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT5KRMXLW-TW, SRT6KRMXLI, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT8KRMXLI, SRT8KRMXLT, SRT8KRMXLT-IEC, SUA3000RMXL3U-BR, SURT3000XLI-ET, SURT5000XLIX438, SYA12K16RMICH, SYA16K16RMICH, SYA8K16RMICH, SYAF16KRMICH
Networking
- Remote Management Interface
- Ethernet, RS-232, USB
- Remote Management Protocol
- SNMP, Telnet, HTTP, SSH
Expansion / Connectivity
- Interfaces
- 1 x management (Ethernet) – RJ-45 ¦ 1 x serial ¦ 1 x USB
Dimensions & Weight (Shipping)
- Shipping Width
- 17 cm
- Shipping Depth
- 12 cm
- Shipping Height
- 205 cm
- Shipping Weight
- 11.6 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 – 95%
Dimensions & Weight
- Width
- 5.6 cm
- Depth
- 5.1 cm
- Height
- 182.9 cm
- Weight
- 8.72 kg
Miscellaneous
- Cables Included
- Power cable 1.8 m ¦ Serial cable – external
- Rack Mounting Kit
- Included
- Features
- LCD display, current meter, over current protection, overload protection
- Compliant Standards
- EN 61000-3-2, ICES-003, VDE, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, FCC Part 15 A, REACH
Manufacturer Warranty
- Service & Support
- Limited warranty – 2 years
Power Device
- Input Voltage
- AC 400 V
- Input Wiring
- 3-phase
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60309 32A
- Power Output Connectors Details
- 30 x power IEC 60320 C13 ¦ 12 x power IEC 60320 C19
- Output Voltage
- 230 V
- Max Electric Current
- 32 A
- Circuit Protection
- Circuit breaker
