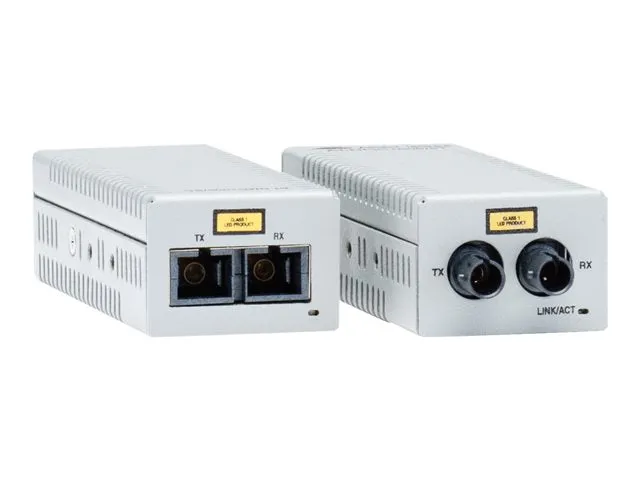

TieDex UK Allied Telesis AT DMC100/ST – fibre media converter – 100Mb LAN
Allied Telesis AT DMC100/ST – Fibre media converter – 100Mb LAN – 100Base-FX, 100Base-TX – RJ-45 / ST multi-mode – up to 2 km – 1310 nm
Basic Specifications
- Manufacturer’s Part Number
- AT-DMC100/ST-50
- Model
- Allied Telesis AT DMC100/ST
- Data Link Protocol
- 100Mb LAN
- Device Type
- Fibre media converter – RJ-45 / ST multi-mode
- Form Factor
- Desktop
- Dimensions (WxDxH)
- 3.18 cm x 9.14 cm x 2.16 cm
- Localisation
- Europe
- Weight
- 113 g
- Data Transfer Rate
- 100 Mbps
- Product Description
- Allied Telesis AT DMC100/ST – fibre media converter – 100Mb LAN
- Cabling Type
- 100Base-FX, 100Base-TX
- Max Transfer Distance
- 2 km
- Optical Wave Length
- 1310 nm
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 100Base-FX, 100Base-TX
- Data Link Protocol
- 100Mb LAN
- Data Transfer Rate
- 100 Mbps
- Optical Wave Length
- 1310 nm
- Max Transfer Distance
- 2 km
- Status Indicators
- System, link/activity
- Features
- Auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), Smart Missing Link (SML), USB powered, Automatic Link Restoration
- Compliant Standards
- IEEE 802.1Q
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 – 95% (non-condensing)
General
- Device Type
- Fibre media converter
- Form Factor
- Desktop
- Localisation
- Europe
Dimensions & Weight
- Width
- 3.18 cm
- Depth
- 9.14 cm
- Height
- 2.16 cm
- Weight
- 113 g
Expansion / Connectivity
- Interfaces
- 1 x Ethernet 100Base-FX – ST multi-mode female x 2 ¦ 1 x Ethernet 100Base-TX – RJ-45 female
Power
- Power Device
- External power adapter
Miscellaneous
- Compliant Standards
- FCC Class A certified, VCCI, C-Tick, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, RoHS, UL 60950-1, EN 60950-1, EN 55022 Class A
