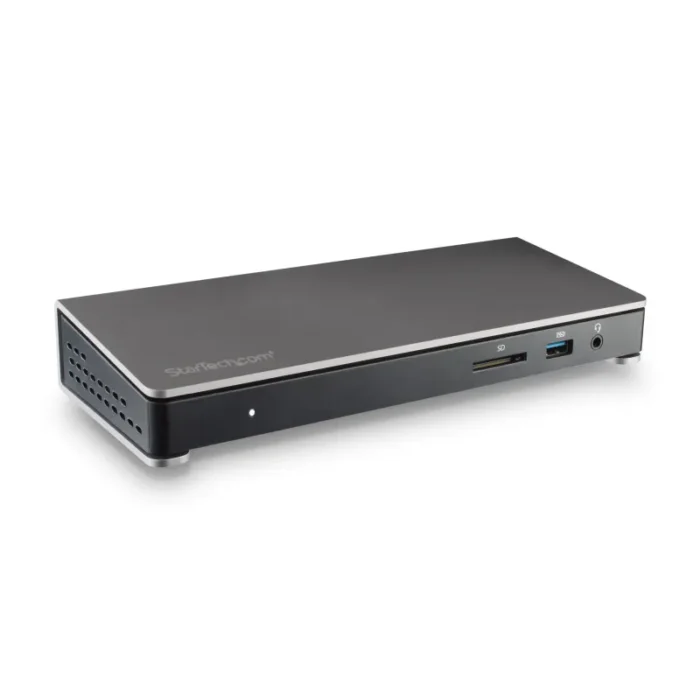

StarTech.com Thunderbolt 3 Dock – Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort – 85W Power Delivery Charging – 6-Port USB 3.0 Hub, SD 4.0, GbE, Audio – Windows & Mac
- HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Easy Driverless setup; Thunderbolt 3 (40Gbps); Dual 4K 60Hz (DP + TB3) video output or single monitor 5K 30Hz; 5x USB Hub; SD 4.0 card reader, Gigabit Ethernet, headset port; 85W PD
- COMPATIBILITY: Windows, macOS & Ubuntu; Works with all Thunderbolt 3/4 laptops; Extended dual displays on Apple M3 MacBook Air / Pro and M1 / M2 / M3 Max and Pro MacBooks; single Display on Apple M1 / M2 entry level MacBooks; Included USB-C to DP cable
- MORE USB DEVICE PORTS: TB3 docking station has a 6-port USB 3.1 Gen 1 5Gbps Hub (5x USB-A, 1x USB-C ports) w/ 1x BC 1.2 (1.5A) fast charging always-on port that works with or without laptop connected
- FLEXIBLE THUNDERBOLT 3 PORT: Downstream TB3 port supports 3 modes of operation: 2nd monitor for dual 4K 60Hz video utilizing direct GPU performance with no software or compression, daisy chain up to 5 TB3 peripherals, or connect USB Type-C accessories
- OUR ADVANTAGE: Includes power adapter that simultaneously provides 85W of Power Delivery to charge the laptop & full power to all ports; Connectivity Tools w/Network MAC Address Pass-Through, Windows Layout and more
Laptop Docking Station | Mac & Windows® | SD Card Reader | USB-C to DP Cable | 85W PD
Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.
Create a Dual-4K 60Hz Workstation
This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.
Connect your laptop to:
• 1 x 4K monitor via the DP Port
• 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)
OR
• 1 x 5K monitor via the DP and TB3 USB-C ports
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.

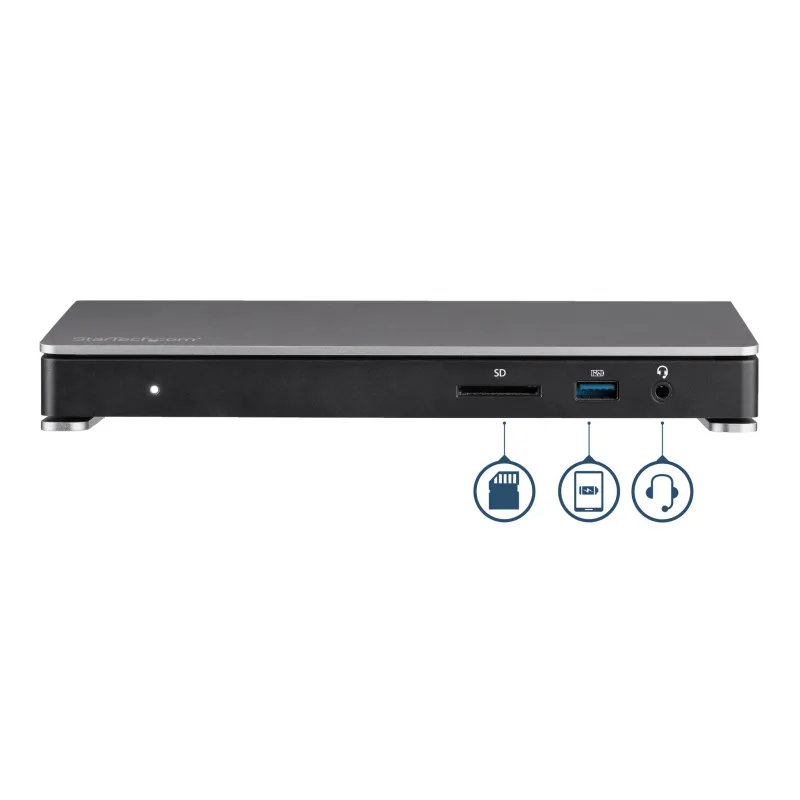

Plenty of Ports Including SD Card Reader
The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.
85W Power Delivery
Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
TB3DOCK2DPPU is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Thunderbolt 3 ports quantity | 2 |
| DisplayPorts quantity | 1 |
| USB Power Delivery up to | 85 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Certification | CE, FCC, REACH |
| UASP support | Yes |
| Housing material | Aluminium |
| Maximum digital resolution | 5120 x 2880 pixels |
| Data transfer rate | 40 Gbit/s |
| Compatible memory cards | MMC, MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Product colour | Black |
| Power | |
|---|---|
| Compatible power plug types | EU, UK |
| Power plug type | Type N |
| Power consumption (standby) | 180 W |
| Output voltage | 20 V |
| Output current | 9 A |
| Input current | 2.5 A |
| AC input voltage | 100 – 240 V |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 489 g |
| Height | 34 mm |
| Depth | 222 mm |
| Width | 87 mm |
| Packaging data | |
|---|---|
| Package weight | 1.5 kg |
| Package height | 90 mm |
| Package depth | 295 mm |
| Package width | 145 mm |
| Packaging content | |
|---|---|
| Cables included | AC, Thunderbolt, USB Type-C |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 480 mm |
| Master (outer) case height | 314 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Chipset | Intel – Alpine Ridge JHL6540, Texas Instruments – TPS65983, Fresco – FL1100EX, Intel – WGI210AT, C-Media – CM6533, Genesys Logic – GL3226 |
