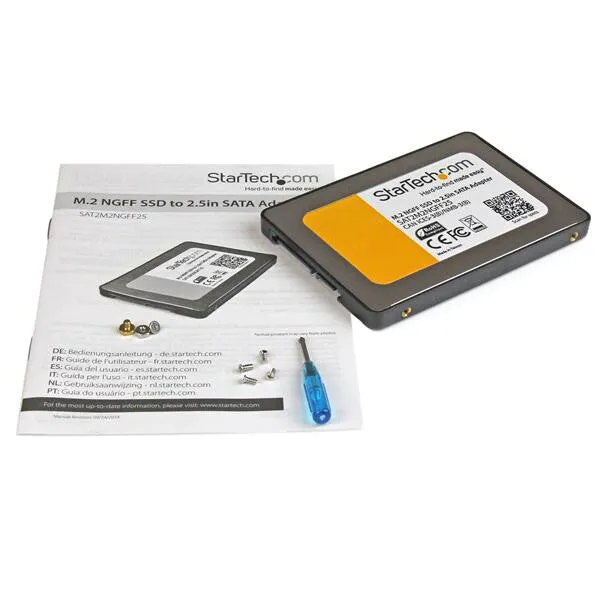

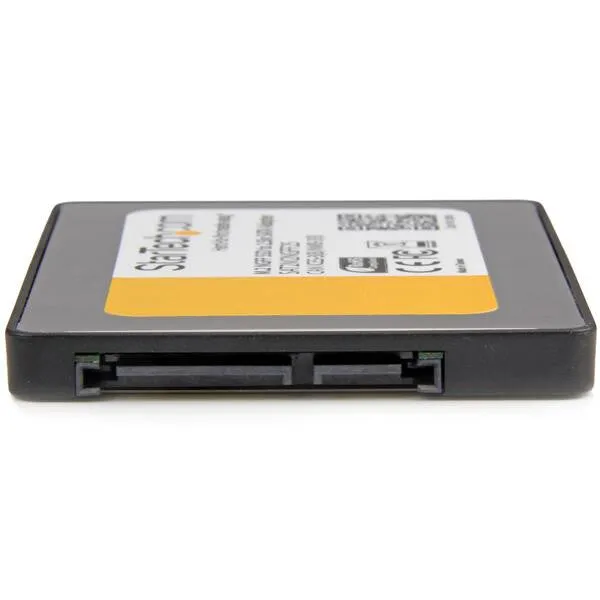

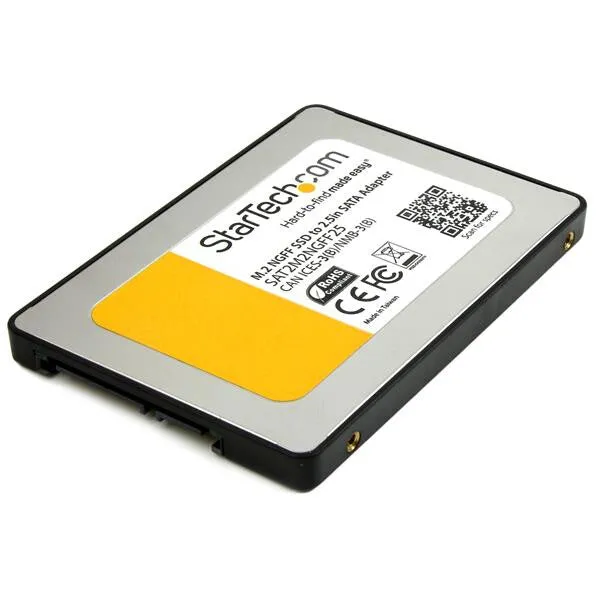

StarTech.com M.2 SSD to 2.5in SATA III Adapter – M.2 Solid State Drive Converter with Protective Housing
- Internal
- Host interface: SATA
- Output interface: M.2
- 6 Gbit/s
- Black
Convert an M.2 solid state drive into a standard 2.5in form factor 6Gbps SSD
Vastly increase system performance by replacing your 2.5” SATA hard drive with an M.2 solid state drive, using the SAT2M2NGFF25 M.2 SSD to SATA adapter.
The M.2 to SATA adapter features an enclosed housing that adds protection to your NGFF (Next Generation Form Factor) SSD. The added protection gives you the peace of mind to confidently use your M.2 drive in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.
Using an M.2 SSD in place of a platter drive better utilizes the full potential of your SATA III controller, by reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps — an ideal solution for further increasing the performance of a HyperDuo array.
For wide compatibility with all of the common M.2 solid state drives, the SAT2M2NGFF25 supports multiple drive heights including: 2230, 2242, 2260, 2280.
The SAT2M2NGFF25 is backed by a StarTech.com 2-year warranty, and lifetime technical support.
The StarTech.com Advantage
– Added protection for your SSD with enclosed housing
– Maximize system performance by replacing you 2.5in SATA platter drive with an M.2 SSD
– Broad compatibility with support for the most common M.2 NGFF SSD heights (2242, 2260, 2280)
| Ports & interfaces | |
|---|---|
| SATA revision | 3.0 |
| Output interface | M.2 |
| Host interface | SATA |
| Design | |
|---|---|
| Certification | CE, FCC, TAA, REACH |
| Hot-swap | No |
| Product colour | Black |
| Internal | Yes |
| Features | |
|---|---|
| Plug and Play | Yes |
| Data transfer rate (max) | 6 Gbit/s |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -10 – 85 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 54 g |
| Height | 8 mm |
| Depth | 98 mm |
| Width | 68 mm |
| Packaging data | |
|---|---|
| Package weight | 116 g |
| Package height | 32 mm |
| Package depth | 131 mm |
| Package width | 162 mm |
| Manual | Yes |
| Quantity | 1 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Material | Aluminium, Plastic |
