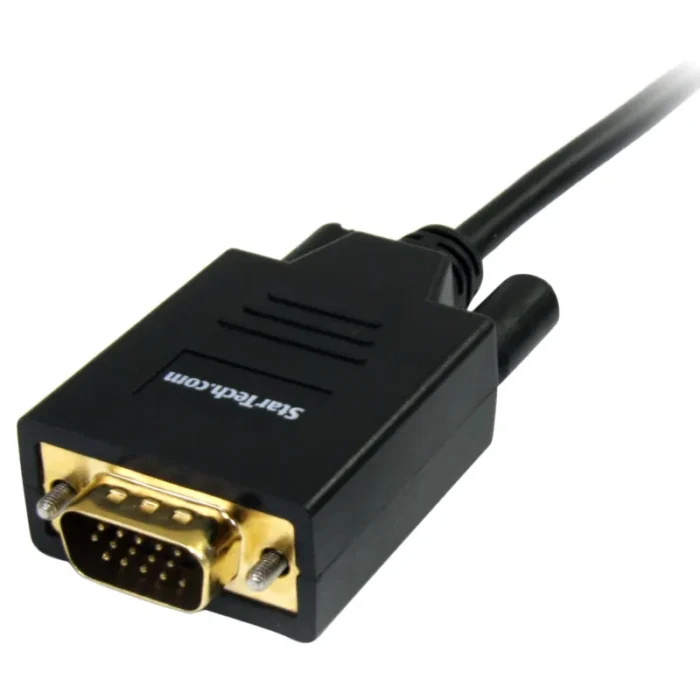

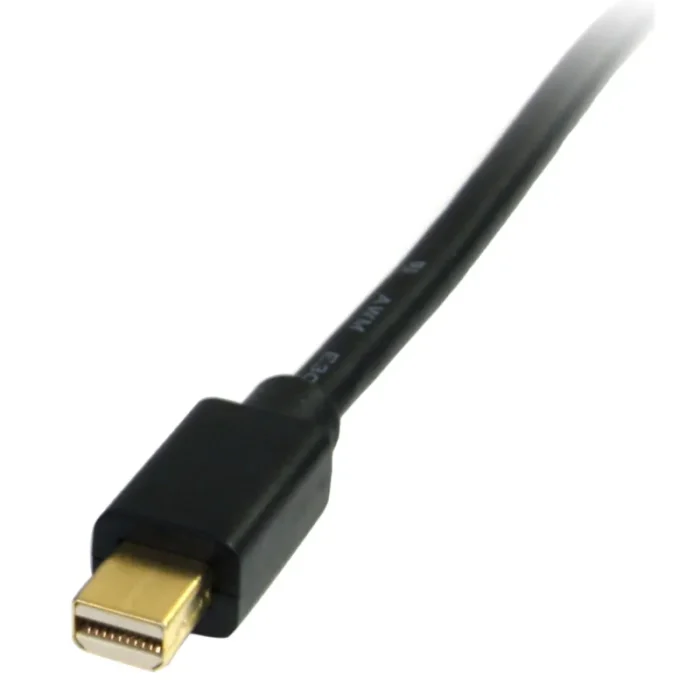

StarTech.com 6ft (2m) Mini DisplayPort to VGA Cable – Active Mini DP to VGA Adapter Cable – 1080p Video – mDP 1.2 or Thunderbolt 1/2 Mac/PC to VGA Monitor/Display – Converter Cord
- MINI DISPLAYPORT TO VGA CABLE: 6ft (1.8m) Mini DisplayPort 1.2 (HBR2) to VGA cable connects a VGA display/monitor/projector supporting 1920×1200 & 1080p at 60Hz; DPCP & HDCP 1.4 / EDID & DDC pass-through ensure compatibility between source & display
- HOST COMPATIBILITY: Active digital to analog converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INTEGRATED DISPLAY CABLE: Mini DisplayPort to VGA adapter cable has slim & flexible design with video adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office
- INCREASE PRODUCTIVITY: Connect a VGA monitor or projector, or add a second display to your workstation using this mDP to VGA display adapter cable / Supports VGA screw locking cable to prevent accidental disconnection / Gold-plated connectors
- EASY TO USE: With no software or drivers required, the Mini DP to VGA converter cord works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks
Connect your VGA monitor to a Mini DisplayPort-equipped computer using a single cable
The MDP2VGAMM6 6-foot Mini DisplayPort to VGA Cable is a cost-effective Mini DisplayPort to VGA link that lets you connect a VGA monitor to a PC or Mac® with a Mini DisplayPort output – saving the expense of upgrading the monitor for compatibility. The adapter is the perfect accessory for any of your Microsoft® Surface™ Pro or MacBook® devices that support mDP.
This all-in-one, easy to use Mini DisplayPort/VGA cable requires no additional converters or adapters, and no driver or software installation.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 3-year warranty.
The StarTech.com Advantage
| Features | |
|---|---|
| Converter type | Active video converter |
| Plug and Play | Yes |
| Product colour | Black |
| HBR2 support | Yes |
| Supported video modes | 1080p |
| Maximum resolution | 1920 x 1200 pixels |
| DisplayPort Content Protection (DPCP) | Yes |
| DisplayPort version | 1.2 |
| HDCP version | 1.4 |
| HDCP | Yes |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | VGA (D-Sub) |
| Connector 1 | Mini DisplayPort |
| Cable length | 1.8 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | 0 – 70 °C |
| Operating temperature (T-T) | 5 – 35 °C |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 77 g |
| Packaging data | |
|---|---|
| Package weight | 86 g |
| Package height | 20 mm |
| Package depth | 220 mm |
| Package width | 200 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case height | 185 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case width | 312 mm |
| Harmonized System (HS) code | 84733080 |
