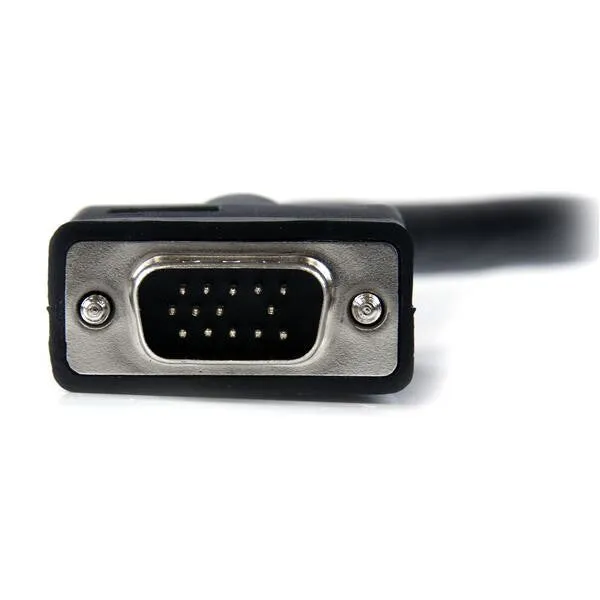

StarTech.com 25 FT COAX HIGH RESOLUTION VGA
- 7.6 m
- VGA (D-Sub) Straight Male
- VGA (D-Sub) Straight Male
- AWG wire size: 28 Plug and Play
- Cable jacket material: Polyvinyl chloride (PVC)
- Black
- 1 pc(s)
Connect your VGA monitor with the highest quality connection available
The MXT101MMHQ25 High Resolution VGA Cable (25ft) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920×1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture “ghosting” and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
The StarTech.com Advantage
– Extends your VGA signal to work with your monitor, splitters, and projectors
– Supports high resolution VGA video (1920×1200 or above), suitable for a wide range of applications
– Ferrite cores help eliminate EMI interference
– Backed by StarTech.com lifetime warranty
| Features | |
|---|---|
| Plug and Play | Yes |
| Impedance | 75 Ω |
| Number of conductors | 14 |
| Ferrite bead | Yes |
| Cable rating | CMG (CM) |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector contacts plating | Nickel |
| AWG wire size | 28 |
| Cable shielding | Aluminum mylar foil |
| Product colour | Black |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | VGA (D-Sub) |
| Connector 1 | VGA (D-Sub) |
| Cable length | 7.6 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 80% |
| Storage temperature (T-T) | -20 – 80 °C |
| Operating temperature (T-T) | 0 – 60 °C |
| Certificates | |
|---|---|
| Certification | UL2919 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 818 g |
| Cable diameter | 9 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package weight | 820 g |
| Package height | 312 mm |
| Package depth | 245 mm |
| Package width | 42 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
