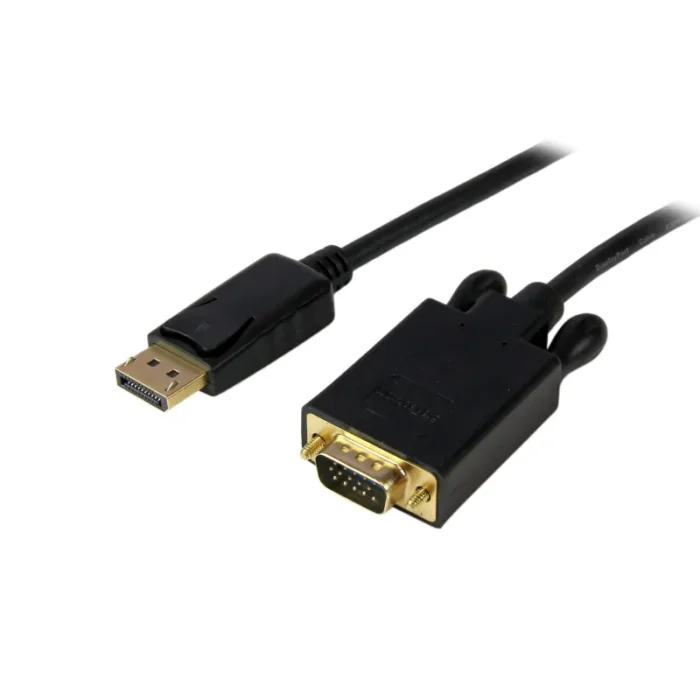

StarTech.com 15ft (4.6m) DisplayPort to VGA Cable – Active DisplayPort to VGA Adapter Cable – 1080p Video – DP to VGA Monitor Cable – DP 1.2 to VGA Converter – Latching DP Connector
- DISPLAYPORT TO VGA CABLE: 15ft (4.6m) DisplayPort 1.2 (HBR2) adapter cable lets you connect a single VGA display supporting 2048×1280, 1920×1200 & 1920×1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display
- COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- INTEGRATED DISPLAY CABLE: Adapter cable has slim & flexible design w/ adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office; 15′ length supports longer distance than traditional VGA cable

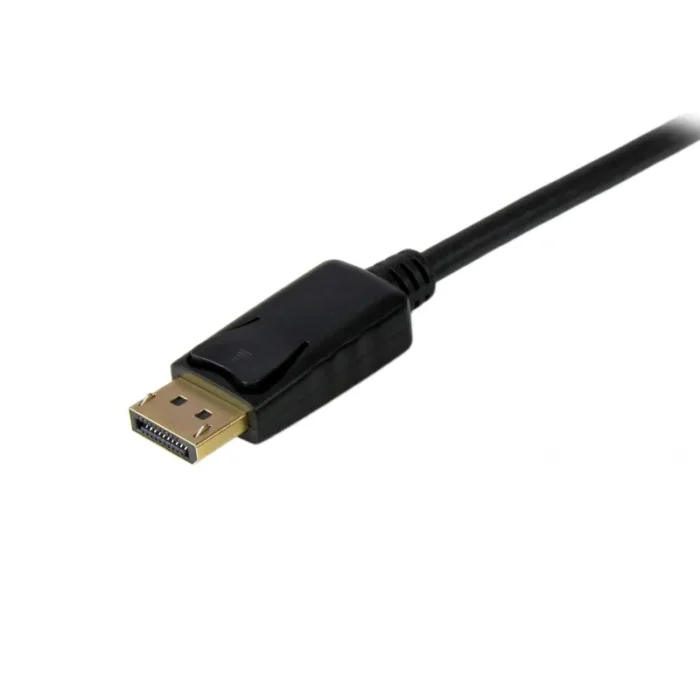

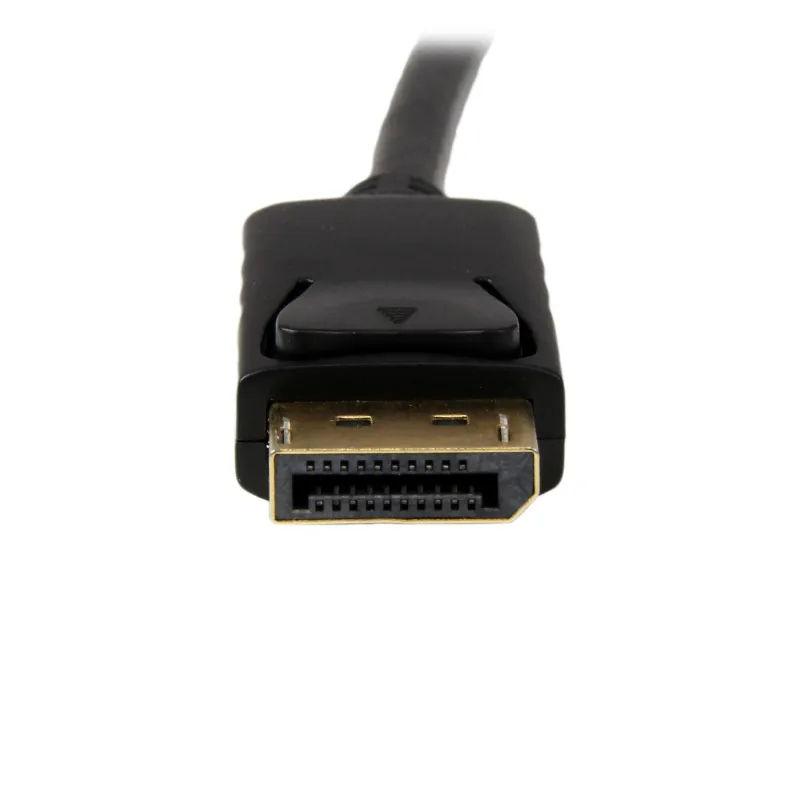

- LATCHING DISPLAYPORT & SCREW LOCKING VGA: Latching DP connector ensures a solid host connection, and chip built into VGA connector minimizes signal loss / Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection
- EASY TO USE: With no software or drivers required, the DP to VGA video converter cable/cord works with any OS including macOS, Windows & Ubuntu / DP Source to VGA Monitor/Display/Projector/ DisplayPort Male to VGA Male Cable
Connect a DisplayPort-equipped PC to a VGA monitor/projector, with a 15ft long cable
The DP2VGAMM15B 15ft active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a VGA monitor or projector at a longer distance than a standard-length cable would support, while saving the expense of additional adapters.
Plus, because the converter cable supports video resolutions up to 1920×1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.
The DP2VGAMM15B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
| Features |
| Chipset |
Analogix – 9832 |
| Product colour |
Black |
| HBR2 support |
Yes |
| Maximum refresh rate |
60 Hz |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Maximum resolution |
2048 x 1280 pixels |
| DisplayPort version |
1.2 |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 |
DisplayPort |
| Cable length |
4.6 m |
| Operational conditions |
| Operating relative humidity (H-H) |
40 – 85% |
| Storage temperature (T-T) |
-10 – 70 °C |
| Operating temperature (T-T) |
0 – 60 °C |
| Certificates |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Height |
15 mm |
| Depth |
4600 mm |
| Width |
40 mm |
| Weight |
218 g |
| Packaging data |
| Package height |
20 mm |
| Package depth |
240 mm |
| Package width |
160 mm |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Products per master (outer) case |
60 pc(s) |
| Master (outer) case height |
435 mm |
| Master (outer) case length |
415 mm |
| Master (outer) case width |
420 mm |
| Harmonized System (HS) code |
84733080 |
