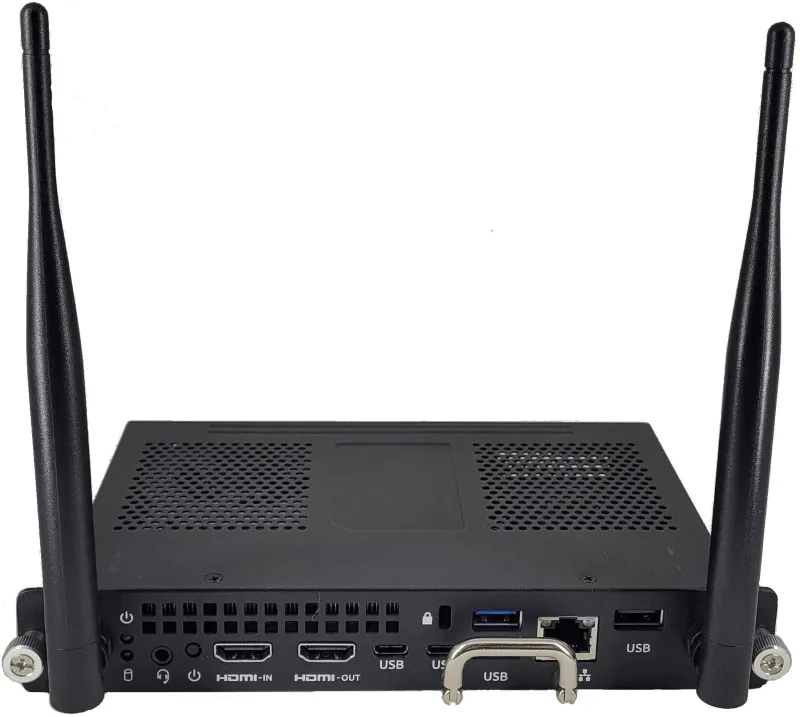

SMART Technologies UGK-PCM11-I7V Thin Client Windows 10 Pro 910 g Black i7-1185G7
- Intel® Core™ i7 i7-1185G7
- 8 GB DDR4-SDRAM 2 x 4 GB
- 256 GB SSD
- Intel Iris Xe Graphics
- Ethernet LAN Bluetooth 5.2
- Windows 10 Pro
SMART Open Pluggable Specification (OPS) PC modules provide a hassle-free Windows® 10 Pro solution based on 11th generation Intel® Core™ processors, and are designed specifically to work with SMART Board® interactive displays. Available in two standard configurations, all OPS PC modules in the PCM11 series are WHQL (Windows Hardware Quality Labs) certified and fully licensed with Windows 10 Pro out of the box. Install the OPS PC module in a SMART Board interactive display’s OPS slot to provide a complete 4K UHD Windows 10 solution at your fingertips, without the need for an external device or additional cables.
Install familiar Windows software applications, such as SMART Notebook® collaborative learning software, SMART TeamWorks™ visual collaboration software, and SMART Meeting Pro® software, and access the internet directly through your existing interactive display’s network connection. Upgrades and service for the OPS PC module are easy to perform without removing the interactive display from its mounting.
| Processor |
| Processor cache |
12 MB |
| Processor boost frequency |
4.8 GHz |
| Processor cores |
4 |
| Processor model |
i7-1185G7 |
| Processor generation |
11th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Memory layout (slots x size) |
2 x 4 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| SSD form factor |
M.2 |
| Storage drive interface |
M.2 |
| Storage media |
SSD |
| Total storage capacity |
256 GB |
| Graphics |
| Maximum resolution |
7680 x 4320 pixels |
| On-board graphics card model |
Intel Iris Xe Graphics |
| Network |
| WLAN controller manufacturer |
Intel |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN |
Yes |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ports & interfaces |
| HDMI ports quantity |
2 |
| DC-in jack |
Yes |
| Headphone outputs |
1 |
| USB Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
| LED indicators |
HDD, Power |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Display |
| Display included |
No |
| Software |
| Trusted Platform Module (TPM) |
Yes |
| Operating system installed |
Windows 10 Pro |
| Power |
| Power consumption (max) |
60 W |
| AC input voltage |
12 – 19 V |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Certificates |
| Certification |
UL Recognized, FCC, ISED, CONEG Packaging, California Prop 65, CE, UKCA, REACH, RoHS, Battery, Packaging, POP, RCM Mark, WHQL |
| Weight & dimensions |
| Weight |
910 g |
| Height |
30 mm |
| Width |
200 mm |
| Packaging data |
| Package height |
70 mm |
| Package depth |
220 mm |
| Package width |
270 mm |
| Logistics data |
| Harmonized System (HS) code |
84713000 |
