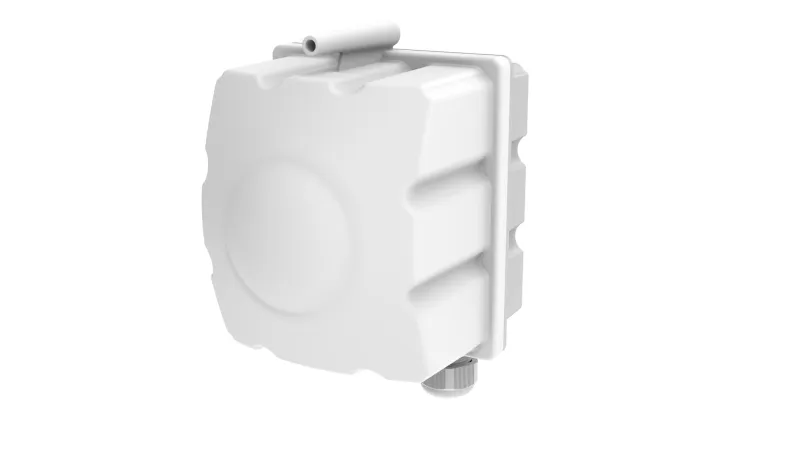

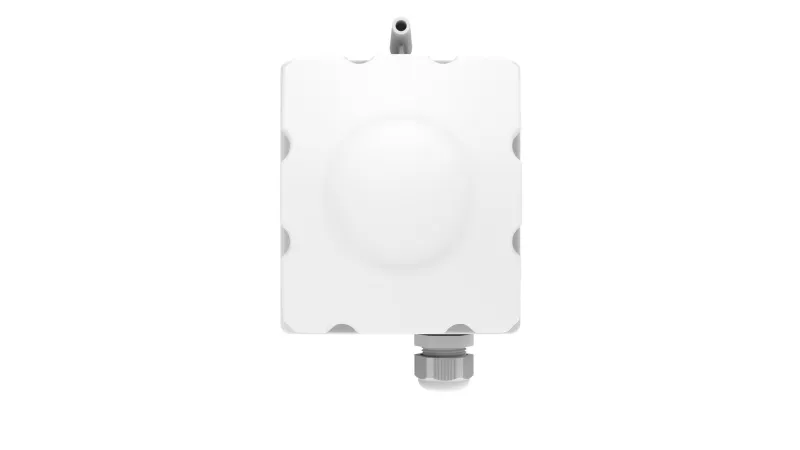

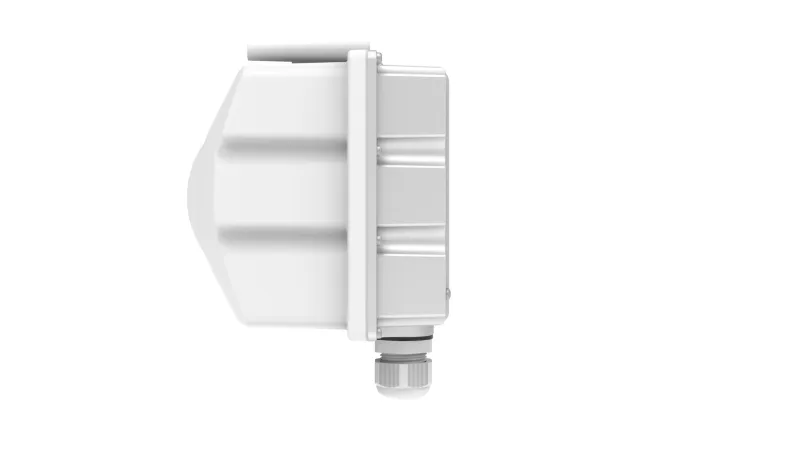

SilverNet SIL STREAM 60L bridge/repeater Network bridge 2500 Mbit/s White
- Up to 2.5Gbps Full Duplex Aggregate Throughput
- 6 Channels or 12 Channels supported in the 57-71 GHz Band
- Up to 16QAM Modulation
- Over-The-Air (OTA) Security, AES+ 256 Encryption
- High Gain Antennae with Beamforming Technology
- IP67 Rated
- High power 55 EIRP
- Speed test
- Supports QoS with 4 Service Classes
- Supports Layer 2 Forwarding including:
- VLAN Transparent Transmission
- Management VLAN
- 2 Year Warranty as Standard
The SIL STREAM 60L enhances the impressive specifications of the 605 by extending its range with a precision antenna, achieving up to 2KM with Line of Sight (LOS). Despite its ultra-compact dimensions (12.5x11x12cm), the 60L delivers robust performance, offering 6/12 channels, 2.5Gbps of available throughput, and 256-bit AES+ over-the-air data security.
The SIL STREAM 60L comes with a 2-year warranty, which is extendable to 5 years, and integrates seamlessly with our complimentary NMS SilverView.
If you’re aiming to establish a secure wireless network, your search ends here. SilverNet provides the perfect end-to-end products for your needs.
Note
In the UK, OFCOM ” have introduced a new ‘Spectrum Access: EHF’ licence to enable simple, flexible access to over 32 GHz of radio spectrum across four bands”, including 57-71GHz.
Any equipment operating with an EIRP of 40-55dBm will require the owner or operator to have a EHF Licence. The use of this higher power equipment is also restricted to fixed outdoor use only.
The fee for the licence is currently £75, renewable every five years and covers unlimited devices and locations.
For more information please visit the Ofcom website
https://www.ofcom.org.uk/manage-your-licence/radiocommunication-licences/spectrum-access-ehf
| Data transmission | |
|---|---|
| Supported data transfer rates | 10, 100, 1000, 2500 |
| Maximum transfer distance | 2000 m |
| Maximum data transfer rate | 2500 Mbit/s |
| Antenna | |
|---|---|
| Antenna gain level (max) | 32 dBi |
| Antenna type | 1×1 |
| Antenna design | Internal |
| Wireless LAN features | |
|---|---|
| Outdoor range | 2000m |
| Output power (dBm) | 55 EIRP |
| Modulation | 16-QAM, BPSK, QPSK |
| Channels quantity | 12 channels |
| Frequency band | 57-71 GHz |
| Network | |
|---|---|
| Static IP | Yes |
| Dynamic IP | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Ethernet LAN interface type | Multi-Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired & Wireless |
| Security | |
|---|---|
| Security features | Over-The-Air Security |
| Security algorithms | 256-bit AES |
| Management features | |
|---|---|
| Wireless statistics | Yes |
| DHCP client | Yes |
| Web-based management | Yes |
| Management protocols | VLAN, MIB, SNMP V2 / V3 |
| Features | |
|---|---|
| Network Time Protocol (NTP) client | Yes |
| Quality of Service (QoS) support | Yes |
| International Protection (IP) code | IP67 |
| Automatic Transmit Power Control (ATPC) | Yes |
| Power LED | Yes |
| LED indicators | LAN, Power, Signal strength, WLAN |
| Product colour | White |
| Mounting type | Pole/Wall |
| Product type | Network bridge |
| Power | |
|---|---|
| DC output current | 0.5 A |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 17 W |
| Power consumption (max) | 41 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -20 – 60 °C |
| Certificates | |
|---|---|
| Certification | FCCICCEVCCITELECRCM |
| Weight & dimensions | |
|---|---|
| Weight | 800 g |
| Height | 125 mm |
| Depth | 120 mm |
| Width | 110 mm |
| Other features | |
|---|---|
| Warranty period | 2 year(s) |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Antenna included | Yes |
| Power supply included | Yes |
| Mounting bracket(s) included | Yes |
| PoE+ Injector(s) | Yes |
| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
| Packaging data | |
|---|---|
| Package width | 185 mm |
| Package depth | 286 mm |
| Package height | 135 mm |
| Package weight | 1.92 kg |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
- SIL STREAM 60GHz Web UI Manual
- SIL STREAM 60GHz Operating Manual
- SIL STREAM 60GHz Range Datasheet
