Pump-Away Mobile Oil Drainer 75L

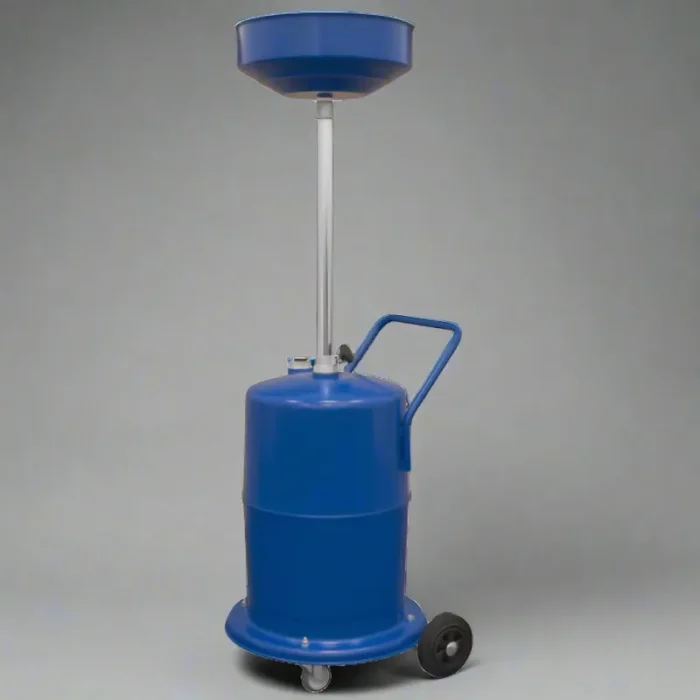

Sealey AK450DX Pump-Away Mobile Oil Drainer 75L
The Sealey AK450DX oil drainer solves practical needs for vehicle maintenance. With a 75L capacity tank and adjustable height range, this unit handles oil changes efficiently. The telescopic funnel with grid filter helps prevent contamination, while the female dry-fit coupling allows easy connection to the AK450DP Pump-Away Station. A full drum indicator prevents overflow during operation.
Key Features & Benefits
Large 75L Collection Capacity
Complete multiple oil changes before emptying the unit, reducing downtime and increasing workshop productivity.
Adjustable Height Range: 890-1620mm
Adapts to various vehicle heights, allowing use with cars, vans, and commercial vehicles. The wide adjustment range increases usability across different service bay configurations.
18L Collection Bowl with Telescopic Funnel
Reduces splashback and spillage during oil draining operations, helping maintain a clean workshop environment and meeting health and safety requirements.

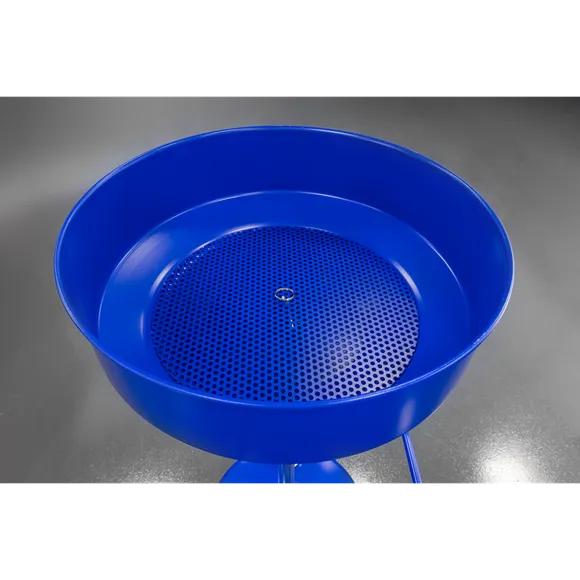

Integrated Grid Filter
Catches larger debris during oil drainage, preventing contamination of the main reservoir and simplifying disposal.
Female Dry-Fit Coupling
Creates a secure connection to the AK450DP Pump-Away Station for clean, controlled oil transfer without manual handling of heavy oil-filled containers.
Full Drum Indicator
Alerts users when the 75L capacity is reached, preventing overflow and workplace hazards.
Air Discharge System
Enables efficient emptying of the reservoir using workshop air supply, reducing manual handling and speeding up the disposal process.
0.5 Bar Oil Discharge Pressure
Provides controlled oil transfer rate during disposal, minimising risk of spills while maintaining good flow rate.
Technical Specifications
| Model No | AK450DX |
| Brand | Sealey |
| Capacity | 75L |
| Collection Bowl Capacity | 18L |
| Maximum Height to Pan | 1620mm |
| Minimum Height to Pan | 890mm |
| Air Discharge | Yes |
| Gravity Discharge | No |
| Gravity Feed | Yes |
| Pump Discharge | No |
| Suction Probe | No |
| Oil Discharge Pressure | 0.5 bar |
| Temperature Range | <55°C |
| Nett Weight | 25.35kg |
