Peerless SUA740 101.6 cm (40″) Black
- Fits displays with VESA® mounting patterns 200 x 100 and 200 x 200mm
- Internal cable management provides clean, professional installation finish
- Up to ±90° of side-to-side swivel
- Added ±5° of roll for post-installation display leveling without the use of tools
- Up to ±0.5″ (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning

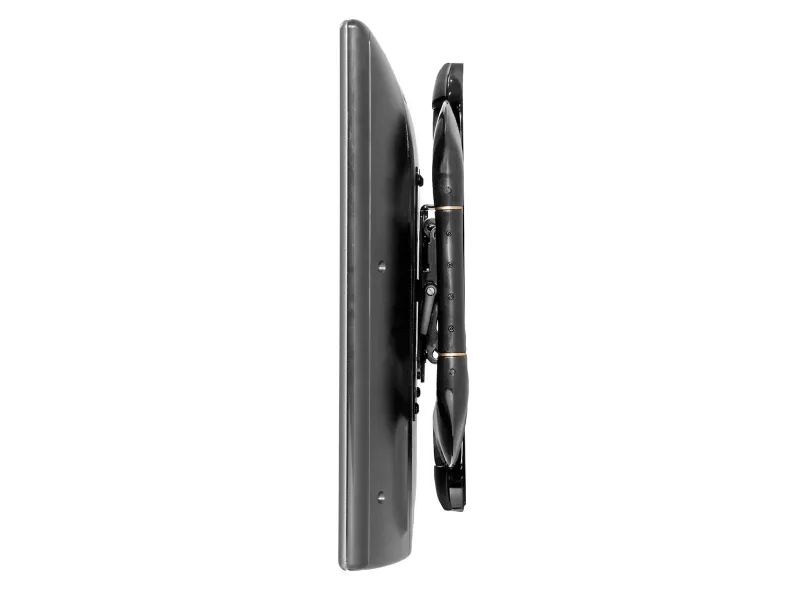

- Arm retracts to 1.74″ (44mm) and extends up to 24.74″ (628mm) from wall
- One-Touch™ tilt mechanism allows adjustment of +15/-5° without the use of tools

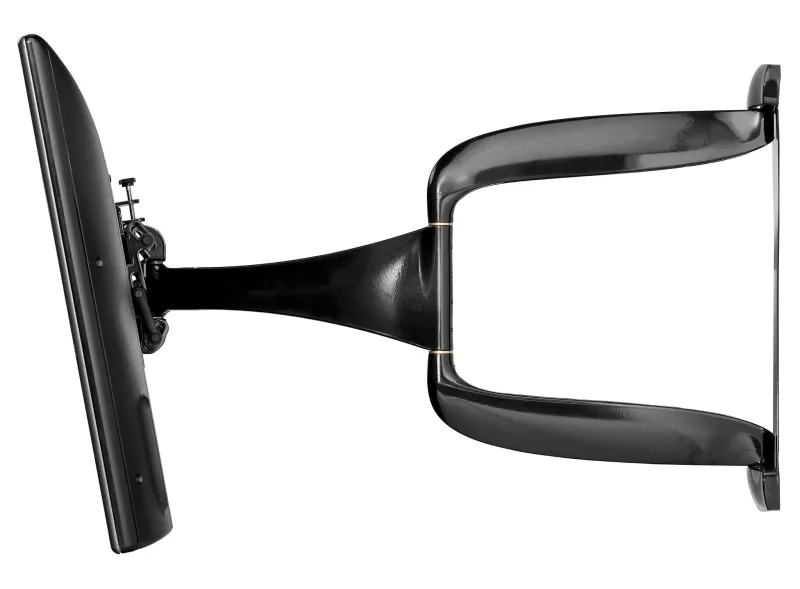

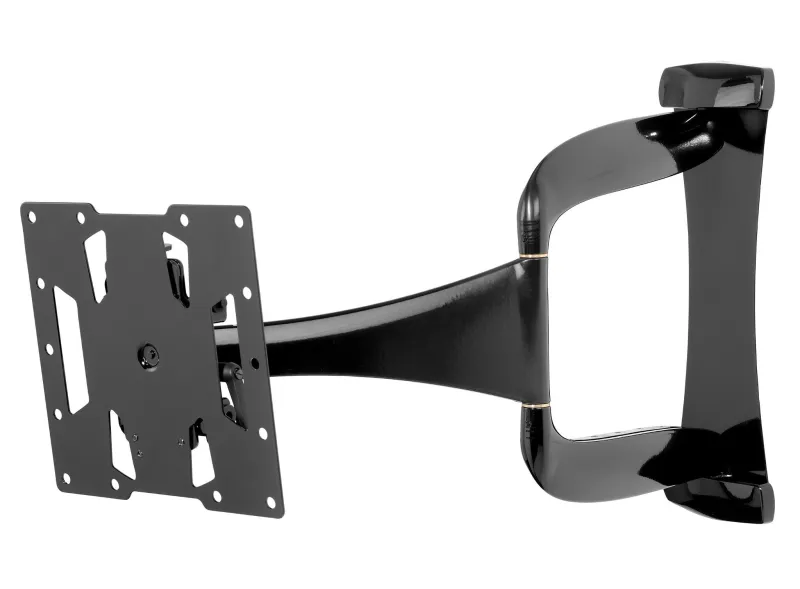

One of the thinnest wall arm mounts on the market, the Peerless-AV® DesignerSeries™ Ultra Slim Articulating Wall Mount is designed exclusively for ultra-thin displays. The SUA74P’s One-Touch™ tilt mechanism provides effortless movement of the display for the perfect viewing experience, and vertical adjustment allows the display to be raised or lowered by ½” after installation to fine-tune the positioning. With a gloss Black finish and internal cable management, the SUA74P provides a clean, professional look that matches any décor.
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Maximum VESA mount | 200 x 200 mm |
| Minimum VESA mount | 200 x 100 mm |
| Mounting type | Wall |
| Maximum screen size | 101.6 cm (40″) |
| Minimum screen size | 109.2 cm (43″) |
| Maximum weight capacity | 27 kg |
| Ergonomics | |
|---|---|
| Distance to the wall (max) | 62.8 cm |
| Distance to the wall (min) | 4.4 cm |
| Cable management | Yes |
| Swivel angle range | -90 – 90° |
| Tilt angle range | -5 – 15° |
| Design | |
|---|---|
| Certification | RoHS |
| Product colour | Black |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 4.58 kg |
| Height | 410 mm |
| Depth (max) | 62.8 cm |
| Depth (min) | 4.4 cm |
| Width | 416 mm |
| Packaging data | |
|---|---|
| Package weight | 6.01 kg |
| Package height | 86 mm |
| Package depth | 495 mm |
| Package width | 540 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
