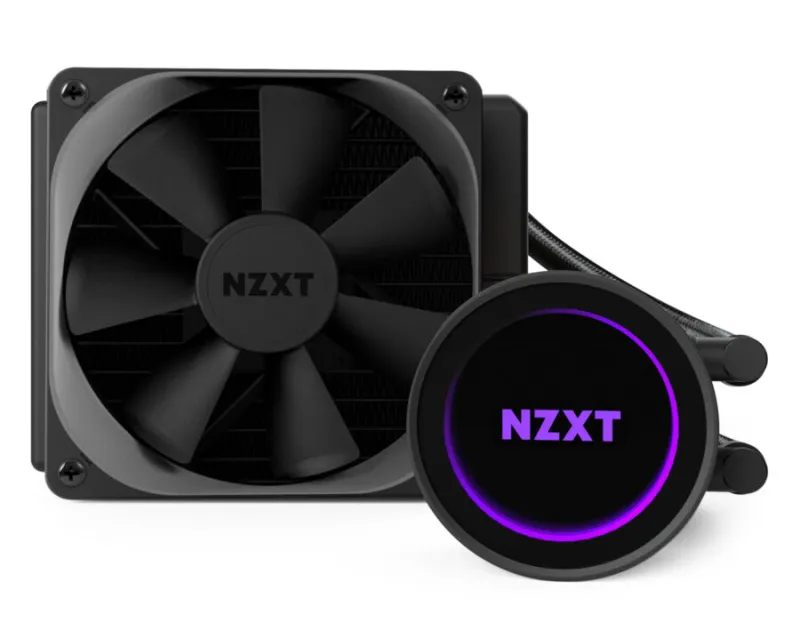

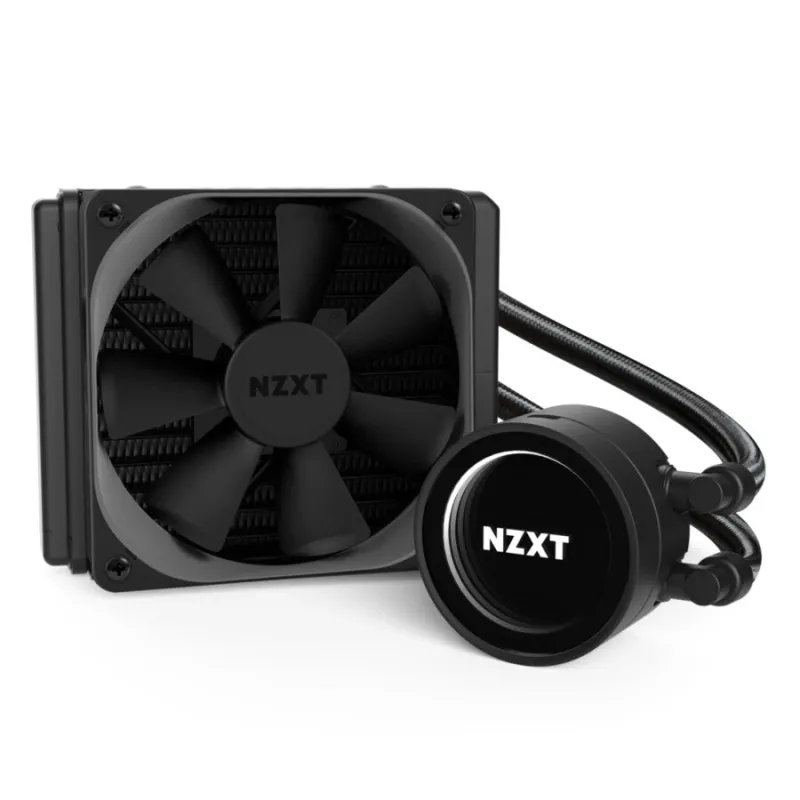

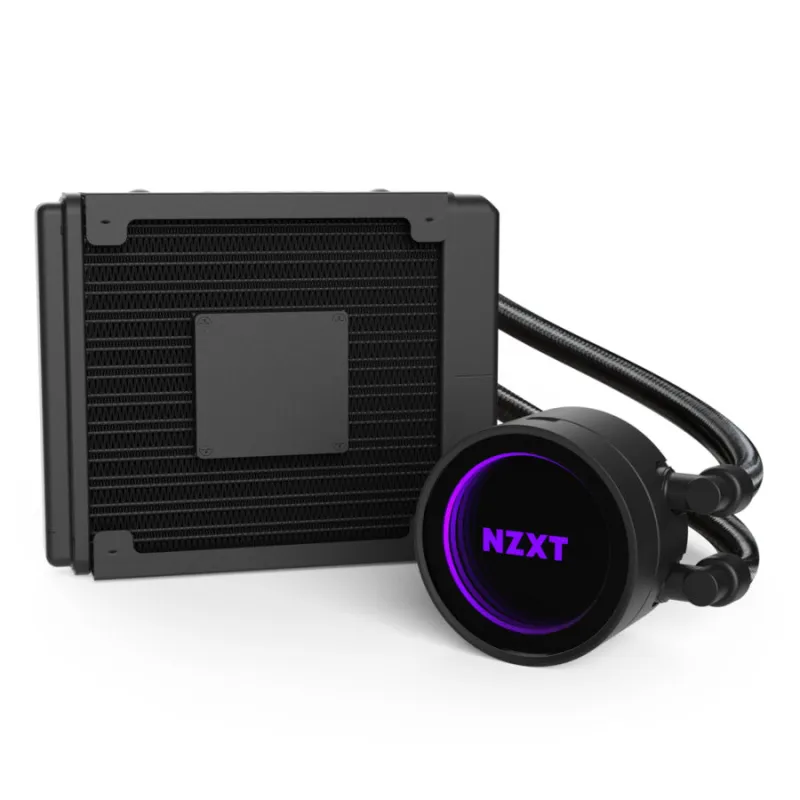

NZXT Kraken M22 Processor All-in-one liquid cooler 12 cm Black
- Individually addressable RGB lighting and infinite mirror design
- CAM-powered for complete software control, via desktop or mobile app
- Advanced lighting modes for a fully dynamic lighting experience
- Includes Aer P120 radiator-optimized fan
- Reinforced, extended tubing for increased durability
- 3-year warranty
- The product is not compatible with Kraken G12
The Kraken M22 features two individually addressable RGB channels and our signature infinite-mirror effect for stunning lighting, using CAM’s intuitive controls. It includes precision engineered fans and premium build quality, and is backed by the assurance of a 3-year warranty.
LIGHT YOUR WAY
Add amazing color and lighting to your CPU cooler with advanced RGB modes and infinite-mirror effect. Using CAM’s intuitive dashboard you can access sophisticated RGB controls with ease, including customizable presets or reactive modes that respond to changes in system conditions, such as temperature or audio output.
EFFICIENT AND CUSTOMIZABLE RADIATOR FANS
The Aer P120 radiator fans are designed for liquid-cooling perfection. Featuring a chamfered intake and fluid dynamic bearings, they deliver silent operation, durability, and powerful cooling performance. They can also be customized using removable color trims (sold separately).
REINFORCED EXTENDED TUBING
Fine nylon sleeves are added to strengthen the rubber tubing. As an added protective layer, it shields your Kraken cooler tubes from potential damage during handling.
| Performance | |
|---|---|
| Pump motor speed | 3000 RPM |
| Fan speed (max) | 2000 RPM |
| Pump motor speed (min) | 2700 RPM |
| Pump motor speed (max) | 3300 RPM |
| Fan speed (min) | 500 RPM |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 36 dB |
| Fan noise level (min) | 21 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.93 mmH2O |
| Minimum air pressure | 0.18 mmH2O |
| Maximum airflow | 73.11 cfm |
| Minimum airflow (imperial) | 18.28 cfm |
| Compatible processor series | AMD A, AMD Athlon, AMD Athlon II, AMD Athlon X2, AMD Athlon™ X4, AMD FX™, AMD Phenom, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Blue, Green, Red |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Material | Aluminium, Copper, Nylon, Rubber |
| Product colour | Black |
| Power | |
|---|---|
| Fan voltage | 2 V |
| Fan current | 0.32 A |
| Fan power consumption | 3.84 W |
| Weight & dimensions | |
|---|---|
| Fan thickness | 2.6 cm |
| Weight | 880 g |
| Waterblock height | 4.8 cm |
| Waterblock depth | 6.5 cm |
| Waterblock width | 6.5 cm |
| Tube length | 40 cm |
| Radiator height | 3.2 cm |
| Radiator depth | 12 cm |
| Radiator width | 15.2 cm |
| Packaging content | |
|---|---|
| CPU bracket(s) | Yes |
| CPU socket spacer(s) | Yes |
| Screws included | Yes |
| Mounting kit | Yes |
| Other features | |
|---|---|
| Tube material | Rubber |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
