NETGEAR WB7630 network management device Ethernet LAN Wi-Fi
- 50 user(s)
- Ethernet LAN IEEE 802.11e, IEEE 802.11i, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Wi-Fi Web-based management Access Control List (ACL) VLAN support
- Wired & Wireless VGA AC (power) in

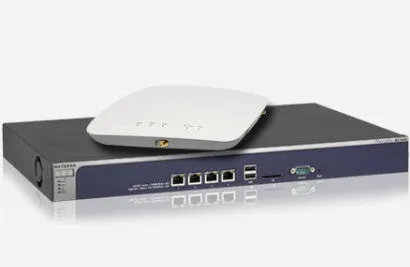

ProSAFE Business Wireless Controller Bundle
Business Wireless Controller Bundle with ten 802.11ac (3×3) WAC730 Access Points
The WB7630 Business Controller Bundle is the perfect offer for mid sized businesses delivering wireless with high performance 802.11 access points. The package contains one (1) WC7600 Business Wireless Controller, ten (10) WAC730 802.11ac Wireless Access Points, and one (1) WC10APL license for 10 Access Point management.
Performance
Centralized management of WC7600 Business Wireless Controller with redundancy as option
Premium performance of the WAC730 AP with 2 streams of data for 2.4 GHz (450 Mbps) and 5 GHz (1.3 Gbps) of reliable data delivery 802.11ac beamforming to improve range, minimizes interference while maximizing data rates Internal antennas for maximum RF performance
Scalability
Each WB7630 wireless bundle includes one (1) WC7600 Premium Wireless Controller, ten (10) WAC730 Business Dual Band 802.11ac (3×3) Wireless Access Points and ten (10) AP licenses.
Scalable to add additional Access Points as needed (up to 50 in total).
Business Value
Best value-for-price offering for businesses who want to benefit from the speed and features of managed 11ac wireless.
Significant bundle discount. All the benefits of a managed infrastructure at low total cost of ownership
Ease of Use
The WB7630 Wireless Controller Bundle is designed for ease of ordering and simplified deployment with ten (10) 3×3 802.11ac Access Points.
Simplified logistic and deployment with single ordering SKU Controller-GUI and configuration optimized for SMB
Performance | |
---|---|
Number of VLANs | 64 |
Number of users | 50 user(s) |
Network | |
---|---|
Wi-Fi standards | 802.11a, 802.11b, 802.11g |
Wi-Fi | Yes |
Networking standards | IEEE 802.11e, IEEE 802.11i, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN | Yes |
Management features | |
---|---|
Access Control List (ACL) | Yes |
Captive portal | Yes |
VLAN support | Yes |
DHCP server | Yes |
Web-based management | Yes |
Security | |
---|---|
Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Ports & interfaces | |
---|---|
AC (power) in | Yes |
USB 2.0 ports quantity | 2 |
Console port | VGA |
Ethernet LAN (RJ-45) ports | 4 |
Connectivity technology | Wired & Wireless |
Power | |
---|---|
Power consumption (typical) | 13 W |
Input current | 8 A |
AC input frequency | 50 – 60 Hz |
AC input voltage | 100-240 V |
Antenna | |
---|---|
Antenna type | Internal |
Design | |
---|---|
Certification | FCC, CE, WEEE, RoHS |
LED indicators | Power, Status |
Power LED | Yes |
Product colour | Black |
Rack capacity | 1U |
Rack mounting | Yes |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 5 – 95% |
Operating temperature (T-T) | 0 – 45 °C |
Operating relative humidity (H-H) | 10 – 90% |
Storage temperature (T-T) | -20 – 70 °C |
Weight & dimensions | |
---|---|
Weight | 3.6 kg |
Dimensions (WxDxH) | 440 x 43 x 262 mm |
Packaging content | |
---|---|
User guide | Yes |
Cables included | AC, LAN (RJ-45) |
