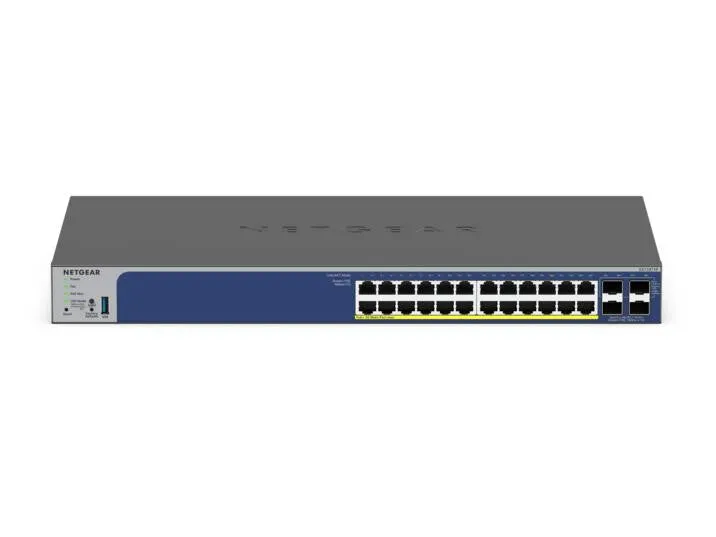

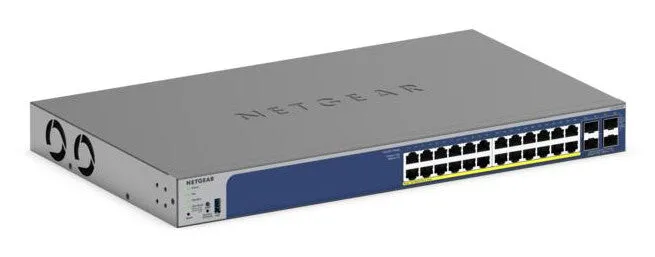

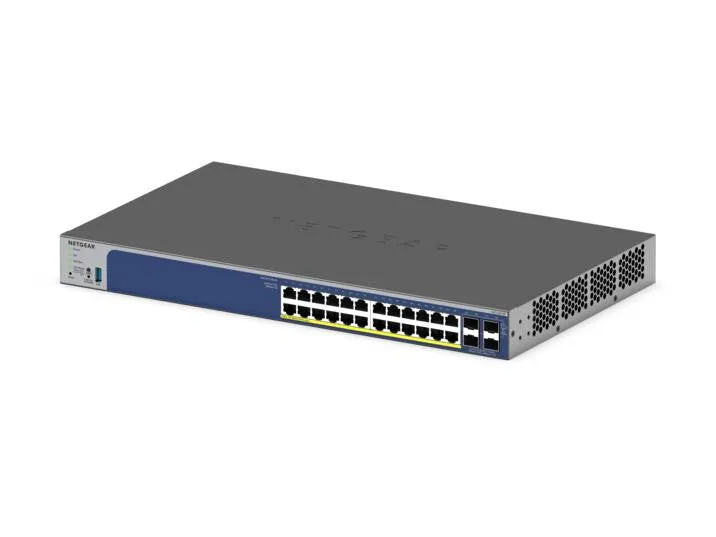

NETGEAR 28-Port PoE Gigabit/10G Stackable Smart Switch (GS728TXP)
- L2/L3
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support
- MAC address table: 16000 entries
- Access Control List (ACL)
- Rack mounting Stackable
- Power over Ethernet (PoE)
Standalone Smart Switch designed for converged networks, big or small. 1-Year Insight subscription included.
| Management features |
| Switch layer |
L2/L3 |
| Ports & interfaces |
| SFP+ module slots quantity |
4 |
| Installed SFP+ modules quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
| Number of VLANs |
256 |
| Virtual LAN features |
Voice VLAN |
| VLAN support |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
16 MB |
| Number of static routes |
32 |
| Static route |
Yes |
| MAC address table |
16000 entries |
| Security |
| MAC address filtering |
Yes |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) ingress |
100 |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client |
| Design |
| Product colour |
Black |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
| Mean time between failures (MTBF) |
1252990 h |
| Noise level |
26.8 dB |
| Flash memory |
64 MB |
| Processor frequency |
800 MHz |
| Built-in processor |
Yes |
| Power |
| Power consumption (typical) |
748.18 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Non-operating altitude |
0 – 3000 m |
| Operating altitude |
0 – 3000 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-20 – 70 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Weight & dimensions |
| Weight |
3.8 kg |
| Height |
43.2 mm |
| Depth |
257 mm |
| Width |
440 mm |
| Packaging content |
| Manual |
Yes |
| Cables included |
AC |
