Neomounts FL45S-825BL1 TV floor stand 37-75″ – TÜV
- Maximum weight capacity: 70 kg
- Minimum screen size: 94 cm (37″) Maximum screen size: 190.5 cm (75″) Floor
- Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 600 x 400 mm
- Number of displays supported: 1
- Height adjustment Manual Tilt adjustment
- Cable management
- Steel Black

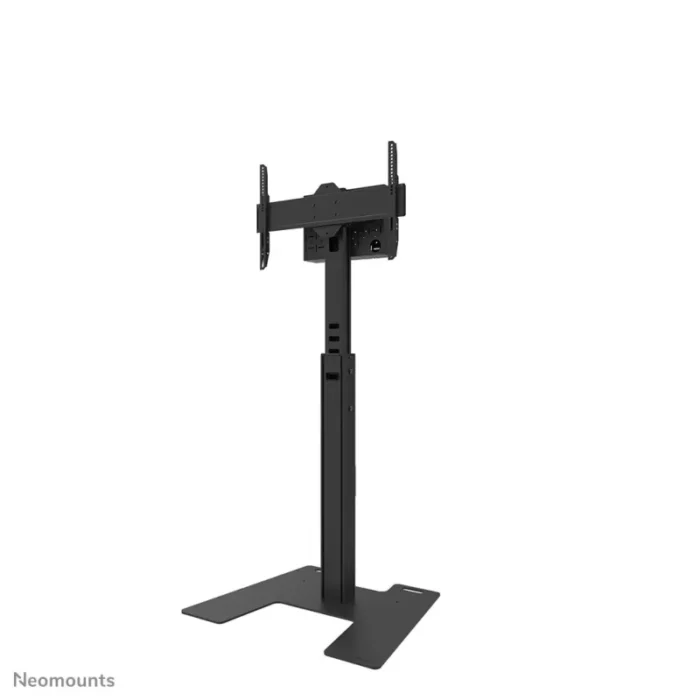

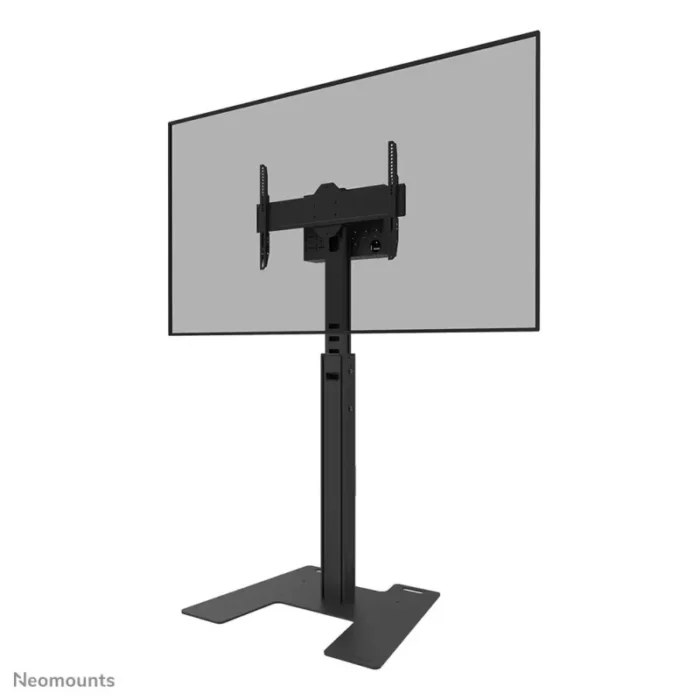

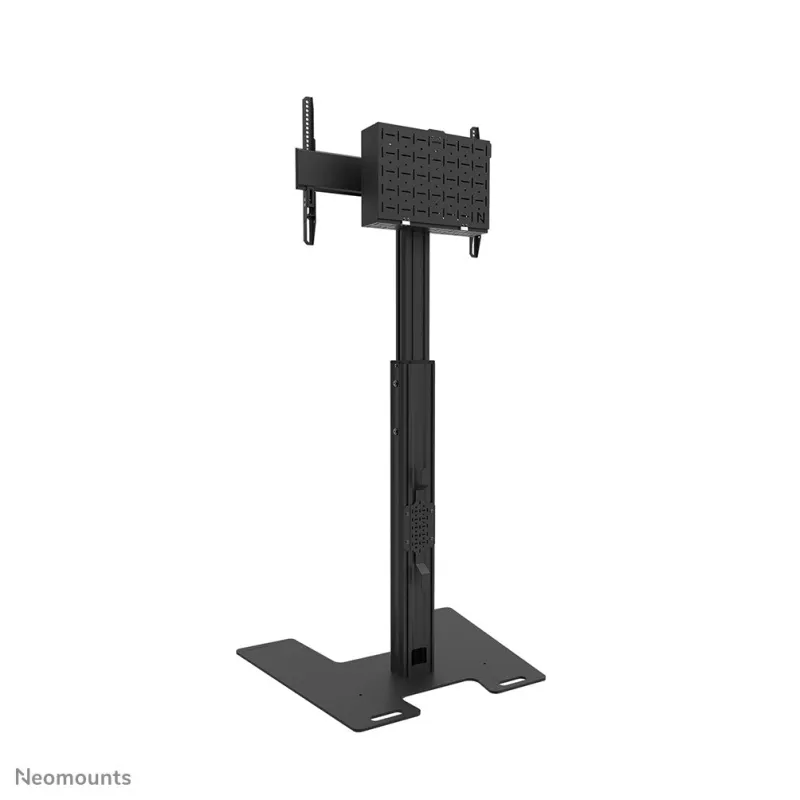

The Neomounts FL45S-825BL1 MOVE Up is a floor stand for flat screens up to 75″ with a maximum weight capacity of 70 kg. The screen can be secured by locking the brackets using a padlock (not included). The floor stand is manually adjustable in height (104-157 cm), as well as the bracket head. A lockable, ventilated hardware compartment with cable opening is included and optional for installation (both portrait and landscape).
The MOVE Up floor stand features a clever internal cable management system with various in and out outlets for flexible use (above, in the middle where the media player is placed and at the bottom) and conceals and routes cables from floor stand to screen. The FL45S-825BL1 has a solid steel floor plate equipped with fixing holes to optionally bolt the stand to the floor for additional safety. The floor plate has 2 handles for safer relocating.
The AFLS-825BL1 and AV1-825BL videobar & multimedia kits are optionally available and enable the installation of a separate cam shelf and multimedia device shelf to the trolley. Included to the kits are an adapter for respectively the Logitech Rally Bar (Mini) or Bose Professional VB-S/VB1. Also compatible is the universal AV2-500BL (VESA mounted) videobar kit.
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100,100 x 200,200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,200 x 100,300 x 100,100 x 150,120 x 120,350 x 350,400 x 200 |
| Maximum VESA mount | 600 x 400 mm |
| Minimum VESA mount | 100 x 100 mm |
| Suitable for computer monitor | Yes |
| Mounting type | Floor |
| Maximum screen size | 190.5 cm (75″) |
| Minimum screen size | 94 cm (37″) |
| Maximum weight capacity | 70 kg |
| Ergonomics | |
|---|---|
| Type | Fixed |
| Cable management | Yes |
| Tilt angle range | 0 – 5° |
| Tilt adjustment | Yes |
| Height adjustment range | 1040 – 1570 mm |
| Height adjustment type | Manual |
| Height adjustment | Yes |
| Design | |
|---|---|
| Anti-theft function | Yes |
| Housing material | Steel |
| Product colour | Black |
| Technical details | |
|---|---|
| Lockable | Lock not included |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Warranty period | 5 year(s) |
| Total carbon footprint (kg of CO2e) | 223.64 |
| Weight & dimensions | |
|---|---|
| Weight | 37.3 kg |
| Height | 1785 mm |
| Depth (max) | 86.5 cm |
| Depth | 700 mm |
| Width | 865 mm |
| Packaging data | |
|---|---|
| Package weight | 17.1 kg |
| Package height | 1175 mm |
| Package depth | 132 mm |
| Package width | 475 mm |
| Logistics data | |
|---|---|
| Products per pallet (EU) | 16 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case net weight | 13.6 kg |
| Master (outer) case gross weight | 17.1 kg |
| Master (outer) case height | 1175 mm |
| Master (outer) case length | 135 mm |
| Master (outer) case width | 475 mm |
