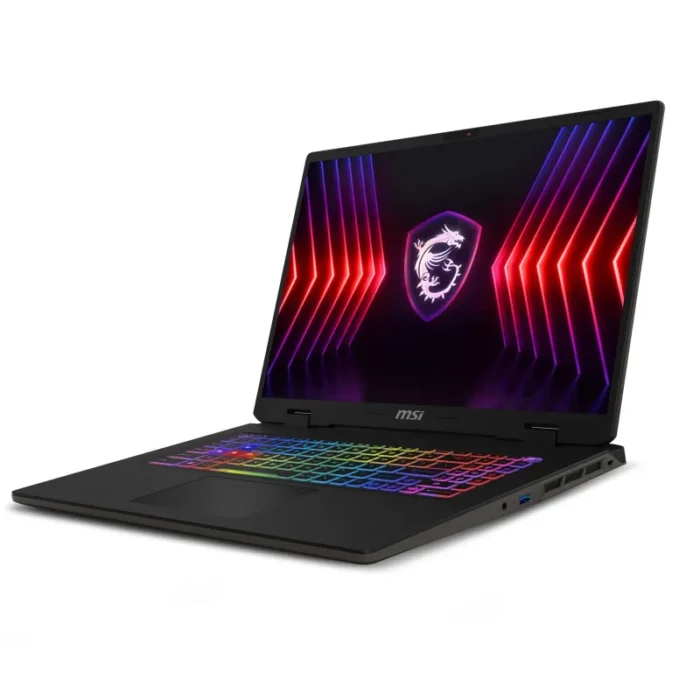

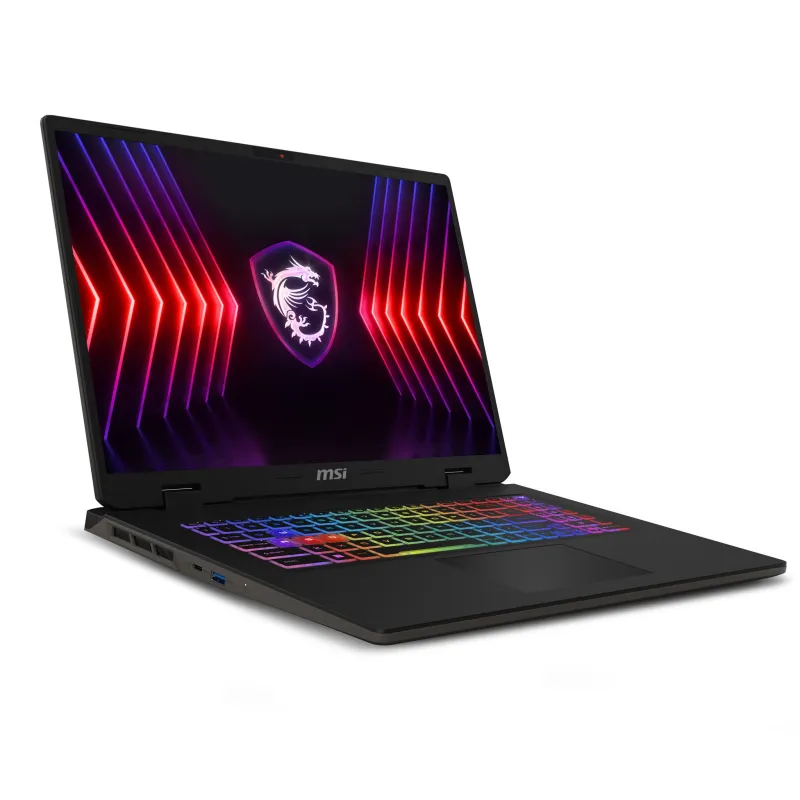

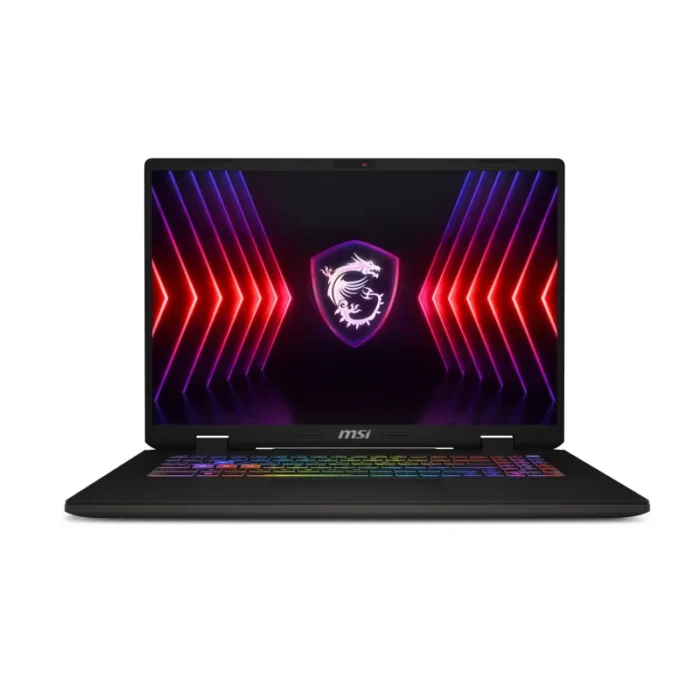

MSI Sword 17 HX B14VFKG-003UK Intel® Core™ i7 i7-14700HX Laptop 43.2 cm (17″) Quad HD+ 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6E (802.11ax) Windows 11 Home Grey
- Windows 11 Home
- Intel Core i7-14700HX (33MB Cache)
- 43.2 cm (17″) Quad HD+ 2560 x 1600, NVIDIA GeForce RTX 4060 (8GB GDDR6)
- 16GB (5600MHz) DDR5-SDRAM (2 x 8) & 1000GB SSD
The Sword series received a legendary redesign with a brand new cosmos gray body, while keeping the same sleek profile and strong cooling. Coupled with Intel® Core™ i7 processor 14700HX and GeForce RTX™ 40 Series graphics, the enchanted knight now wields an even stronger weapon. Gear up and outperform your opponent with this magic artifact!
| Design | |
|---|---|
| Country of origin | China |
| Form factor | Clamshell |
| Colour name | Cosmos Gray |
| Product colour | Grey |
| Product type | Laptop |
| Display | |
|---|---|
| Maximum refresh rate | 240 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Anti-glare screen | Yes |
| Native aspect ratio | 16:10 |
| HD type | Quad HD+ |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 43.2 cm (17″) |
| Processor | |
|---|---|
| Processor base power | 55 W |
| Maximum turbo power | 157 W |
| Processor cache type | Smart Cache |
| Processor cache | 33 MB |
| Efficient-core base frequency | 1.5 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core Max Turbo Frequency | 3.9 GHz |
| Performance-core Max Turbo Frequency | 5.5 GHz |
| Efficient cores | 12 |
| Performance cores | 8 |
| Processor boost frequency | 5.5 GHz |
| Processor threads | 28 |
| Processor cores | 20 |
| Processor model | i7-14700HX |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 96 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card family | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Speaker power | 2 W |
| Speakers manufacturer | Nahimic |
| Number of built-in speakers | 2 |
| Audio system | Nahimic 3 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Performance | |
|---|---|
| Motherboard chipset | Intel HM770 |
| Keyboard | |
|---|---|
| Keyboard backlit zone | Per-key RGB |
| Keyboard backlit colour | RGB |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Operating system installed | Windows 11 Home |
| Battery | |
|---|---|
| Battery capacity | 65 Wh |
| Number of battery cells | 4 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| DC-in jack | Yes |
| AC adapter power | 200 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.73 cm |
| Height (front) | 2.22 cm |
| Depth | 279.9 mm |
| Width | 383.2 mm |
| Weight | 2.6 kg |
| Packaging data | |
|---|---|
| Package volume | 89100 cm³ |
| Package weight | 3 kg |
| Package height | 329 mm |
| Package depth | 90 mm |
| Package width | 528 mm |
| General | |
|---|---|
| Product family | Sword |
| Product series | 17 |
| Logistics data | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | 8471300000 |
| Other features | |
|---|---|
| Warranty period | 2 year(s) |
