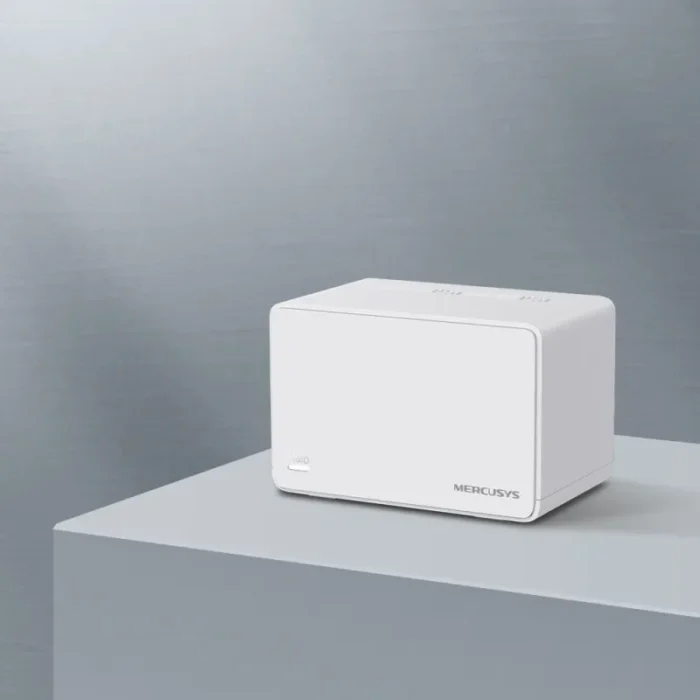

Mercusys AX3000 Whole Home Mesh WiFi 6 System

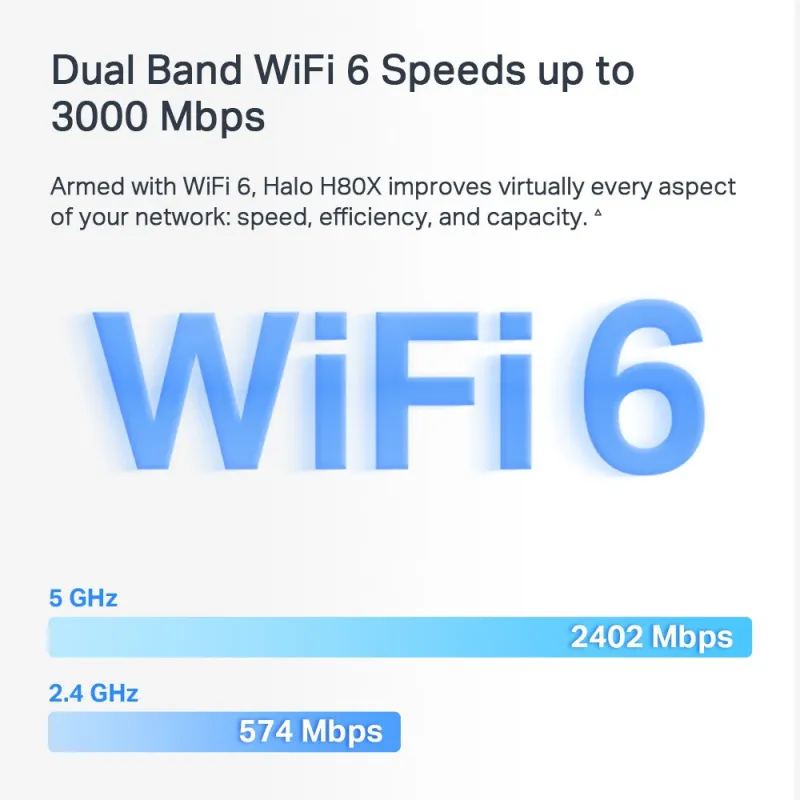

- Dual Band WiFi 6 Speeds up to 3000 Mbps – 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password
- Whole Home Coverage – Blanket up to 7,000 ft² (650 m²) with high-speed WiFi, eliminating WiFi dead zones at your home
- Connect over 150 Devices – Provide fast and stable connections over 150 devices
- Easily Mange Your Home Network – Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents
- Full Gigabit Ports – 3× Gigabit ports per Halo unit for lightning-fast wired connections
- Please note that the Halo H series and S series cannot work together
Fill Your Home with Fast Mesh WiFi
AX3000 Whole Home Mesh WiFi System
A Whole Home WiFi Solution
Nothing’s worse than unreliable connections and internet speeds unable to keep up with your digital lifestyle. Halo works as a unified system to guarantee a strong WiFi signal in every corner of your home, providing an incredibly fast and stable network experience. Interruption and buffering will be a thing of the past.
True Seamless Roaming with One Unified Network
The Halo system automatically connects your phones or tablets to the fastest node, delivering a truly seamless network experience. No more sudden signal drops or lagging WiFi when you’re walking around the house.
Powerful Signal Amplifiers
Refined signal amplifiers and receivers cast strong, stable WiFi signals.
Beamforming
Supports Beamforming technology to concentrate wireless signal strength towards devices.
Self-Healing
Auto-chooses the best connection route between Halos according to the stability of the network.
MERCUSYS Helps You Set Up in A Few Steps
Without any technical know-how or reading complicated instructions, simply follow the in-app instructions. Set up your mesh network in minutes.
Powerful Parental Controls
Easily manage your kids’ online time and content to create a safe and healthy online environment.
Create User Profiles
Create a profile for each family member you would like to manage. Assign devices to the profile to set access controls and time limits for them.
Online Time Limits
Set daily limits on how long your kids spend online and prevent them from accessing the internet on their devices for a long time to build a healthy network habit.
Block Inappropriate Websites
Control which sites your kids visit by setting a block list.
Pause Internet Connection
Suspend family members’ internet connections to take a break from the virtual world to enjoy some family time.
Improved Capacity
Enhanced by WiFi 6’s OFDMA and MU-MIMO technology, Halo H80X lets you connect over 150 devices at once. Enjoy a more efficient network that loads faster without dragging down performance.
Full Gigabit Ports + WAN/LAN Auto-Sensing
Thanks to WAN/LAN Auto-Sensing, there’s no need to distinguish between WAN/LAN ports. This reduces time and effort, so you can get straight to enjoying Halo H80X’s lightning-fast data transfer to wired devices. With full gigabit ports, your devices will clock 10× faster than standard Ethernet connections.
Easily Extend Your Coverage
The Halo Whole Home WiFi kit includes multiple units to fit any house type. If that’s not enough, you can expand Mesh WiFi coverage anytime by simply adding more Halos.
| Design | |
|---|---|
| Reset button | Yes |
| Maximum coverage | 460 m² |
| Antenna type | Internal |
| LED indicators | Yes |
| Product type | Mesh system |
| Product colour | White |
| Wireless LAN features | |
|---|---|
| Guest access | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Security algorithms | WPA-PSK, WPA2-PSK, WPA3 |
| Number of guest networks (5 GHz) | 1 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (max) | 3000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Features | |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Firewall security | SPI Firewall |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 83.7 mm |
| Depth | 81 mm |
| Width | 128 mm |
| Packaging content | |
|---|---|
| Ethernet cable | Yes |
| Number of units included | 2 pc(s) |
| AC adapter included | Yes |
| Number of products included | 2 pc(s) |
