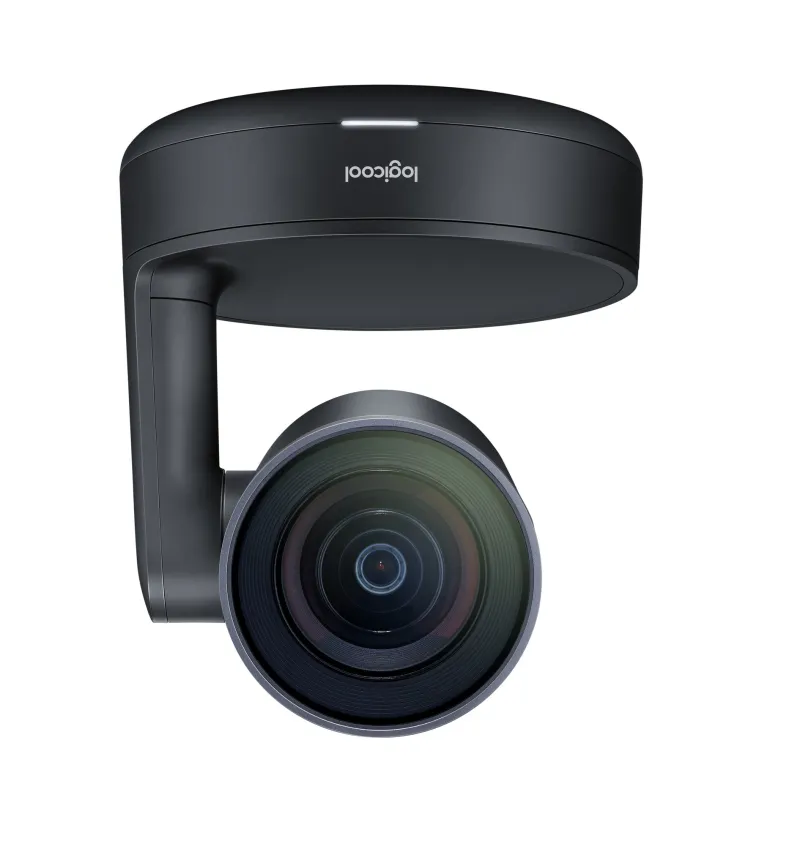

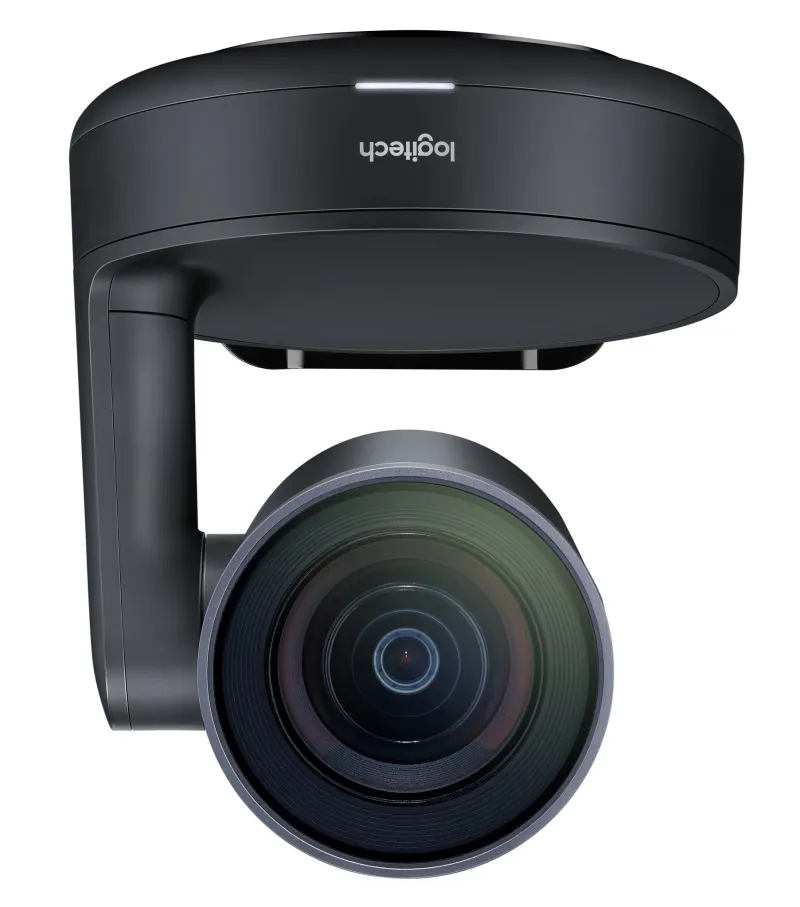

Logitech Rally
- Logitech extended guarantee adds one year to the original manufacturer’s guarantee, which provides that your Logitech Rally hardware shall be free from defects in material and workmanship.
- The purchase of a one-year Logitech extended guarantee, at the time of hardware or room solution purchase, adds one additional year to the original Logitech manufacturer’s two-year guarantee.
- Logitech one-year extended guarantee is intended to ensure that your Logitech hardware shall be free from defects in material and workmanship for a total of three years.
- The Logitech extended guarantee provides an additional year of coverage that helps protect your investment, maximise its value and ensure optimal performance of your Logitech conference room hardware.
- A three-year guarantee is right in line with the typical depreciation and replacement cycle of most conference room equipment.
The purchase of a one-year Logitech extended warranty along with the purchase of Rally adds one additional year to the original Logitech manufacturer’s two-year guarantee and is intended to ensure that your Logitech hardware is free from defects in material and workmanship.
This extended guarantee helps to protect your investment, maximise its value and ensure optimal performance of your Logitech conference room hardware for a total of three years. This is right in line with the typical depreciation and replacement cycle of most conference room equipment.
| Performance | |
|---|---|
| PTZ control | Yes |
| Tripod mounting supported | Yes |
| Tilt angle range | -90 – 50° |
| Tilt speed | 70 °/sec |
| Pan speed | 70 °/sec |
| Pan range | -90 – 90° |
| Product colour | Black |
| Number of persons | 10 person(s) |
| Product type | Group video conferencing system |
| Video | |
|---|---|
| Maximum frame rate | 60 fps |
| Supported video modes | 576p, 720p, 900p, 1080p, 1440p, 2160p |
| HD type | 4K Ultra HD |
| Audio | |
|---|---|
| Sample rates | 0 – 48 kHz |
| Noise reduction | Yes |
| Echo cancellation | Yes |
| Microphone pick-up range | 4.5 m |
| Output level | 95/100 dB |
| Frequency range | 300 – 10000 Hz |
| Ports & interfaces | |
|---|---|
| Line-in | Yes |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| HDMI ports quantity | 4 |
| Interface module | |
|---|---|
| Interface module HDMI output ports quantity | 2 |
| Interface module HDMI input ports quantity | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Camera | |
|---|---|
| Number of camera presets | 3 |
| Focus adjustment | Auto |
| Digital zoom | 15x |
| Zoom capability | Yes |
| Microphone | |
|---|---|
| Number of microphone arrays | 1 |
| Number of microphones | 4 |
| Sound pressure level (max) | 95 dB |
| Microphone mute | Yes |
| Microphone direction type | Omnidirectional |
| Microphone frequency | 90 – 16000 Hz |
| Microphone sensitivity | -27 dB |
| Microphone colour | Black |
| Computer system | |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Battery | |
|---|---|
| Battery capacity | 0.675 Wh |
| Logistics data | |
|---|---|
| Master (outer) case gross weight | 9.5 kg |
| Master (outer) case length | 348 mm |
| Master (outer) case width | 240 mm |
| Master (outer) case height | 736 mm |
| Harmonized System (HS) code | 85176990 |
| Features | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Telepresence | No |
| Power | |
|---|---|
| Battery technology | Lithium |
| Battery capacity | 220 mAh |
| Number of batteries supported | 2 |
| Power source type | AC |
| Weight & dimensions | |
|---|---|
| Package weight | 8.53 kg |
| Package height | 220 mm |
| Package depth | 700 mm |
| Package width | 275 mm |
| Camera dimensions (WxDxH) | 152 x 152 x 182.5 mm |
| Speaker dimensions (WxDxH) | 449 x 80 x 103 mm |
| Microphone dimensions (WxHxD) | 102 x 102 x 21 mm |
| Packaging content | |
|---|---|

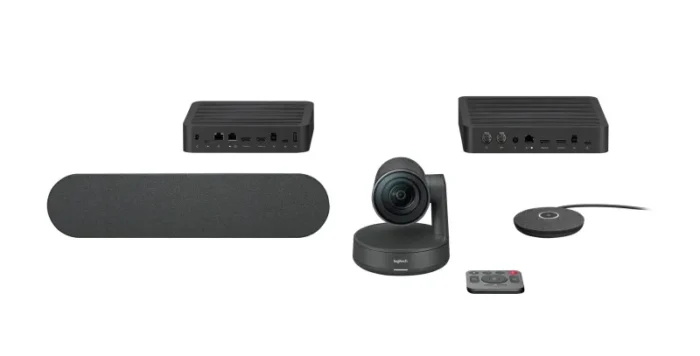

| Packaging content | Rally cameraRally display hubRally table hubRally speaker (x1)Rally mic pod (x1)Remote controlUSB Type C to USB Type CUSB Type A to USB Type BCAT6A Ethernet cableHDMI Type A (x2)A/C cables (x2)Power supplies (x2)Documentation2-year manufacturer’s guarantee |
| Quick start guide | Yes |
| Microphone included | Yes |
| Camera included | Yes |
| Remote control included | Yes |
| Speaker included | Yes |
| AC adapter included | Yes |
| HDMI cable length | 2 m |
| Networking cable length | 5 m |
| Power cable length | 1.5 m |
| Cables included | AC, HDMI, LAN (RJ-45), USB Type-A to Micro USB-B, USB Type-C to USB Type-C |
| External interface module included | Yes |
