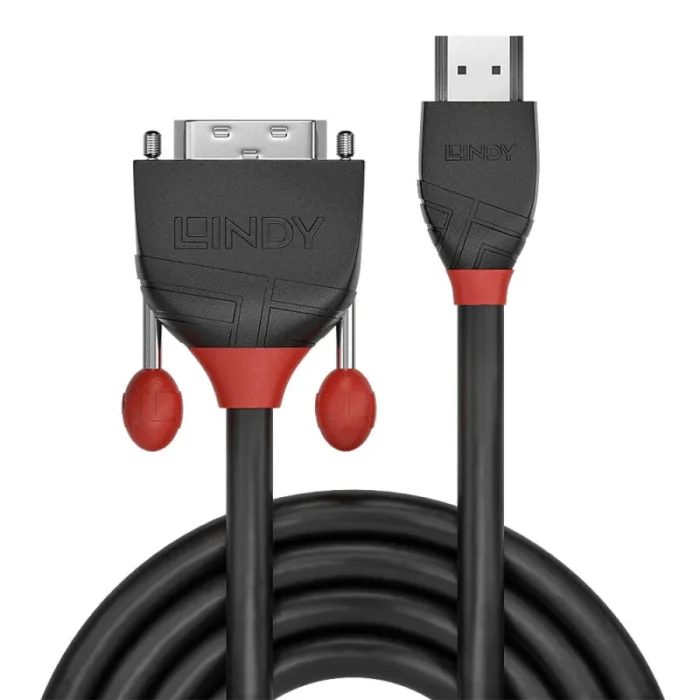

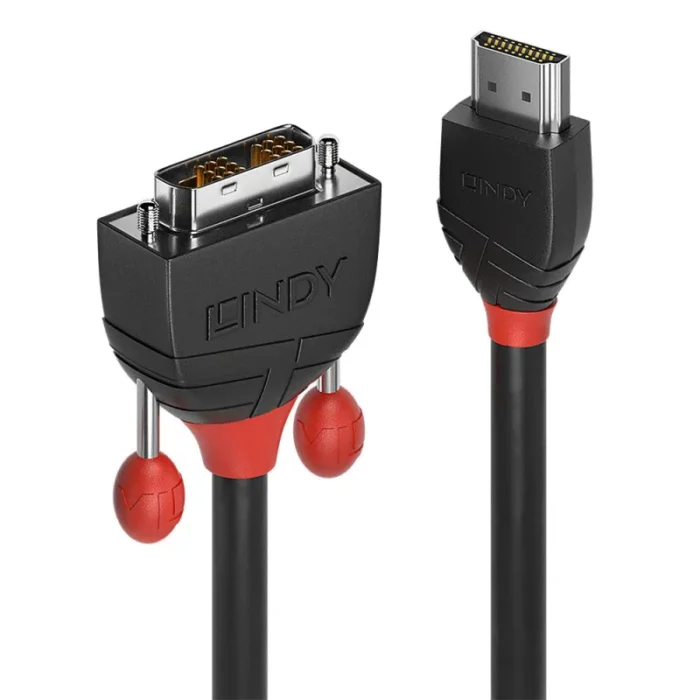

Lindy 2m HDMI to DVI Cable, Black Line
- Entry level HDMI Male to DVI-D Male cable for home and small office applications
- Supports DVI resolutions up to 1920×1200@60Hz and HDTV resolutions up to 1080p
- Robust PVC housing, nickel connectors, 24K gold plated contacts
- Tripled shielded cable, corrosion resistant tinned copper 30AWG conductors
- 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Black Line HDMI to DVI-D cables are fully featured, entry level connection solutions, perfect for connecting PCs to monitors or projectors.
Black Line HDMI to DVI-D cables feature triple shielded construction with 30AWG tinned copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
The tough PVC housing incorporates an integrated finger grip for easy installation. Large thumb screws allow the connector to be tightened into place without the need for a screwdriver and a flexible strain relief prolongs cable life.
Black Line HDMI to DVI-D cables support resolutions up to 1920×1200@60Hz including HDTV resolutions up to 1080p.
Black Line HDMI to DVI-D cables are available in lengths of 0.5m to 10m.
| Features | |
|---|---|
| Cable shielding | Aluminium braid |
| AWG wire size | 30 |
| Contact material | Brass |
| Connector material | Nickel |
| Connector housing material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Jacket material | Polyvinyl chloride (PVC) |
| Nominal attenuation | 1 €“ 825Mhz 12db |
| Conductor material | Tinned copper |
| Product colour | Black |
| Bend radius (min) | 5.5 cm |
| Maximum refresh rate | 60 Hz |
| Data transfer rate | 4.95 Gbit/s |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Maximum resolution | 1920 x 1200 pixels |
| Dual Link DVI | No |
| Connector contacts plating | Gold |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DVI-D |
| Connector 1 | HDMI Type A (Standard) |
| Cable length | 2 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -25 – 85 °C |
| Operating temperature (T-T) | -20 – 80 °C |
| Certificates | |
|---|---|
| Certification | RoHS, REACH, UL |
| Weight & dimensions | |
|---|---|
| Connector 2 dimensions (WxDxH) | 36.8 x 44.5 x 12.5 mm |
| Connector 1 dimensions (WxDxH) | 21.4 x 34.2 x 12.7 mm |
| Cable diameter | 5.5 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
