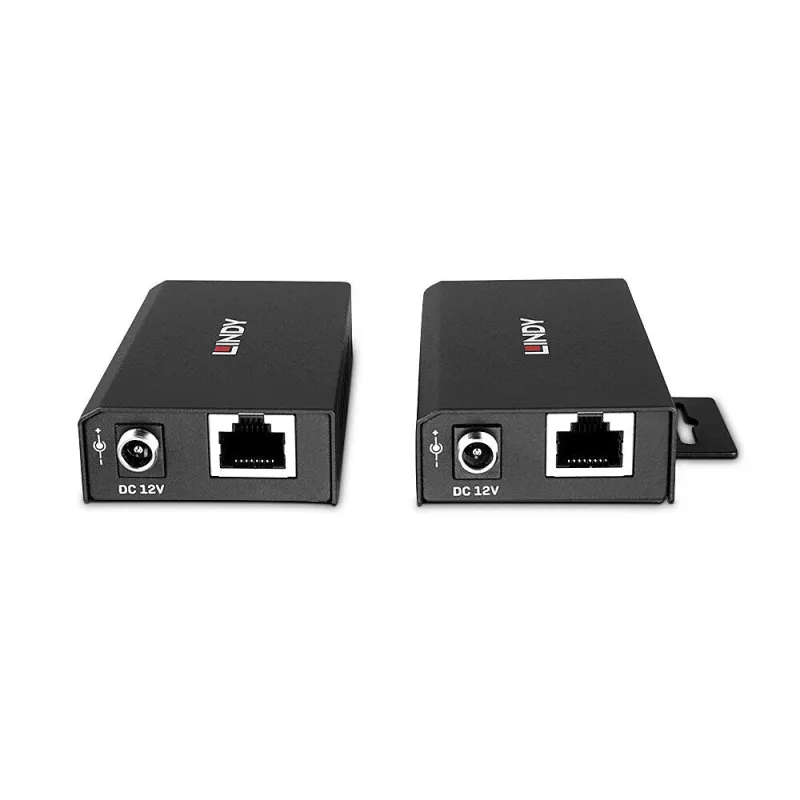

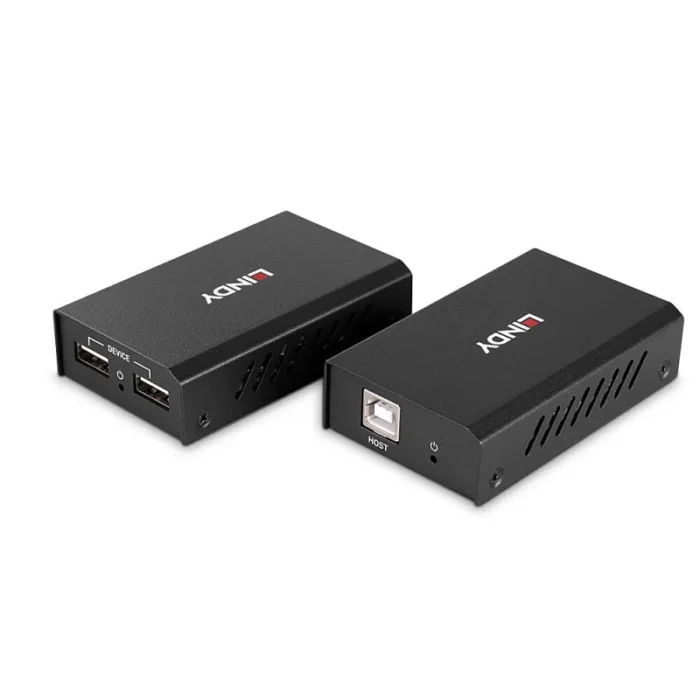

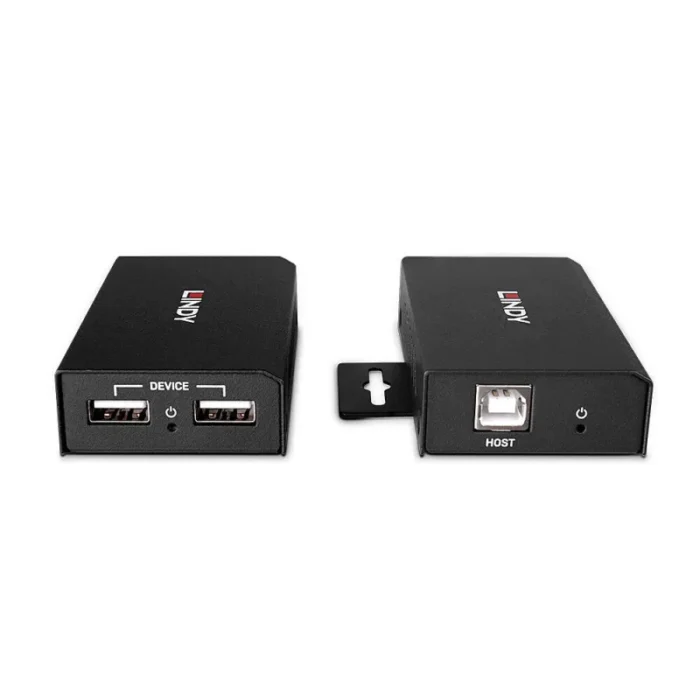

Lindy 100m 2 Port USB 2.0 Cat. 6 Extender
- Extend two USB 2.0 ports up to 100m using low cost Cat. 6 network cable (not included)
- Bi-directional PoC (Power over Cable) requires a power supply connection from only one side of the installation
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- Plug & Play installation
This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 100m. A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
| Features |
| Certification |
CE, FCC, RoHS & REACH, CP65 |
| Product colour |
Black |
| Material |
Metal |
| Bandwidth |
0.48 Gbit/s |
| Maximum transfer distance |
100 m |
| Chipset |
VA6000 |
| Type |
AV transmitter & receiver |
| Ports & interfaces |
| DC-in jack |
Yes |
| USB connector type |
USB Type-B |
| USB version |
2.0 |
| USB ports quantity |
3 |
| RJ-45 output ports |
1 |
| RJ-45 input ports |
1 |
| Connectivity technology |
Wired |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
20 – 90% |
| Weight & dimensions |
| Weight |
200 g |
| Height |
20 mm |
| Depth |
49 mm |
| Width |
82 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
600 g |
| Package height |
75 mm |
| Package depth |
115 mm |
| Package width |
200 mm |
| Quantity per pack |
2 pc(s) |
| Packaging content |
| Packaging content |
Transmitter unitReceiver unit0.9m USB 2.0 A Male to B Male cableMulti-Country Power Supply (EU, UK, US & AUS)Mounting BracketsLindy Manual |
| Mounting brackets included |
Yes |
| Manual |
Yes |
| Cables included |
USB Type-A to USB Type-B |
