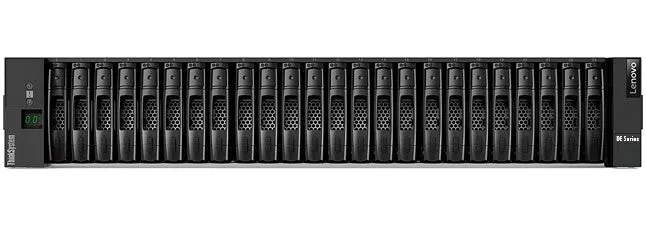

Lenovo ThinkSystem DE4000H disk array 0 TB Rack (2U) Black
- Large Enterprise Business
- Rack (2U) Black
- USB connectivity Hot-swap drive bays
- 913 W
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE4000H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
This product guide provides essential technical and pre-sales information on the Lenovo ThinkSystem DE4000H Hybrid Storage Array, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the ThinkSystem DE4000H Hybrid Storage Array and consider its use in their solutions.
| Storage | |
|---|---|
| Hot-swap drive bays | Yes |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Maximum supported storage capacity | 288 TB |
| Number of storage drives supported | 24 |
| Supported storage drive types | HDD & SSD |
| Total installed storage capacity | 0 TB |
| Installed storage drive type | No |
| Storage drives installed | No |
| Ports & interfaces | |
|---|---|
| Serial interface type | RJ-45 |
| RJ-45 ports quantity | 3 |
| USB connectivity | Yes |
| Design | |
|---|---|
| Certification | United States: FCC Part 15, Class A; UL 60950-1 and 62368-1 Canada: ICES-003, Class A; CAN/CSA-C22.2 60950-1 and 62368-1 Argentina: IEC60950-1 Mexico NOM European Union: CE Mark (EN55032 Class A, EN55024, IEC/EN60950-1 and 62368-1); ROHS Directive 2011/65/EU Russia, Kazakhstan, Belarus: EAC China: CCC GB 4943.1, GB 17625.1, GB 9254 Class A; CELP; CECP India: BIS Japan: VCCI, Class A Taiwan: BSMI CNS 13438, Class A; CNS 14336-1 Korea KN32/35, Class A Australia/New Zealand: AS/NZS CISPR 22 Class A |
| Built-in display | Yes |
| Cooling | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Chassis type | Rack (2U) |
| Device class | Large Enterprise Business |
| Power | |
|---|---|
| AC input voltage | 100 – 240 V |
| Number of power supply units | 2 |
| Power supply unit (PSU) capacity | 913 W |
| Weight & dimensions | |
|---|---|
| Weight | 24.6 kg |
| Height | 85 mm |
| Depth | 553 mm |
| Width | 449 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -10 – 50 °C |
| Operating relative humidity (H-H) | 8 – 90% |
| Operating temperature (T-T) | 5 – 45 °C |
