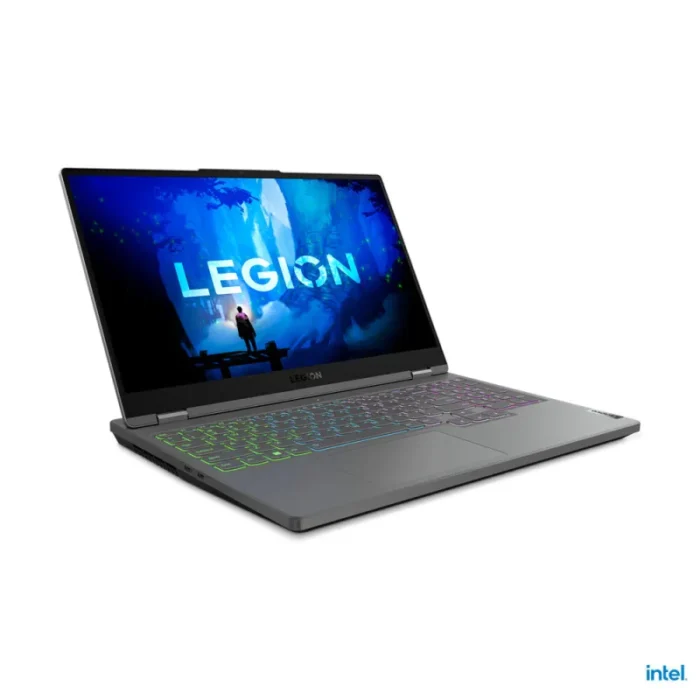

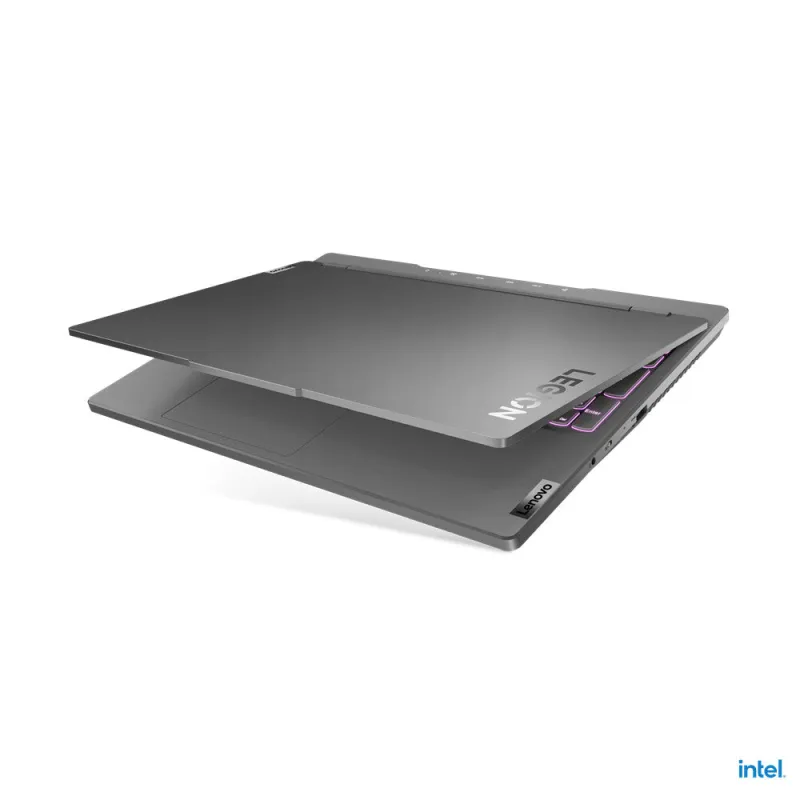

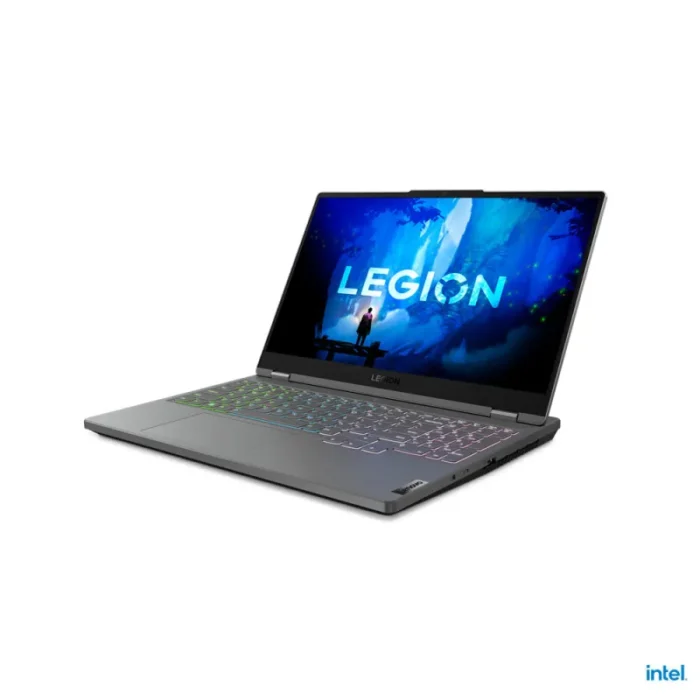

Lenovo Legion 5 15IAH7H Intel® Core™ i7 i7-12700H Laptop 39.6 cm (15.6″) Full HD 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 3070 Wi-Fi 6E (802.11ax) Windows 11 Home UK English Black, Grey
- Intel Core i7-12700H, 14C (6P + 8E)/20T, P-core 2.3/4.7GHz, E-core 1.7/3.5GHz, 24MB
- 2x 8GB SO-DIMM DDR5-4800
- 512GB SSD M.2 2242 PCIe 4.0×4 NVMe
- NVIDIA GeForce RTX 3070 8GB , Boost Clock 1620MHz, TGP 140W
- Windows 11 Home
Built for all players
Geared for gaming and redesigned for even more, the Legion 5i Gen 7 (15″ Intel) laptop is a revolution of mobile and mighty engineering. The thinnest and strongest generation yet, it packs 12th Gen Intel® Core™ processors and an optional NVIDIA® GeForce RTX™ 3070 Ti GPU (125W). Enjoy a 15.6″ up to WQHD screen with 165Hz refresh rate and you’ll be competing with the pros.
| Design |
| Market positioning |
Gaming |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Form factor |
Clamshell |
| Colour name |
Storm grey |
| Product colour |
Black, Grey |
| Product type |
Laptop |
| Display |
| High Dynamic Range (HDR) technology |
Dolby Vision |
| Contrast ratio (typical) |
1000:1 |
| Maximum refresh rate |
165 Hz |
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Display brightness |
300 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| Configurable TDP-down |
35 W |
| Processor cache |
24 MB |
| Processor boost frequency |
4.7 GHz |
| Processor cores |
14 |
| Processor model |
i7-12700H |
| Processor generation |
12th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Memory channels |
Dual-channel |
| Maximum internal memory |
32 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Memory clock speed |
4800 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| NVIDIA G-SYNC |
Yes |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA GeForce RTX 3070 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Nahimic Audio |
| Audio chip |
Realtek ALC3287 |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Front camera resolution |
1920 x 1080 pixels |
| Front camera HD type |
Full HD |
| Front camera |
Yes |
| Network |
| WWAN |
Not installed |
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Performance |
| Motherboard chipset |
Intel SoC |
| Keyboard |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
Touchpad |
| Software |
| Trial software |
Office Trial |
| Operating system language |
English |
| Operating system installed |
Windows 11 Home |
| Processor special features |
| CPU configuration (max) |
1 |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Battery |
| Fast charging |
Yes |
| Battery life (max) |
6.68 h |
| Battery capacity |
80 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
300 W |
| Security |
| Password protection type |
HDD, Power on, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
No |
| Operational conditions |
| Maximum shipping altitude |
3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
8 – 95% |
| Storage temperature (T-T) |
5 – 43 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Certificates |
| Certification |
ErP Lot 3RoHS |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Height |
20 mm |
| Depth |
262.4 mm |
| Width |
358.8 mm |
| Weight |
2.4 kg |
| General |
| Product family |
Legion |
| Product series |
5 |
