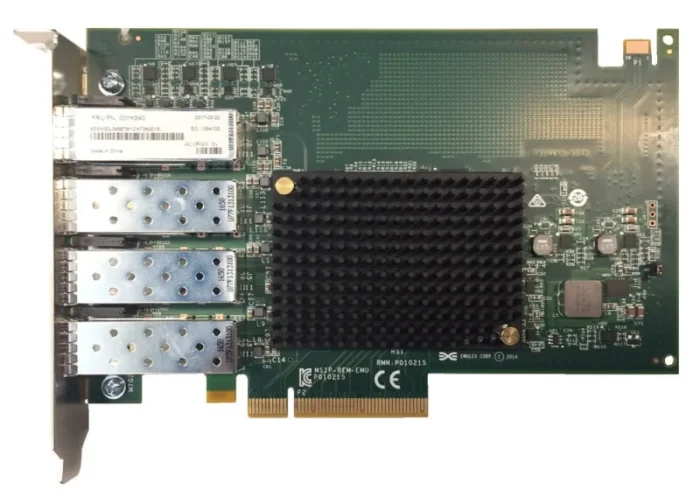

Lenovo 7ZT7A00493 network card Internal Fiber 10000 Mbit/s
- Dual-channel 10 Gbps Ethernet controller
- Based on the Emulex XE102-P2 ASIC
- PCI Express 3.0 host interface
- Line-rate 10 GbE performance
The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family, which includes the OCe14104B-NX 10 GbE adapter builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity.
This product guide provides essential presales information to understand the VFA 5.2 adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about VFA 5.2 adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| PCI Card form factor | Full-height |
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3x |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
|---|---|
| Product colour | Multicolour |
| Component for | Server |
| Internal | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 55 °C |
| Weight & dimensions | |
|---|---|
| Height | 111 mm |
| Width | 167 mm |
