Lenovo 4XC7A08316 network card Internal Ethernet 25000 Mbit/s
- Wired
- PCI Express Ethernet
- 10 Gigabit Ethernet, 25 Gigabit Ethernet 25000 Mbit/s
- Internal Component for: Server

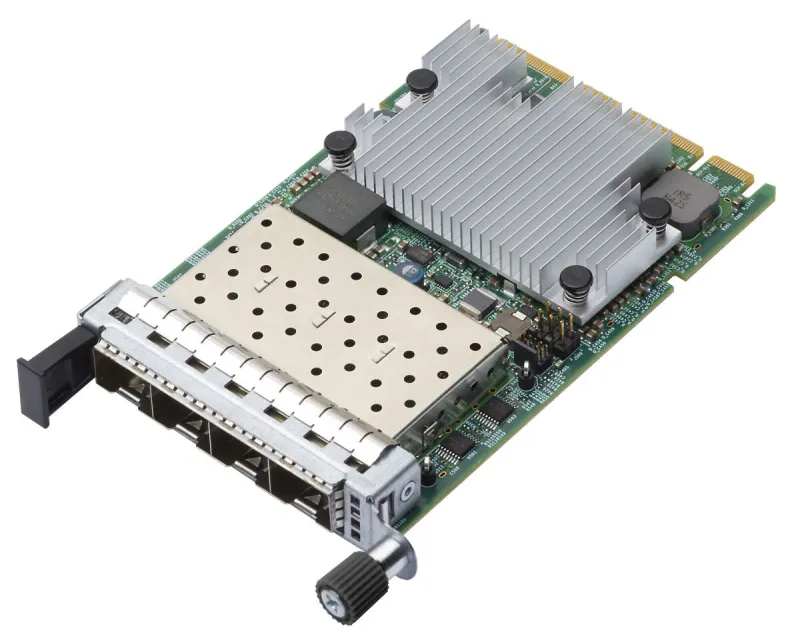

The ThinkSystem Broadcom 57454 10/25GbE SFP28 Ethernet Adapters are high-performance 25 Gb Ethernet adapters in either standard PCIe form factor or the Open Compute Project (OCP) 3.0 SFF form factor.
This product guide provides essential presales information to understand the adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Broadcom 25 GbE network adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP28 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Networking standards | IEEE 1588, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb |
| Maximum data transfer rate | 25000 Mbit/s |
| Design | |
|---|---|
| Certification | EN 55022:2010 + AC:2011 Class B (CE EU)EN 55024 Class B (EU)CFR47, Part 15 Class B (USA FCC)ICES-003 Class B (Canada)CNS13438 Class B (BSMI Taiwan)RRL KN22 Class B (S. Korea)KN24 (ESD) (S. Korea)V-3 / 2014 / 04 (VCCI Japan)EN 60950-1UL 60950-1CTUVus ULCSA 22.2 No. 950CNS14336 Class BICES 003UL 1977 (connector safety)UL 796 (PCB wiring safety)UL 94 (flammability of parts) |
| Product colour | Black, Green, Stainless steel |
| Component for | Server |
| Internal | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 55 °C |
| Weight & dimensions | |
|---|---|
| Height | 63 mm |
| Width | 167 mm |
