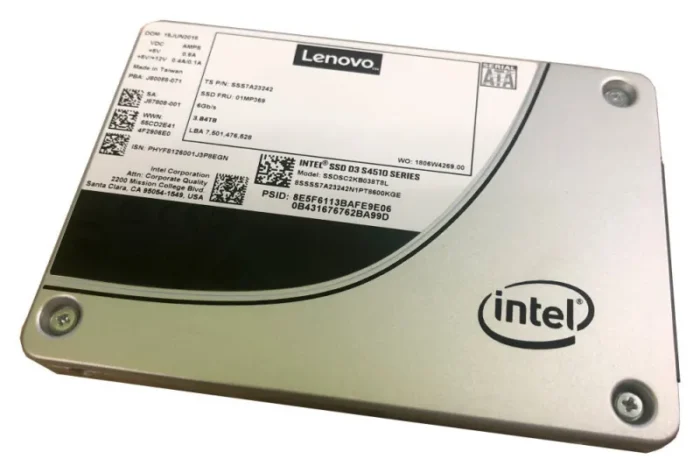

Lenovo 4XB7A10247 internal solid state drive 240 GB 2.5″ Serial ATA III
- 240 GB 2.5″ Serial ATA III
- Read speed: 560 MB/s
- Write speed: 290 MB/s
- 256-bit AES
- Component for: Server/workstation
The Intel S4510 Entry SATA solid-state drives (SSDs) for Lenovo servers use 64-layer Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance.
This product guide provides essential presales information to understand the S4510 SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4510 SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| Certification | FCC Title 47, Part 15B, Class BCA/CSA-CEI/IEC CISPR 22:02EN 55024: 1998EN 55022: 2006EN-60950-1 2nd EditionUL/CSA EN-60950-1 2nd EditionLow Voltage Directive 2006/95/ECC-Tick: AS/NZS3584BSMI: CNS 13438KCC Article 11.1RoHS DIRECTIVE 2011/65/EUWEEE Directive 2002/96/EC |
| Mean time between failures (MTBF) | 2000000 h |
| Maximum write (4KB) | 17000 IOPS |
| Maximum read (4KB) | 85000 IOPS |
| Write speed | 290 MB/s |
| Read speed | 560 MB/s |
| Data transfer rate | 6 Gbit/s |
| Security algorithms | 256-bit AES |
| Component for | Server/workstation |
| Interface | Serial ATA III |
| SSD form factor | 2.5″ |
| SSD capacity | 240 GB |
| Weight & dimensions | |
|---|---|
| Weight | 63 g |
| Height | 7 mm |
| Depth | 100 mm |
| Width | 70 mm |
| Operational conditions | |
|---|---|
| Maximum operating altitude | 3050 m |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
