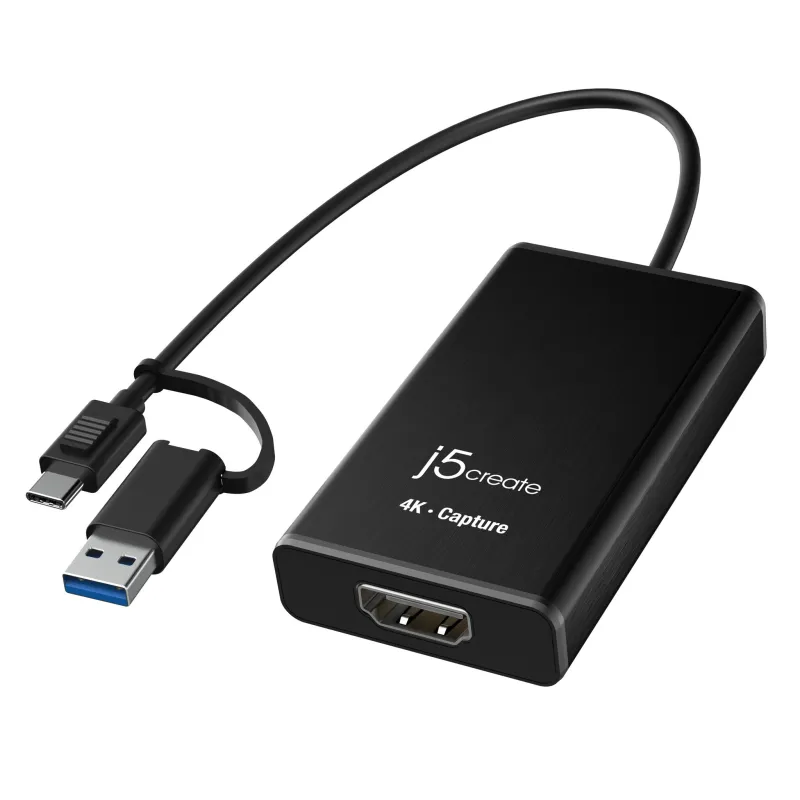

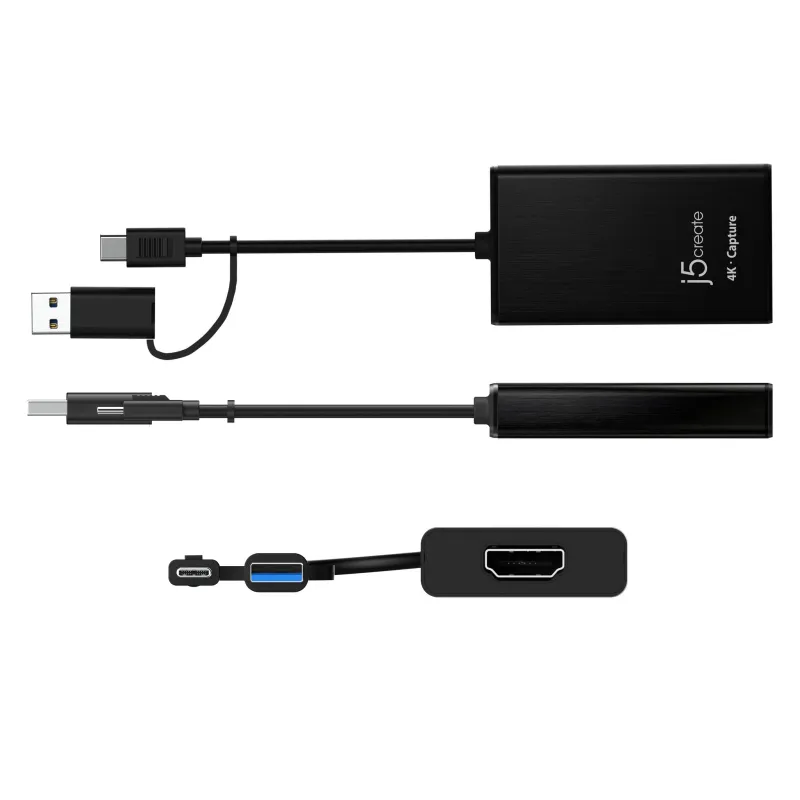

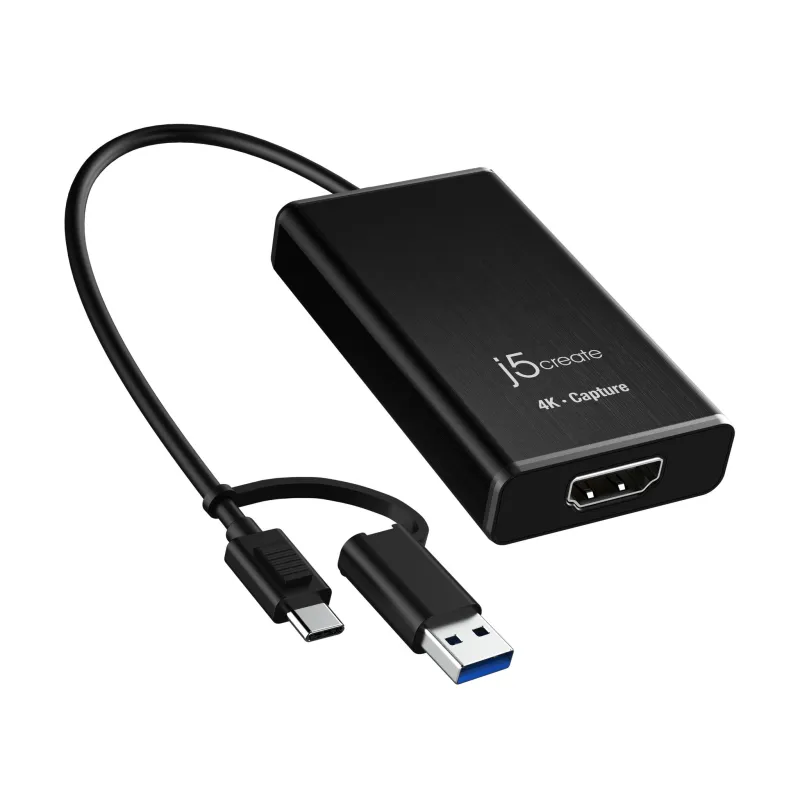

j5create JVA11-N 4K HDMI™ Capture Adapter
- HDMI™ input for capturing
- 4K video and audio high-performance record through USB-C® 3.2 Gen 1
- UVC standard – No driver installation required
- Ultra-low latency stream through USB-C® 3.2 Gen 1 connection
- Field production made easy with its compact size
Record or stream high resolution video content with a compact 4K capture device. The USB-C® cable includes a USB™ Type-A adapter for increased device compatibility and works with a variety of video capture software. USB™ 3.2 supports high quality streams and recordings. Its small size makes it easy to transport and put away. This is a great device for video podcasts, field production, and capturing gameplay.
| Performance |
| Country of origin |
Taiwan |
| Housing material |
Aluminium |
| Plug and Play |
Yes |
| Cable length |
0.19 m |
| Video capture resolution (max) |
3840 x 2160 pixels |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Internal |
No |
| Product colour |
Black |
| Video |
| Maximum frame rate |
120 fps |
| Supported resolutions |
4K30 fps, 2K60 fps, 1080p120 fps |
| Analog signal format system |
Not supported |
| Ports & interfaces |
| DC-in jack |
No |
| AV output |
No |
| AV input |
No |
| HDMI in |
1 |
| HDMI ports quantity |
1 |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type |
USB Type-A, USB Type-C |
| USB port |
No |
| Power |
| Power supply type |
USB |
| Software |
| Other operating systems supported |
Android |
| Mac operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Yes |
| System requirements |
| Minimum processor |
Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended) Windows® 7 or later macOS® 10.12 or later Android™ 8.1 or later Chrome OS™ with UVC support CPU: Intel® Core™ i7 6700HQ & above GPU: NVIDA® GTX 960M & above RAM: 8 GB or higher |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 85% |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-10 – 65 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Technical details |
| Warranty period |
2 year(s) |
| Weight & dimensions |
| Weight |
55 g |
| Height |
72 mm |
| Depth |
14.1 mm |
| Width |
41 mm |
| Packaging content |
| Quantity |
1 |
| Manual |
No |
| Quick installation guide |
Yes |
| User guide |
No |
| Software CD |
No |
| Screws included |
No |
| Low-profile bracket |
No |
| Full-height bracket |
No |
| Software included |
No |
| AC adapter included |
No |
| Batteries included |
No |
| Remote control included |
No |
| Protective case |
No |
| Packaging data |
| Package type |
Box |
| Package height |
25 mm |
| Package width |
145 mm |
| Package depth |
95 mm |
| Package weight |
96 g |
