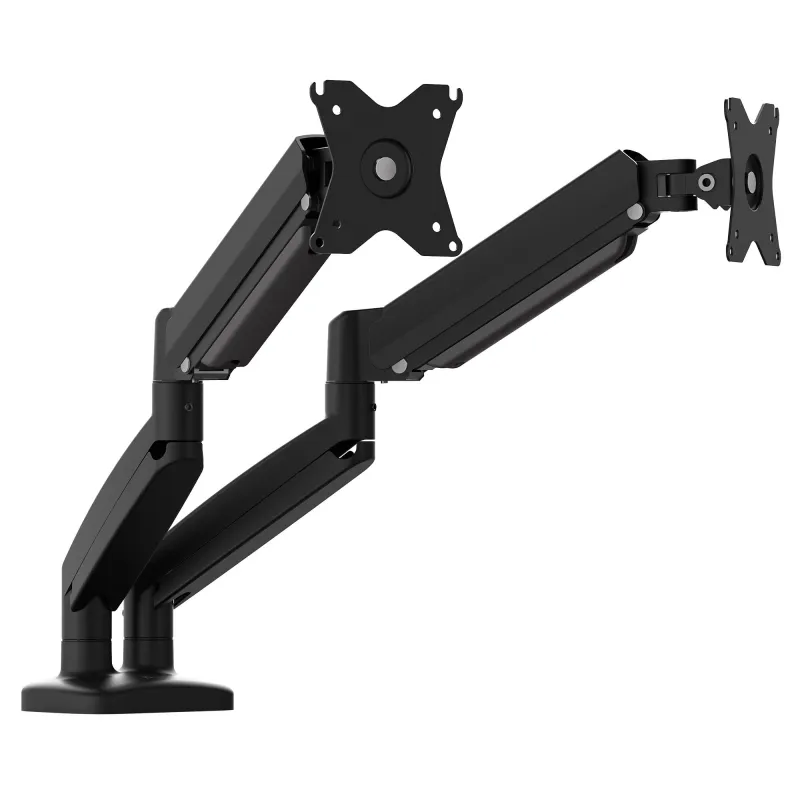

j5create JTSA102 Ergonomic Dual Monitor Mount, Black
- Maximize your desktop space and enjoy more benefits of dual monitors
- Fully adjustable gas spring monitor arms. Easily adjusts monitors to any height
- Allows the screens to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitors at optimal angles
- Supports 17” to 32” monitors weighing up to 8kg each, works with most VESA® – compatible monitors
- Simple to Install, includes clear instructions and all necessary tools
The JTSA102 is a gas spring dual monitor mount. The single arm can hold max two 32” screens weighing up to 8kg/17.6 lbs. Easily adjust your screens to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.
| Mounting | |
|---|---|
| Grommet mount desk thickness (max) | 5 cm |
| Desk thickness (min) | 1 cm |
| Number of displays supported | 2 |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Maximum weight capacity (per display) | 8 kg |
| Mounting type | Desk |
| Maximum screen size | 81.3 cm (32″) |
| Minimum screen size | 43.2 cm (17″) |
| Maximum weight capacity | 16 kg |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Angle of rotation | 360° |
| Rotating | Yes |
| Swivel angle | 180° |
| Swivelling | Yes |
| Tilt angle range | -45 – 90° |
| Tilt adjustment | Yes |
| Adjustable depth | Yes |
| Height adjustment | Yes |
| Design | |
|---|---|
| Easy to install | Yes |
| Orientation | Landscape/Portrait |
| Housing material | Aluminium, Plastic, Steel |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 3.4 kg |
| Height | 465 mm |
| Depth | 320 mm |
| Width | 140 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 4.25 kg |
| Package height | 127 mm |
| Package depth | 515 mm |
| Package width | 243 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Packaging content | 1 – JTSA102 Ergonomic Dual Monitor Mount1- Installation tools & accessories1 – Quick Installation Guide (QIG) |
| Mounting kit | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 30 °C |
| Storage temperature (T-T) | -10 – 65 °C |
| Operating relative humidity (H-H) | 0 – 85% |
| Maximum operating temperature | 30 °C |
| Storage relative humidity (H-H) | 0 – 85% |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Other features | |
|---|---|
| Warranty period | 2 year(s) |
| Compliance certificates | CE, REACH, RoHS |
| Logistics data | |
|---|---|
| Country of origin | China |
| Master (outer) case net weight | 4.6 kg |
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case GTIN (EAN/UPC) | 24712795088278 |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case height | 275 mm |
| Master (outer) case length | 536 mm |
| Master (outer) case width | 148 mm |
