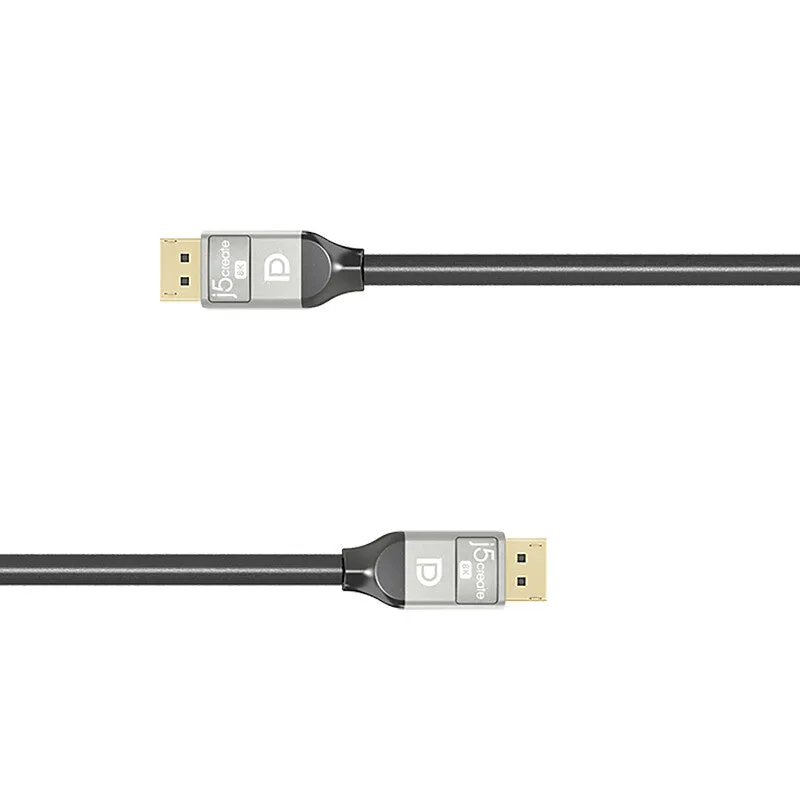

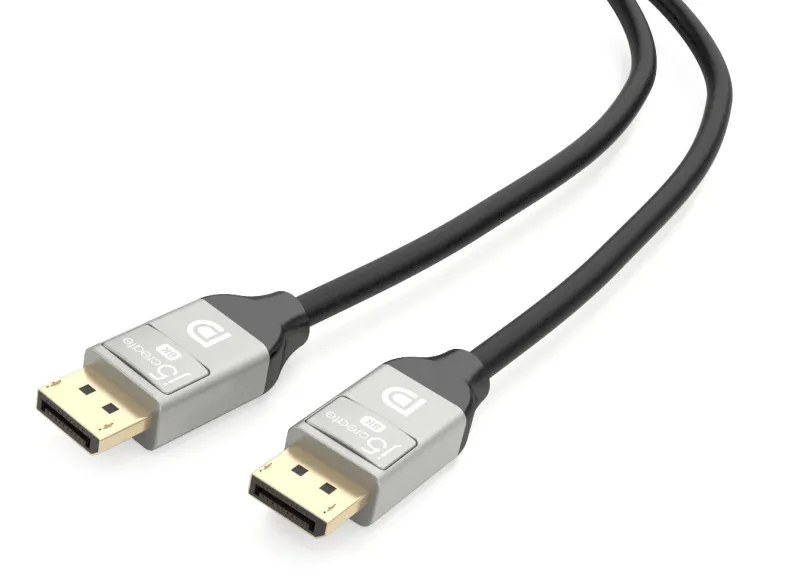

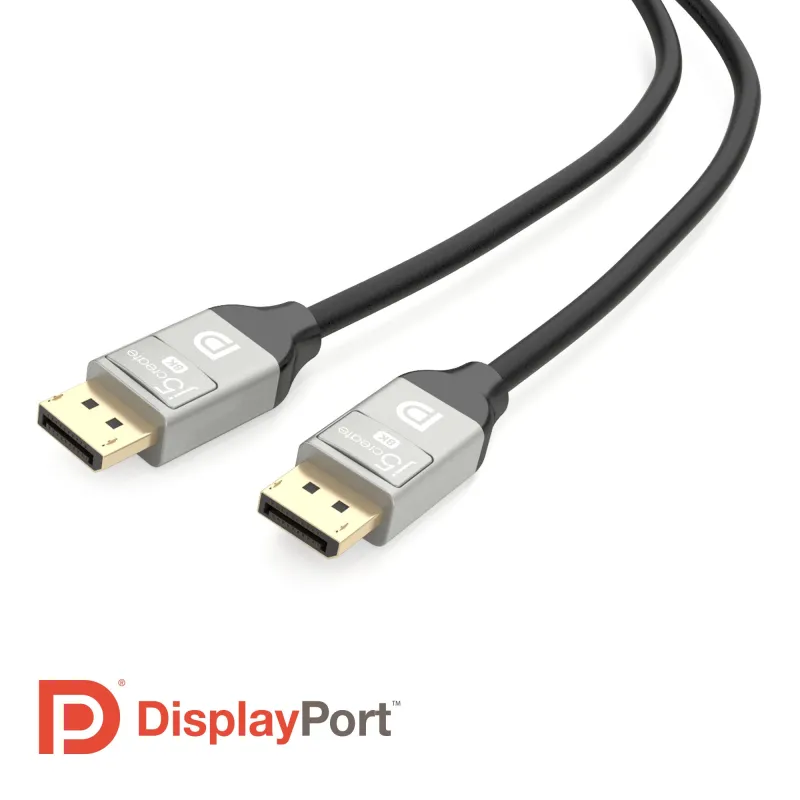

j5create JDC43 8K DisplayPort™ Cable, Black and Grey, 2 m
- DisplayPort™ v1.4 HBR3 certified
- Supports resolutions up to 7680 x 4320 @ 60 Hz/ 4096 x 2160p @ 120 Hz / 1080p 3D
- Supports data rates/bandwidth up to 32.4 Gbps
- Backward compatible with DisplayPort™ v1.0/v1.1/v1.2
- Triple shielded, tinned copper conductors and gold-plated metal ensures maximum protection and insulation
- Latched connectors prevent accidental disconnections
- Length: 6.6 ft (2m)
The JDC43 is an 8K DisplayPort™ cable that transmits both audio and video. DisplayPort™ v1.4 supports 8K UHD (7680 × 4320) at 60 Hz with 30 bit/px RGB color and HDR, or 4K UHD (4096 × 2160) at 120 Hz. It also supports 3D. The theoretical bandwidth is up to 32.4 Gbps.
The JDC43 features a tinned copper conductor and aluminum + braided shielding, giving you a stable picture without distortion. Its gold-plated connectors allow for a seamless connection & reliable transmission.
Latched connectors give the 8K DisplayPort™ cable a more secure connection. The JDC43 8K DisplayPort™ Cable allows you to connect a DisplayPort™ from a laptop, desktop or set-top box to a high-res monitor, HDTV or projector with DisplayPort™ input.
| Features |
| Data transfer rate |
32.4 Gbit/s |
| AWG wire size |
28 |
| Connector housing material |
Plastic |
| Jacket material |
Polyvinyl chloride (PVC) |
| Number of shielding layers |
3 |
| Cable shielding |
Aluminum mylar foil |
| Cable material |
Copper |
| Product colour |
Black, Grey |
| Latching connectors |
Yes |
| Maximum refresh rate |
60 Hz |
| Supported video modes |
1080p, 2160p, 4320p |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 4096 x 2160, 7680 x 4320 |
| Maximum resolution |
7680 x 4320 pixels |
| DisplayPort version |
1.4 |
| Connector contacts plating |
Gold |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
DisplayPort |
| Connector 1 |
DisplayPort |
| Cable length |
2 m |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight |
156 g |
| Packaging data |
| Package weight |
210 g |
| Package type |
Box |
| Package height |
39 mm |
| Package depth |
125 mm |
| Package width |
193 mm |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Products per master (outer) case |
18 pc(s) |
| Master (outer) case gross weight |
5.44 kg |
| Master (outer) case height |
235 mm |
| Master (outer) case length |
430 mm |
| Master (outer) case width |
280 mm |
| Country of origin |
Taiwan |
| Master (outer) case GTIN (EAN/UPC) |
24712795082108 |
| Warranty period |
2 year(s) |
| Export Control Classification Number (ECCN) |
EAR99 |
