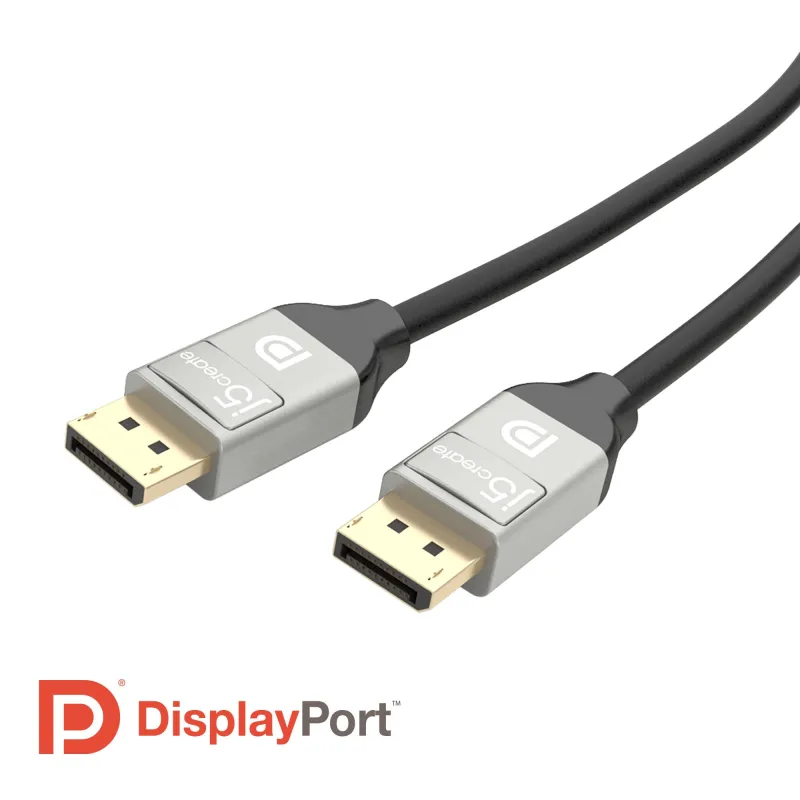

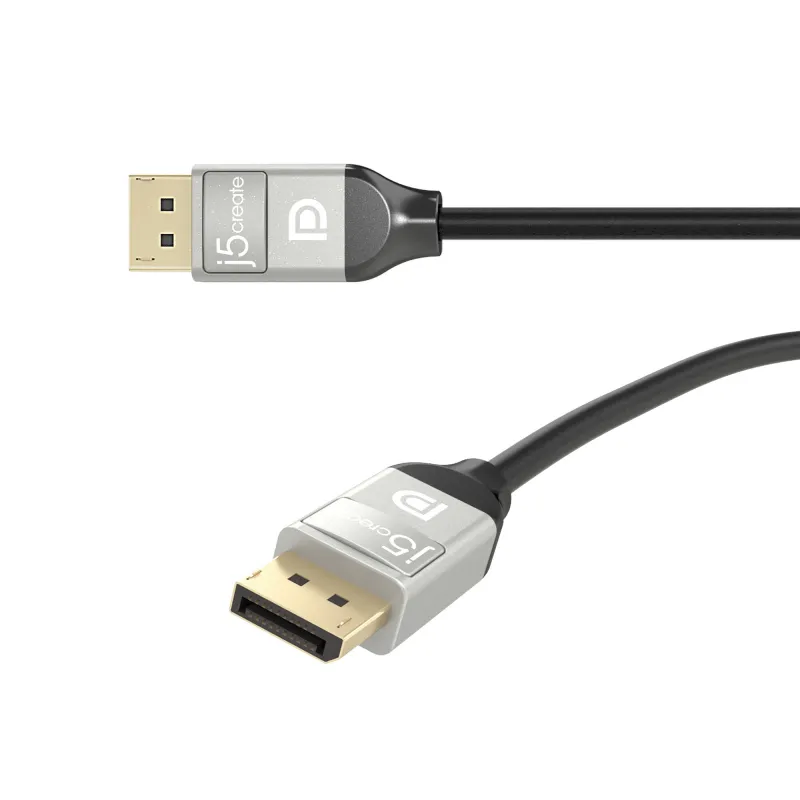

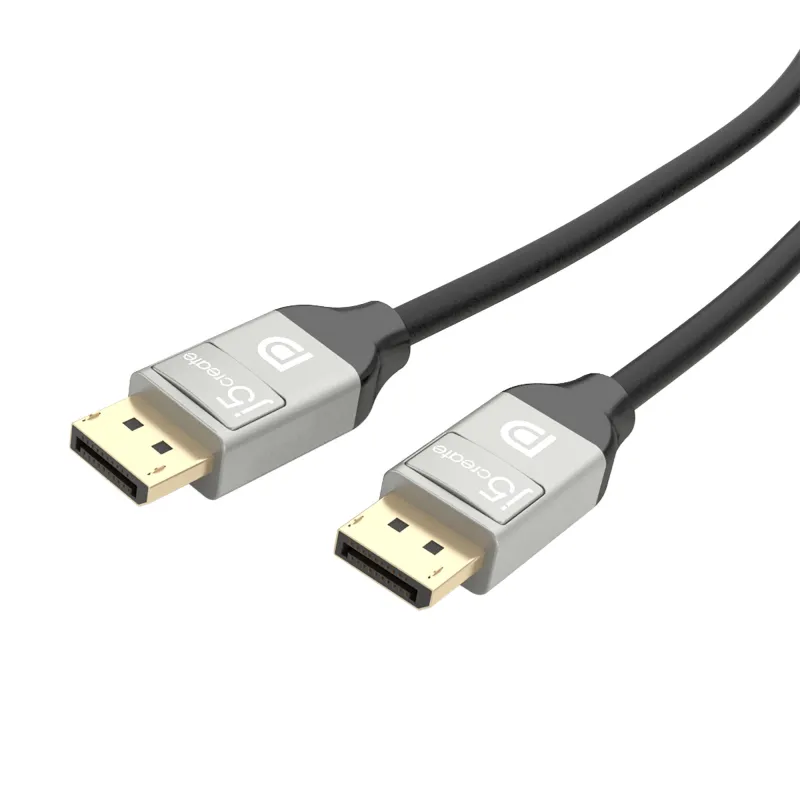

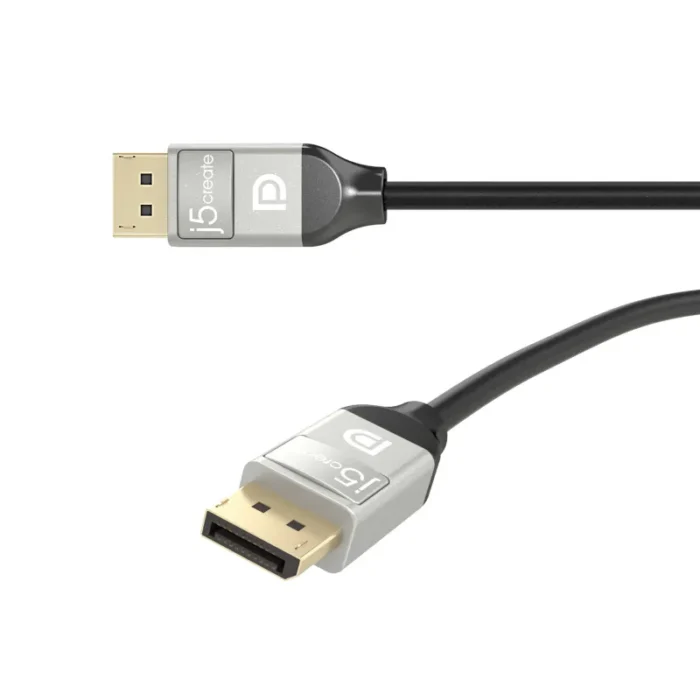

j5create JDC42 4K DisplayPort™ Cable, Black and Grey, 1.8 m
- DisplayPort™ v1.2 – Certified
- Supports transfer speeds up to 4K @ 60 Hz & 3D
- Supports data rate up to 21.6 Gbps
- Supports High Bit Rate 2 (HBR2)
- Backward compatible with DisplayPort™ v1.0/v1.1
- Triple shielded / Copper OFC conductors / Gold ensures maximum protection and insulation
- Latched connectors prevent accidental disconnections
- Length: 6 ft (1.8m)
The JDC42 male-to-male DisplayPort™ cable transmits both audio and video. It is capable of providing performance support for high resolutions up to 4K x 2K @ 60 Hz and a maximum HBR2 data rate of 21.6 Gbps. Perfect for laptops or desktops equipped with DisplayPort™. It can also connect with your DisplayPort™ devices such as a monitor, display, projector or HDTV to your PC/Laptop for video and audio signal transfer. The combination of gold plated connectors, copper OFC conductors and triple shielding provides superior cable performance and guarantees exceptional picture quality and authentic sound.
| Features | |
|---|---|
| Data transfer rate | 21.6 Gbit/s |
| Number of shielding layers | 3 |
| Product colour | Black, Grey |
| Latching connectors | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| DisplayPort version | 1.2 |
| Connector contacts plating | Gold |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | DisplayPort |
| Cable length | 1.8 m |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 95.5 g |
| Packaging data | |
|---|---|
| Package weight | 149.5 g |
| Package type | Box |
| Package height | 25 mm |
| Package depth | 125 mm |
| Package width | 193 mm |
| Packaging content | |
|---|---|
| Batteries included | No |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 18 pc(s) |
| Master (outer) case gross weight | 3.12 kg |
| Master (outer) case height | 190 mm |
| Master (outer) case length | 445 mm |
| Master (outer) case width | 226 mm |
| Products per pallet | 1 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case GTIN (EAN/UPC) | 24712795081576 |
| Warranty period | 2 year(s) |
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case length | 21.2 cm |
| Shipping (inner) case width | 16.5 cm |
| Shipping (inner) case height | 13.7 cm |
| Export Control Classification Number (ECCN) | EAR99 |
| Other features | |
|---|---|
| Technical features | Triple shielded / Copper OFC conductors / Gold ensures maximum protection and insulation, Latched connectors prevent accidental disconnections.Compatible with:Nintendo Switch™Microsoft® Xbox Series X®Microsoft® Xbox One S®Sony® Playstation 5®Sony® Playstation 4® |
| Inner carton dimensions (W x D x H) | 165 x 212 x 137 mm |
| Quantity inner carton | 6 pc(s) |
| Material | Plastic |
| Supported resolutions | 4K @ 60 Hz |
| Quantity per box | 1 pc(s) |
