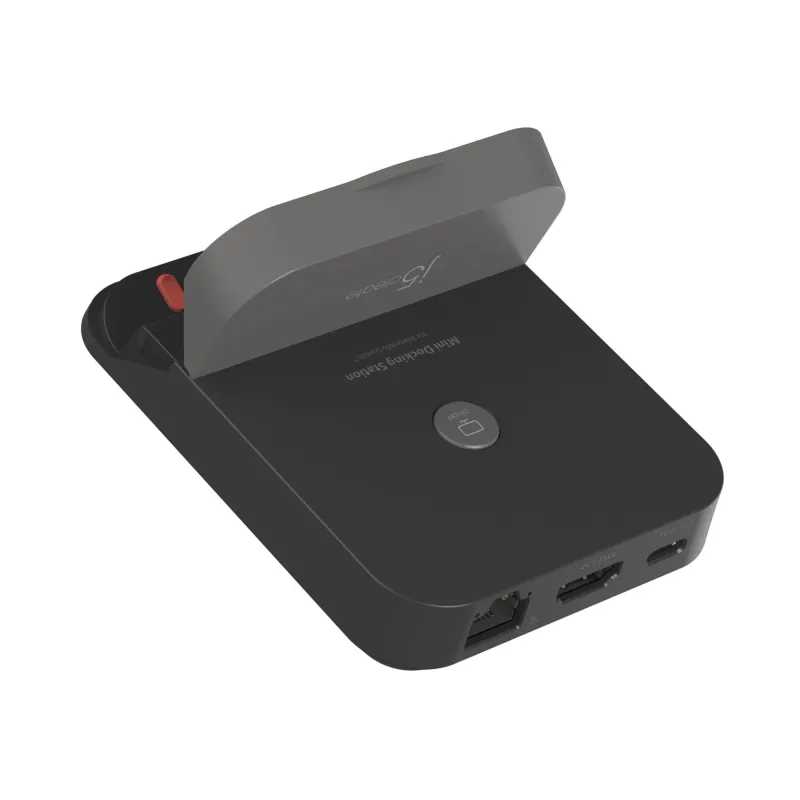

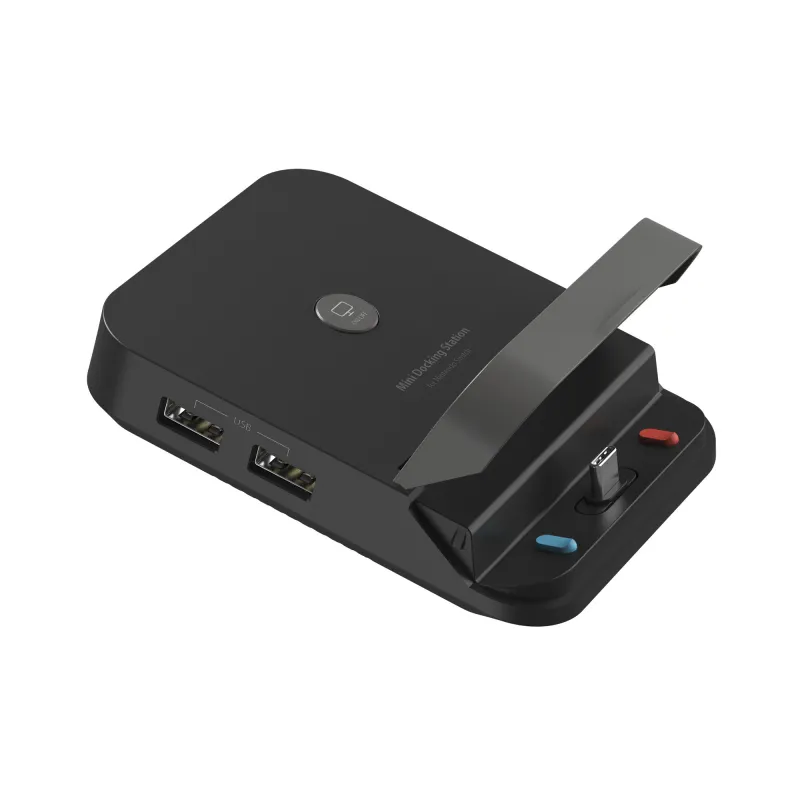

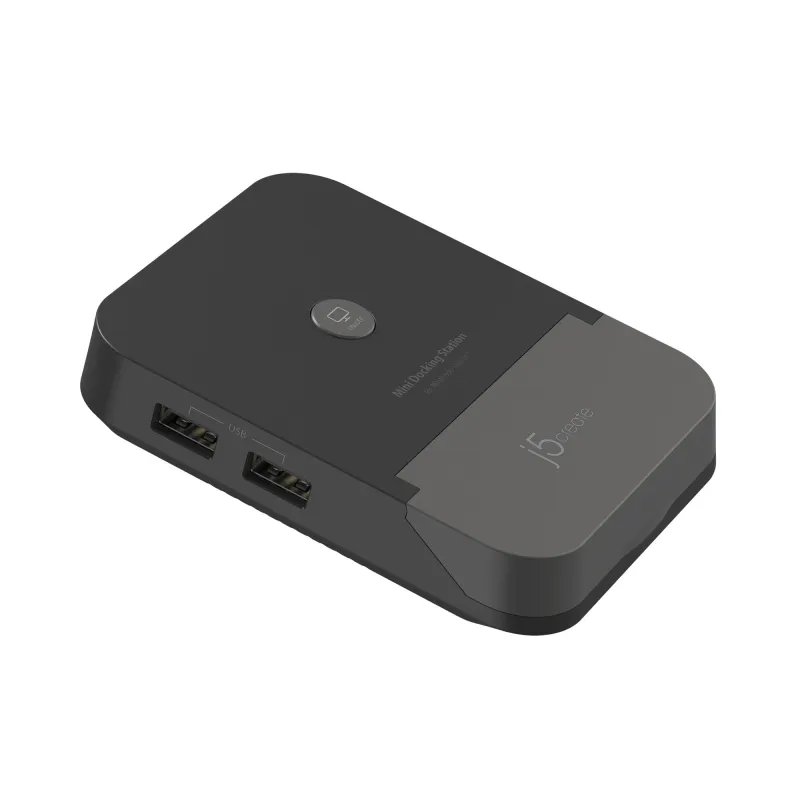

j5create JCD620 Mini Docking Station for Nintendo Switch™, Black
- A dock with a miniature design for Nintendo Switch™
- Supports Nintendo Switch™ gaming mode so you can project your screen to an HDTV
- Equip with a screen turn on/off button
- Comes with the following ports: 1 x 4K HDMI™, 2 x USB™ Type-A, 1 x Gigabit Ethernet, 1 x PD 100W passthrough
- With a cover design for extreme portability
- Plug-and-play, no driver installation is required
Add extra functionality to your Nintendo Switch™ with the JCD620 Mini docking Station. This mini dock allows you to project your console screen to your HDTV. Connect USB™ Type-A with accessories like a gaming controller or a keyboard. It is equipped with a high-speed Gigabit Ethernet port for network stability. The JCD620 allows the Nintendo Switch™ to connect to a HDTV, resolution up to 1080p60Hz. The JCD620 also comes with a button that allows you to toggle between the Nintendo Switch™ display and the TV display when pressed. The docking station provides all these functions while being much smaller than the standard dock for the Nintendo Switch™. It includes a USB-C® Power Delivery port that can be used to charge your console or smartphone when a USB-C® power adapter is connected. The HDMI™ port can also output 4K resolution when a 4K-capable device is connected.
| Performance | |
|---|---|
| Mobile operating systems supported | Android, iOS |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Data transfer rate | 0.48 Gbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| Material | ABS, Plastic |
| Product colour | Black, Grey |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| HDMI | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 135 g |
| Height | 21 mm |
| Depth | 104 mm |
| Width | 80 mm |
| Packaging data | |
|---|---|
| Package height | 25 mm |
| Package depth | 105 mm |
| Package width | 170 mm |
| Quantity | 1 |
| Packaging content | |
|---|---|
| Packaging content | 1 – Mini Docking Station for Nintendo Switch™ (JCD620)1 – Quick Installation Guide (QIG) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -1 – 41 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Warranty period | 2 year(s) |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case net weight | 3.6 kg |
| Shipping (inner) case net weight | 800 g |
| Quantity per pack | 1 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795088650 |
| Products per master (outer) case | 16 pc(s) |
| Master (outer) case width | 255 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case height | 224 mm |
| Products per shipping (inner) case | 4 pc(s) |
| Shipping (inner) case length | 19.9 cm |
| Shipping (inner) case width | 11.8 cm |
| Shipping (inner) case height | 11.7 cm |
| Export Control Classification Number (ECCN) | EAR99 |
